Wired remote controller (RBC-AMT32E)
Operation manual

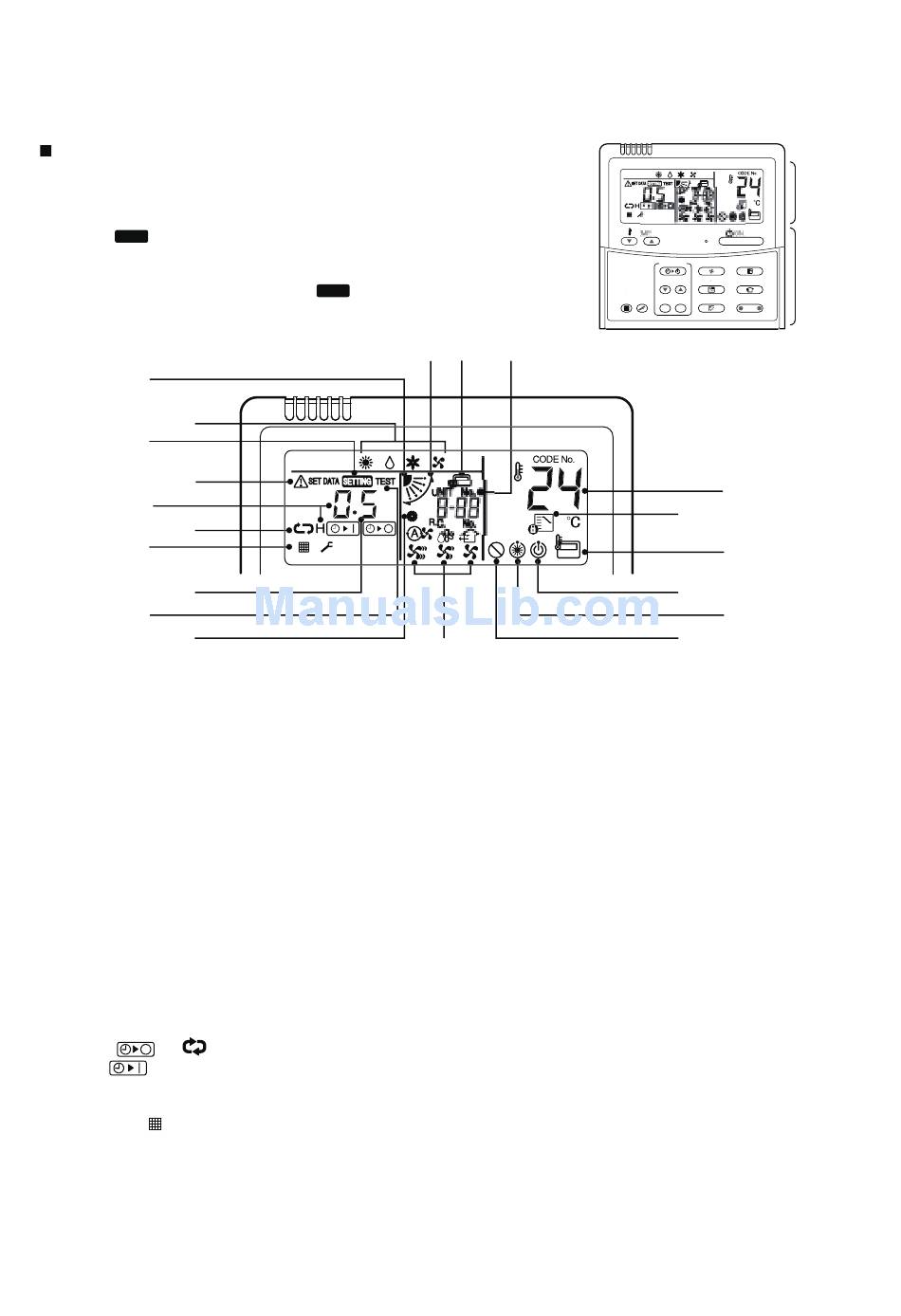

Parts Name of Remote Controller

Display section

In the display example, all indicators are displayed for the explanation.
In reality only, the selected contents are indicated.
• When turning on the main power switch and leak breaker at the first
time,
flashes on the display part of the remote controller.
SETTING
• While this display is flashing, the model is being automatically
confirmed.
Accordingly, wait for a while after
then use the remote controller.
8
2
1
3
4
5
6
15
7
18
1
SETTING display
Displayed during setup of the timer etc.
2
Operation mode select display
The selected operation mode is displayed.
3
CHECK display
Displayed while the protective device works or a
trouble occurs.
4
Timer time display
Time of the timer with H mark is displayed.
(When a trouble occurs, the check code is
displayed.)
5
Timer SET IN setup display
When pushing the Timer SET IN button, the
display of the timer is selected in order of
[OFF]
[ON]
→ No display.
6
Filter display
If "FILTER
" is displayed, clean the air filter.
7
TEST run display
Displayed during a test run.
display has disappeared, and
SETTING
[OFF] repeat OFF timer →
9 20 19
14
8
Louver position display
(4-way Air Discharge Cassette,
2-way Air Discharge Cassette,
1-way Air Discharge Cassette, Under Ceiling
and High Wall Type only (2H. 3H))
Displays louver position.
9
SWING display
Displayed during up/down movement of the louver.
10
Set up temperature display
The selected set up temp. is displayed.
11
Remote controller sensor display
Displayed while the sensor of the remote
controller is used.
12
PRE-HEAT display (Heat-pump model only)
Displayed when the heating operation starts or
defrost operation is carried out.
While this indication is displayed, the indoor fan
stops or the mode enters in LOW.
13
No function display
Displayed if there is no function even if the
button is pushed.
163
TE
OFF
TIMER SET
FAN
MODE
TIME
SAVE
A A
VENT
FILTER
L L
RESET
TEST
SET
CL
SWING/FIX
UNIT LOUVER
This remote controller can control
the operation of Max. 8 indoor units.
10
17
11
16
12
13
Display
section
Operation
section
