Owner's Manual

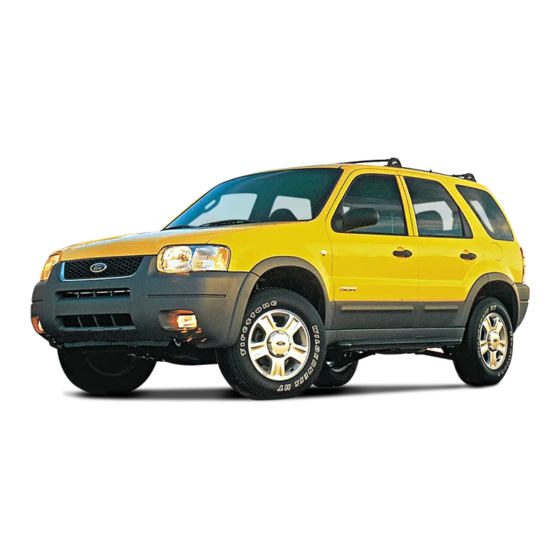

2001 Escape Workshop Manual
SECTION 307-01: Automatic Transaxle/Transmission
REMOVAL
Transaxle
Special Tool(s)
Adapter for 303-290A (Support Leg)
303-290A-03A
Holding Fixture, Flexible Exhaust Pipe
309-001 (T94T-6000-AH) (25-001)
Support Bar, Engine
303-290A
Lifting Bracket, Engine
303-050 (T70P-6000)
Adapters for 303-290
303-290A-01
Engine Lifting Chains (Part of Spreader Bar)
303-D089 (D93P-6001-A3) or equivalent
Retainer, Torque Converter
307-346 (T97T-7902-A)
1. Remove the battery and the battery tray. For additional information, refer to
2. Disconnect the breather tube and mass air flow (MAF) sensor.
3. Remove the intake tube and air cleaner cover.
4. Remove the air cleaner assembly.
http://www.fordtechservice.dealerconnection.com/pubs/content/~WS1K/~MUS~LEN/19/S...
Section
414-01.
Page 1 of 10
2001 Escape Workshop Manual
Procedure revision date: 04/04/2001
1/15/2009
Advertisement
Table of Contents
Related Manuals for Ford Escape 2001
Summary of Contents for Ford Escape 2001
- Page 1 2001 Escape Workshop Manual Page 1 of 10 SECTION 307-01: Automatic Transaxle/Transmission 2001 Escape Workshop Manual REMOVAL Procedure revision date: 04/04/2001 Transaxle Special Tool(s) Adapter for 303-290A (Support Leg) 303-290A-03A Holding Fixture, Flexible Exhaust Pipe 309-001 (T94T-6000-AH) (25-001) Support Bar, Engine 303-290A Lifting Bracket, Engine 303-050 (T70P-6000)
- Page 2 2001 Escape Workshop Manual Page 2 of 10 5. Disconnect the transmission range (TR) sensor. 6. Disconnect the HO2S sensor. 7. Disconnect the transaxle harness connector and remove the wire harness bracket nut. 8. Position the wire harness bracket out of the way. 9.
- Page 3 2001 Escape Workshop Manual Page 3 of 10 11. Disconnect the shift cable. 12. Disconnect the wire harness from the shift cable bracket to gain access to the bracket bolts. 13. Remove the shift cable and bracket, and position out of the way. 14.
- Page 4 2001 Escape Workshop Manual Page 4 of 10 17. Install the special tools. 18. Remove both electrical connectors from the upper intake to gain access to the engine lifting bracket. 19. Install the special tools. 20. Install the special tools. 21.
- Page 5 2001 Escape Workshop Manual Page 5 of 10 23. Remove the bolts, and remove the rear transaxle mount. 24. Remove the RH engine mount bolt. 25. NOTE: It is necessary to raise the engine a couple of inches in order to remove the transaxle. Using the special tool raise the engine.
- Page 6 2001 Escape Workshop Manual Page 6 of 10 30. Remove the cross brace. 31. Disconnect the HO2S sensor connector and unclip the two clips from the oil pan bolt studs. 32. Remove the exhaust pipe. 1. Install the special tool. 2.
- Page 7 2001 Escape Workshop Manual Page 7 of 10 38. Remove the cross brace dampener. 39. Remove the cross brace. 40. Remove the bolts from the transfer case unit. 41. Remove the transfer case bolt and remove the transfer case unit. 42.
- Page 8 2001 Escape Workshop Manual Page 8 of 10 46. Remove the four flexplate nuts. 47. Remove the fluid cooler tube. 1. Disconnect the output shaft speed (OSS) sensor. 2. Disconnect the turbine shaft speed (TSS) sensor (white connector). 3. Remove the bolt. 4.
- Page 9 2001 Escape Workshop Manual Page 9 of 10 53. Remove the bolt. 54. Remove the bolt. CAUTION: The torque converter is heavy. Install the special tool before lowering the transaxle. Move the transaxle back far enough to install the special tool. 56. Lower the transaxle from the engine compartment. 57. If installing a new or remanufactured transaxle, remove the roll restrictor bracket. ...
- Page 10 2001 Escape Workshop Manual Page 10 of 10 http://www.fordtechservice.dealerconnection.com/pubs/content/~WS1K/~MUS~LEN/19/S... 1/15/2009...
