KENWOOD
A
GARMIN®

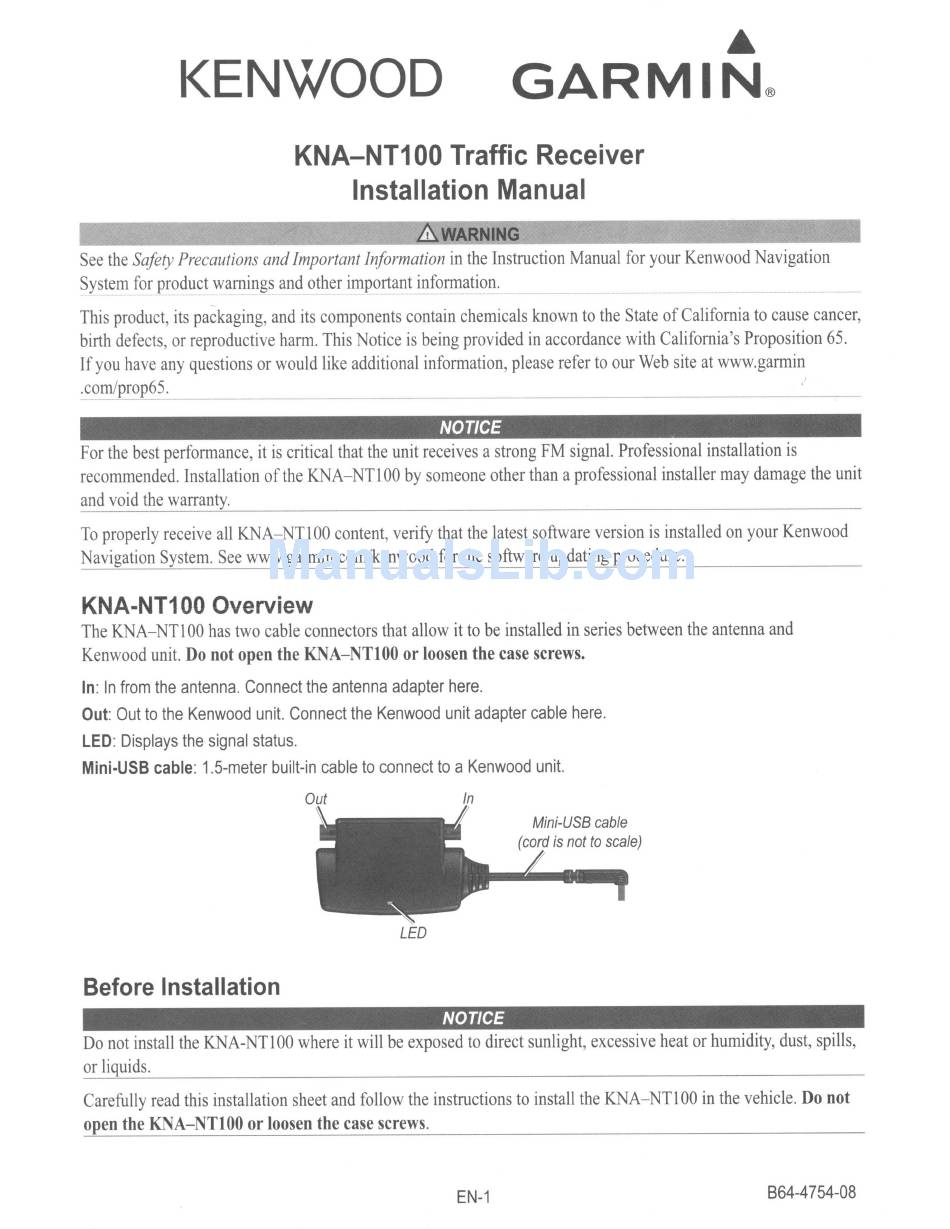

KNA-NT100 Traffic Receiver
Installation Manual
!
WARNING
See the Safety Precautions and Important Information in the Instruction Manual for your Kenwood Navigation
System for product warnings and other important information.
This product, its packaging, and its components contain chemicals known to the State of California to cause cancer,
birth defects, or reproductive harm. This Notice is being provided in accordance with California's Proposition 65.
If you have any questions or would like additional information, please refer to our Web site at www.garmin
.com/prop65.
NOTICE
For the best performance, it is critical that the unit receives a strong FM signal. Professional installation is
recommended. Installation of the KNA-NT 100 by someone other than a professional installer may damage the unit
and void the warranty.
To properly receive all KNA-NT 100 content, verify that the latest software version is installed on your Kenwood
Navigation System. See www.garmin.com/kenwood for the software updating procedure.
KNA-NT100 Overview
The KNA-NTI 00 has two cable connectors that allow it to be installed in series between the antenna and
Kenwood unit. Do not open the KNA-NTIOO or loosen the case screws.
In: In from the antenna. Connect the antenna adapter here.
Out: Out to the Kenwood unit. Connect the Kenwood unit adapter cable here.
LED: Displays the signal status.
Mini-USB cable: 1.5-meter built-in cable to connect to a Kenwood unit.
Out
In
Before Installation
LED
NOTICE
Do not install the KNA-NTIOO where it will be exposed to direct sunlight, excessive heat or humidity, dust, spills,
or liquids.
Carefully read this installation sheet and follow the instructions to install the KNA-NTIOO in the vehicle. Do not
open the KNA-NTIOO or loosen the case screws.
EN-1
864-4754-08
