Operating Instructions and Parts Manual

Table Saw

Model: JWTS-10
WMH TOOL GROUP
2420 Vantage Drive
Elgin, Illinois 60124
Part No. M-708100
Ph.: 800-274-6848
Revision B2 9/06
www.wmhtoolgroup.com
Copyright © WMH Tool Group

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JWTS-10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jet JWTS-10

  • Page 1: Table Saw

    This Manual is Bookmarked Operating Instructions and Parts Manual Table Saw Model: JWTS-10 WMH TOOL GROUP 2420 Vantage Drive Elgin, Illinois 60124 Part No. M-708100 Ph.: 800-274-6848 Revision B2 9/06 www.wmhtoolgroup.com Copyright © WMH Tool Group...
  • Page 2: Warranty And Service

    WARRANTY AND SERVICE WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
  • Page 3: Table Of Contents

    Table of Contents Table of Contents ...3 Warnings ...4 Assembly...11 Unpacking and Cleanup ...11 Stand Assembly ...11 Assembling the Saw to the Stand ...12 Blade Tilt Pointer...12 Handwheels ...13 Extension Wings ...13 Rear Guide Rail...13 Front Guide Rail ...14 Support Rod...14 Switch Bracket ...15...
  • Page 4: Warnings

    4. This Table Saw is designed and intended for use by properly trained and experienced personnel only. If you are not familiar with the proper and safe operation of a Table Saw, do not use until proper training and knowledge have been obtained.
  • Page 5 The right tool will do the job better and safer. 28. Use recommended accessories; improper accessories may be hazardous. 29. Maintain tools with care. Keep saw blades sharp and clean for the best and safest performance. Follow instructions for lubricating and changing accessories.
  • Page 6: Protection Tips From Kickback

    The most common accidents among table saw users, according to statistics, can be linked to kickback, the high-speed expulsion of material from the table that can strike the operator. Kickback can also result in operator’s hands being pulled into the blade.
  • Page 7: Specifications

    Features Specifications Model Number ... JWTS-10 Stock Number... 708100 Blade Diameter...10" Arbor Diameter ...5/8" Maximum Depth of Cut ...3-1/8" Maximum Rip to Right of Blade...30" Maximum Rip to Left of Blade ...12" Maximum Depth of Cut at 45° ...2-1/8" Table in Front of Blade at Maximum Cut (in) ... 10-1/2 Maximum Width of Dado...
  • Page 8: Definitions And Terminology

    Definitions And Terminology Arbor: Metal shaft that connects the drive mechanism to the blade. Bevel Edge Cut: Tilt of the saw arbor and blade between 0° and 45° to perform an angled cutting operation. Blade Guard: Mechanism mounted over the saw blade to prevent accidental contact with the cutting edge.
  • Page 9: Shipping Contents

    Shipping Contents Carton Contents 1 ea Table Saw (not shown) 1 ea Front Rail – Long (A) 1 ea Front Rail – Short (B) 1 ea Extension Wing – Left (C) 1 ea Extension Wing – Right (D) 1 ea...
  • Page 10: Tools Included For Assembly

    Hardware The shipping carton includes two hardware bags with parts for assembling the JWTS-10 Table Saw. Hardware bag JWTS10-HP contains six packets of parts and JWTS10-SHP contains three packets of parts. If either bag is missing the proper number of packets, contact customer service (phone number on cover and back pages).
  • Page 11: Assembly

    Keep the saw table upside down (Figure 1) and place on a two-by-four or similar piece of wood under the rear of the saw. This will help when picking up the table again. Do not discard the carton of packing material until the saw is assembled and is running satisfactorily.
  • Page 12: Assembling The Saw To The Stand

    Warning label (B) on the table saw. Line up the holes in the top plates of the stand with the holes in the table saw (C) so that the front of the stand is flush with the front of the saw.
  • Page 13: Handwheels

    Handwheels Referring to Figure 6: The JWTS-10 Table Saw comes equipped with two handwheels which look identical except for the mounting holes as follows: 1. On the front of the table saw slide the bushing (C) onto shaft (D) followed by the handwheel...
  • Page 14: Front Guide Rail

    Front Guide Rail Referring to Figure 9: Required Fastening Hardware (see also inset): A – 6 ea – Square Head Bolt (M8) B – 6 ea – Lock Washer (M8) C – 6 ea – Hex Nuts (M8) Required Tools: –...
  • Page 15: Switch Bracket

    3. Next bring the straight edge out to the highest point on the outside edge of the wing at the front (A) of the saw. You may have to grab the outside edge of the extension wing and pull up or push down to level.
  • Page 16: Installing/Replacing The Blade

    Failure to comply cay cause serious injury! 1. Using the handwheels, raise the blade arbor fully and lock the saw at zero degrees by tightening the lock knob in the middle of the hand wheel. Referring to Figure 14: 2.
  • Page 17: Table Insert

    (G) with a 10mm socket. Calibrating the Rip Fence Scale 1. Attach the rip fence to the table (as described in the previous section) to the right of the saw blade, but do not lower the handle to clamp the fence to the table.
  • Page 18: Miter Gauge

    This fence is positioned by lifting up the lock handle (A, Fig. 19) and sliding to the desired location. "Fine-tuning" is accomplished by pushing the micro-adjust knob in (B, Fig. 19) and at the same time turning it (C, Fig. 19) until the exact position is read on the scale.
  • Page 19: Grounding Instructions

    Electrical Connections The JWTS-10 table saw is rated at 115/230V and comes from the factory prewired at 115V. The table saw comes with a plug designed for use on a circuit with a grounded outlet that looks like the one pictured in A.
  • Page 20: Blade Raising And Tilt Mechanism

    To tilt the saw blade, turn the lock handle (C) counterclockwise to loosen, turn the handwheel (D) on the right side of the saw until the desired angle is obtained, then tighten the lock handle (C) by turning clockwise.
  • Page 21: Table Saws

    Bevel ripping cuts should always be made with the fence on the right side of the saw blade so that the blade tilts away from the fence and minimizes the possibility of the work binding and...
  • Page 22: Rip Sawing

    Rip Sawing Ripping is where the work piece is fed with the grain into the saw blade using the fence as a guide and a positioning device to ensure the desired width of cut (Figure 27). Figure 27 Before starting a ripping cut, be sure the fence is clamped securely and aligned properly.
  • Page 23: Resawing

    Figure 31 Crosscutting Crosscutting is where the workpiece is fed cross grain into the saw blade using the miter gauge to support and position the workpiece (Figure 31). Figure 32 Crosscutting should never be done freehand nor...
  • Page 24: Align-A-Rip

    Exposing the blade above this point can be hazardous. Align-a-rip The yellow align-a-rip pad on the saw table is used for creating a mark that lines up the workpiece with the saw blade. After the first workpiece is cut with the miter gauge, turn the saw off and pull the miter gauge together with the workpiece back.
  • Page 25: Safety Devices

    Figure 38, is necessary for this type of operation. A dado insert (stock # 708098) designed to fit the JWTS-10 Table Saw can be ordered from your dealer or WMH Tool Group. Do not use the standard table insert for dadoing operations.
  • Page 26: Filler Piece

    Filler Piece A filler piece (Figure 40) is necessary for narrow ripping and permits the blade guard to remain on the machine. It also provides space for the safe use of a push stick. Figure 40 – Filler Piece Push Stick & Push Block The use of a push block or push stick provides an added level of safety for the operator.
  • Page 27: Maintenance

    Always disconnect power to the machine before performing maintenance. Failure to do this may result in serious personal injury. Cleaning Clean the JWTS-10 according to the schedule below to ensure maximum performance. Note—The following maintenance schedule assumes the saw is being used every day.
  • Page 28: Troubleshooting

    Inspect keys and setscrews. Replace or tighten if necessary. Tighten fan or shim cover. Replace V-belt. Replace saw blade. Adjust table parallel to the blade. Adjust fence parallel to the blade. Raise the front rail. Adjust the 90 degree stop bolt.
  • Page 29: Parts

    Parts JWTS-10 Table and Cabinet Parts List Index No. Part No. Description 1...JWTS10-301 ... Table ..1 2...JWTS10-302 ... Extension Wing, Left ..1 3...JWTS10-303 ... Extension Wing, Right..1 4...JWTS10-304 ... Guide Line Plate ..1 5...TS-2285121 ...
  • Page 30 JWTS-10 Table and Cabinet Exploded View...

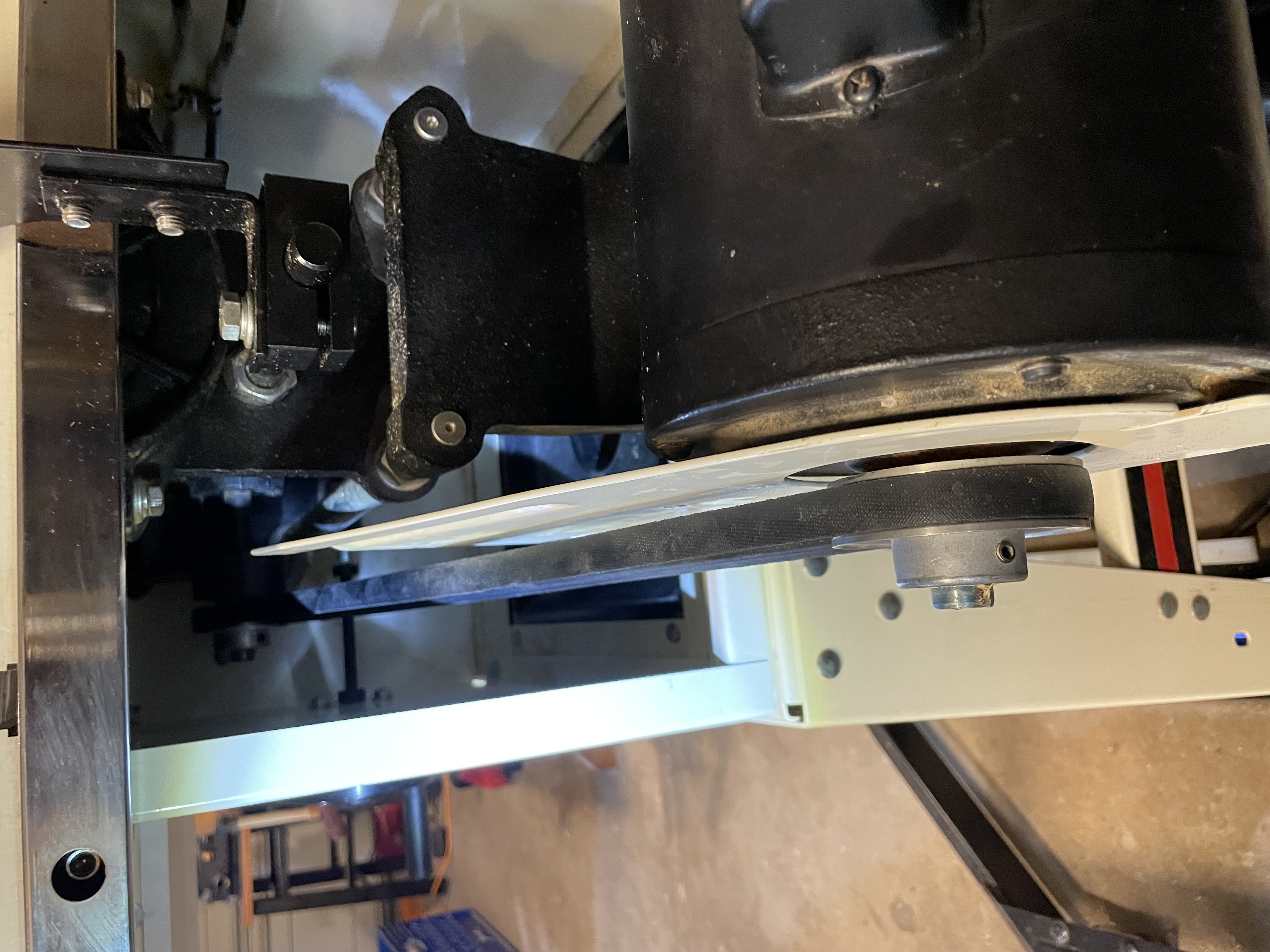

  • Page 31 Motor and Trunnion Assembly Parts List Index No. Part No. Description Size 1...VB-A31 ... Belt... A-31 ... 1 2...JWTS10-102 ... Belt... 125J ... 1 3...TS-2342102 ... Nylon Insert Lock Nut... M10-1.25P... 1 4...TS-1550071 ... Flat Washer ... M10 ... 1 5...JWTS10-105 ...
  • Page 32: Motor And Trunnion Assembly Parts List

    Motor and Trunnion Assembly Parts List Index No. Part No. Description 55 ...JWTS10-155 ... Wave Washer ... WW-16 ... 1 56 ...TS-1532042 ... Pan Head Screw... M4x12 ... 2 57 ...JWTS10-157 ... Scale ..1 58 ...TS-1540031 ... Hex Nut ... M5 ... 2 59 ...JWTS10-159 ...
  • Page 33: Motor And Trunnion Assembly Exploded View

    Motor and Trunnion Assembly Exploded View...
  • Page 34 Fence and Rail Parts List Index No. Part No. Description Size ...JWTS10-FA ... Fence Assembly (#1 thru #39) ..1 1...JWTS10-201 ... Handle Cap ..1 2...JWTS10-202 ... Micro Adjustment Handle ..1 3...JWTS10-203 ... Spring..1 4...JWTS10-204 ...
  • Page 35 Fence and Rail Parts List Index No. Part No. Description Size 53 ...JWTS10-253 ... Rear Rail, Long..1 54 ...TS-1550041 ... Flat Washer ... M6 ... 2 55 ...JWTS10-255 ... Support Rod ..1 56 ...TS-1482021 ... Hex Cap Screw... M6x12 ... 1 57 ...TS-1550041 ...
  • Page 36: Stand Assembly Parts List And Exploded View

    Stand Assembly Parts List and Exploded View Index No. Part No. Description Size 1...TS-1540061 ... Hex Nut ** ... M8 ... 28 2...JWTS10-402 ... Leg ..2 3...JWTS10-403 ... Top Plate, Short..2 4...JWTS10-404 ... Support Plate, Short..2 5...JWTS10-405 ...
  • Page 37: Wiring Diagram

    Wiring Diagram ELECTRICAL SCHEMATIC - 115V ELECTRICAL SCHEMATIC - 230V BLACK BLACK WHITE WHITE GREEN GREEN BLACK BLACK WHITE WHITE GREEN GREEN GROUND 200MFD 250 VAC 30MFD 350 VAC YELLOW BLACK WHITE 200MFD 250 VAC 30MFD 350 VAC YELLOW BLACK WHITE...
  • Page 38: Ordering Replacement Parts

    Ordering Replacement Parts To order parts or reach our service department, call 1-800-274-6848 between 7:30am and 5:30pm (CST), Monday through Friday. Having the Model Number and Serial Number of your machine available when you call will allow us to serve you quickly and accurately.
  • Page 39 Notes...
  • Page 40 WMH Tool Group 2420 Vantage Drive Elgin, Illinois 60124 Phone: 800-274-6848 www.wmhtoolgroup.com...
