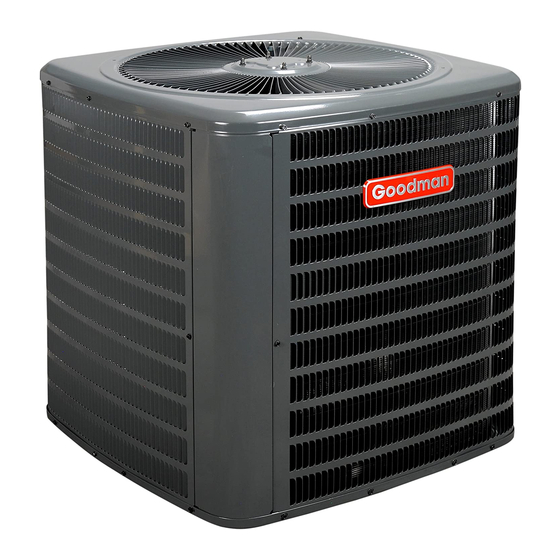

Goodman CONDENSING UNIT Installation & Service Reference

CONDENSING UNIT
HEAT PUMP
INSTALLATION & SERVICE REFERENCE
Important Safety Instructions
The following symbols and labels are used throughout this
manual to indicate immediate or potential safety hazards. It is
the owner's and installer's responsibility to read and comply
with all safety information and instructions accompanying these
symbols. Failure to heed safety information increases the risk
of personal injury, property damage, and/or product damage.
WARNING
HIGH VOLTAGE!
Disconnect ALL power before servicing.
Multiple power sources may be present.
Failure to do so may cause property damage,
personal injury or death.
Installation and repair of this unit should be performed
ONLY by individuals meeting the requirements of an
"entry level technician" as specified by the
Conditioning, Heating and Refrigeration Institute (AHRI)
Attempting to install or repair this unit without such
background may result in product damage, personal
injury or death.
CAUTION
Scroll equipped units should never be used to evacuate
the air conditioning system. Vacuums this low can cause
internal electrical arcing resulting in a damaged or failed
compressor.
Important Note to the Owner regarding Prod-
uct Warranty
Your warranty certificate is supplied as a separate document
with the unit installed by your contractor. Read the limited
warranty certificate carefully to determine what is and is not
covered and keep the warranty certificate in a safe place. If you
are unable to locate the warranty certificate please contact
your installing contractor or contact customer service (877-
254-4729) to obtain a copy.
To receive the 10-Year Parts Limited Warranty for Amana
branded products, online registration must be completed within
60 days of installation. Online registration is not required in
California or Quebec. Full warranty details available at
www.amana-hac.com.
© 2005-2010 Goodman Manufacturing Company, L.P.
5151 San Felipe, Suite 500, Houston, TX 77056
www.goodmanmfg.com -or- www.amana-hac.com
P/N: IO-259L
To receive the 10-Year Parts Limited Warranty for Goodman
branded products, online registration must be completed within
60 days of installation. Online registration is not required in
California or Quebec. Full warranty details available at
www.goodmanmfg.com.
IMPORTANT: To register your Goodman brand unit, go to
www.goodmanmfg.com. Click on the word "Warranty" located
on the left side of the home page. Next, click on the word
"Product Registration" located on the left side of the Warranty
page and complete the forms in the manner indicated on the
Product Registration page.
To register your Amana brand unit, go to www.amana-hac.com.
Click on the word "Warranty" located on the top right of the
home page. Next, click on the word "Product Registration"
located on the left side of the Warranty page and complete the
forms in the manner indicated on the Product Registration page.
Product limited warranty certificates for models currently in
production can be viewed at www.goodmanmfg.com or
Air
www.amana-hac.com. If your model is not currently in pro-
.
duction or does not appear on the website, please contact
your installing contractor or contact customer service (877-
254-4729) to obtain a copy of your warranty certificate.
Each product overview page contains a Product Warranty link;
by clicking on it you will be able to view the limited warranty
coverage for that specific product. To view warranty registra-
tion information, click on the Product Warranty text on the left
navigation panel on the home page of each website. The Online
Product Registration pages are located in this same section.

Shipping Inspection

Always keep the unit upright; laying the unit on its side or top
may cause equipment damage. Shipping damage, and subse-
quent investigation is the responsibility of the carrier. Verify
the model number, specifications, electrical characteristics,
and accessories are correct prior to installation. The distribu-
tor or manufacturer will not accept claims from dealers for trans-
portation damage or installation of incorrectly shipped units.
Codes & Regulations
This product is designed and manufactured to comply with
national codes. Installation in accordance with such codes and/
or prevailing local codes/regulations is the responsibility of the
installer. The manufacturer assumes no responsibility for equip-
ment installed in violation of any codes or regulations.
The United States Environmental Protection Agency (EPA)
has issued various regulations regarding the introduc-
tion and disposal of refrigerants. Failure to follow these
regulations may harm the environment and can lead to
the imposition of substantial fines. Should you have any
questions please contact the local office of the EPA.
Date: October 2010
