Brave VH0622 Owner/Operator And Safety Manual

22 and 26 ton vertical / horizontal log splitters
Hide thumbs
Table of Contents

Advertisement

Quick Links

B B r r a a v v e e 2 2 2 2 a a n n d d 2 2 6 6 T T o o n n
Vertical / Horizontal
Log Splitters
M M o o d d e e l l V V H H 0 0 6 6 2 2 2 2
M M o o d d e e l l V V H H 0 0 6 6 2 2 6 6

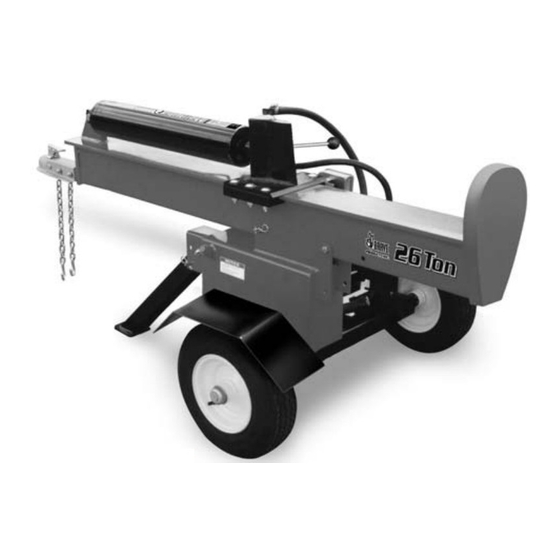

Photos show Model VH0626
Owner / Operator
and Safety Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VH0622 and is the answer not in the manual?

Questions and answers

Related Manuals for Brave VH0622

Summary of Contents for Brave VH0622

  • Page 1 B B r r a a v v e e 2 2 2 2 a a n n d d 2 2 6 6 T T o o n n Vertical / Horizontal Log Splitters M M o o d d e e l l V V H H 0 0 6 6 2 2 2 2 M M o o d d e e l l V V H H 0 0 6 6 2 2 6 6 Photos show Model VH0626 Owner / Operator...
  • Page 2 ❏ ❏ Make sure the trailer hitch of the towing vehicle is equipped with a 2 inch ball. NOTE: Brave Products reserves the right to make technical changes for product improvement. This manual may contain illustrations and photographs, for demonstration purposes, which slightly deviate from the actual product design.

  • Page 3: Table Of Contents

    Warranty Card............43 800-350-8739 Brave Products, Inc.

  • Page 4: Introduction

    With 22 or 26 tons of splitting force, a 14 second cycle time, and a rugged, horizontal shaft engine, the VH0622 or VH0626 will handle most of your log splitting needs. An attractive, powder-coated finish provides the finest protection available, and Brave’s rigid, quality-control and component...

  • Page 5: Safety

    If any doubt or question arises about the correct or safe method of performing any- thing found in this or other Brave Products’ manuals, contact your Brave Prod- ucts’ dealer or call the Sales and Service representatives at our main head- quarters.

  • Page 6: Personal Protection

    Safety DO NOT proceed if any doubt arises about the correct or safe method of performing any- thing found in this or other Brave Products’ manuals. Seek out expert assistance from a qualified person before continuing. CALIFORNIA PROPOSITION 65 Engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

  • Page 7: Operating Safety

    Only use your hand to operate the control lever. NEVER use your foot, knee, a rope, or any other extension device. Log Splitting Safety ✔ Always keep your fingers away from any cracks that open in the log during the splitting operation. 800-350-8739 Brave Products, Inc.

  • Page 8: Maintenance And Repair

    NEVER exceed 35 m.p.h. when towing your log splitter. Obey all state and local regulations when towing on state and local roads and highways. Adjust your speed for terrain and conditions, as needed. Be extra cautious when tow- ing over rough terrain, especially over a railroad crossing. Brave Products, Inc. 800-350-8739...

  • Page 9: Refueling

    (if any). If a spark arrester is used, it should be maintained in effective working order by the owner and/or operator. 800-350-8739 Brave Products, Inc.

  • Page 10: Assembly Instructions

    • Two 3/4” open end wrenches • Funnel • Pliers • Band Cutters Shipping List The following chart contains the list of parts that should be shipped as part of the VH0622 and VH0626 Log Splitter. Description Description Base Unit (engine)

  • Page 11: Unpacking The Crate

    “Shipping List” section provides a complete list of all the parts shipped with your log splitter. If any parts are missing, call Brave Products at (800) 350-8739. NOTE: The contents of the cardboard box includes the hitch assembly, valve handle, two safety chains, and one bag of hardware, as shown.

  • Page 12: Assembly Procedure

    3. Place the front leg in the 45 degree down position and install the hitch pin through the lower front hole of the base unit and front leg. 4. Install the hair pin clip through the hitch pin. Brave Products, Inc. 800-350-8739...
  • Page 13 Install and tighten a 1/2-13 lock- nut. NOTE: To prevent the rail from binding, do not overtighten the locknut. This connection serves as the pivot point for the log splitter from the vertical to horizontal position. 800-350-8739 Brave Products, Inc.
  • Page 14 1/2 x 3 inch bolt (A). Install and tighten the locknut. Insert the end of quick link into front tube of the rail assembly and insert a 1/2 x 3 inch bolt (B) through link and hitch. Install and tighten the locknut. Brave Products, Inc. 800-350-8739...
  • Page 15 16. Attach the control lever to the valve spool using a 1/4” x 1” long clevis pin. Secure the clevis pin with a cotter pin (bend the ends of the cotter pin to hold it in place). 800-350-8739 Brave Products, Inc.
  • Page 16 The fenders are interchangeable (left or right). Position the fender with the bolts in the middle and front holes. This should place the fender over the tire with equal spacing in the front and back. Brave Products, Inc. 800-350-8739...
  • Page 17 Assembly Instructions 21. The log splitter is now completely assembled. Follow the “Start-Up Procedure”, in the following section, which adds oil to the engine and hydraulic tank before trying to start the engine. Model VH0622 Model VH0626 800-350-8739 Brave Products, Inc.

  • Page 18: Start-Up Procedure

    Be careful not to spill fuel when filling the engine. If fuel should spill, quickly wipe off and allow the excess fuel to evaporate before continu- ing. Fuel and fuel vapors are highly flammable and can cause personal injury or even death when ignited. Brave Products, Inc. 800-350-8739...
  • Page 19 Cycle the log splitter several times. 10. Again, check the fluid level in the hydraulic tank and add oil as needed. Replace and tighten the fill cap. 11. Your log splitter is now ready to use. 800-350-8739 Brave Products, Inc.

  • Page 20: Towing

    Failure to securely attach the log splitter can cause loss of control of the vehicle or the log splitter being separated from the towing vehicle, resulting in serious injury or death. Brave Products, Inc. 800-350-8739...

  • Page 21: Operation

    If any doubt or question arises about the correct or safe method of per- forming anything found in this or other Brave Products’ manuals, con- tact your Brave Products’ dealer or call the Sales and Service representatives at our main headquarters. Proper care is your responsibility.
  • Page 22 WARNING Do not place your hands on the ends of the log when loading the log splitter. This is a very UNSAFE method and could result in injury to your hands. Brave Products, Inc. 800-350-8739...
  • Page 23 Never use your hip or any extension device to operate the valve control handle. WARNING Do not operate the log splitter by reaching across the rail. This is a very UNSAFE method which could cause personal injury or even death. 800-350-8739 Brave Products, Inc.
  • Page 24 (stop the wedge from retracting) and carefully remove the log from the wedge. Allowing the log to remain attached to the wedge when it is fully retracted could lead to possible injury and/or damage to the log splitter. Brave Products, Inc. 800-350-8739...
  • Page 25 Move the log under the splitting wedge keeping your hands on the sides of the log near the middle of the block. Cen- ter the log making sure that the sawed end is sitting on the large plate (base plate). 800-350-8739 Brave Products, Inc.
  • Page 26 If you must, hold the log in the middle of the block. Remove your hand immediately when the wedge engages the log. Never use your hip or any extension device to operate the valve control handle. Brave Products, Inc. 800-350-8739...
  • Page 27 DO NOT reach forward to grab the split wood. 3. Once the wedge reaches its full forward downward travel, push UP on the control lever to retract the cylinder. 800-350-8739 Brave Products, Inc.
  • Page 28 (stop the wedge from retracting) and carefully remove the log from the wedge. Allowing the log to remain attached to the wedge when it is fully retracted could lead to possible injury and/or damage to the log splitter. Brave Products, Inc. 800-350-8739...

  • Page 29: Inspection And Maintenance

    Always replace frayed, kinked, or cracked hoses and/or other damaged hydraulic com- ponents with Brave Products authorized parts and components specified in the “Parts” section of this manual. Replacement parts from secondary suppliers (not original Brave replacement parts) can lead to product damage and/or personal injury, and will void the warranty.

  • Page 30: Hydraulic Oil Change

    Inspection and Maintenance Hydraulic Oil Change Brave Products recommends an oil and filter change every 100 hours of operation. Refer to the “Specifications” section in this manual for the type and quantity of oil. Important Notice Never run the log splitter unless the hydraulic oil tank is full.
  • Page 31 Start the engine and cycle the cylinder several times. c. Retract the cylinder and shut off the engine. d. Recheck the hydraulic tank to make sure oil is filled within one inch from the top of the tank. 800-350-8739 Brave Products, Inc.

  • Page 32: Specifications

    Shipping Weight ........590 lbs. or 610 lbs. Model VH0622 only. Model VH0626 only.

  • Page 33: Troubleshooting

    The following section details procedures for checking your log splitter, should you encounter a malfunction. Brave Products, Inc. recommends that you do not attempt to make repairs to the log splitter. In the long run, it is better to take your log splitter to a servicing lawn and garden dealer for repairs.

  • Page 34: Decals

    Make sure all decals are attached to the log splitter and/or engine and are legible at all times. If you are missing a decal or one is not legible, call Brave Products at 800-350-8739 for a replacement. Brave Products, Inc.
  • Page 35 BR002621 Decal, Flag 5 (NS) BR002653 Decal, Maximum Speed 6 (NS) BR002622 Decal, 22 Ton Logo 7 (NS) BR002624 Decal, 26 Ton Logo 8 (NS) BR002559 Decal, Proper Machine Loading NS = Not Shown VH0622. VH0626. 800-350-8739 Brave Products, Inc.

  • Page 36: Warranty

    Warranty For one year from the date of purchase, Brave Products Inc. will replace for the original purchaser, or repair free of charge, all parts of the Brave Products’ Hydraulic Log Split- ter, returned to our factory PREPAID and found upon inspection by us to be faulty, due to defects in materials or workmanship.
  • Page 37 Notes 800-350-8739 Brave Products, Inc.

  • Page 38: Parts

    Parts Brave Products, Inc. 815-672-8861...
  • Page 39 Parts 800-350-8739 Brave Products, Inc.
  • Page 40 Parts Brave Products, Inc. 800-350-8739...
  • Page 41 Parts 800-350-8739 Brave Products, Inc.
  • Page 42 Parts Brave Products, Inc. 800-350-8739...
  • Page 43 Parts 800-350-8739 Brave Products, Inc.

  • Page 44: Optional Attachments

    Optional Attachments These attachments are designed to fit both Brave 22 and 26 ton log splitters. Log Cradle (Part No. BR021181) ✔ Holds log in place on top of rail for faster splitting. ✔ Catches split logs - no more stooping to pick up the split pieces.
  • Page 46 Notes Brave Products, Inc. 800-350-8739...
  • Page 47 Notes 800-350-8739 Brave Products, Inc.
  • Page 48 Brave Products, Inc. 410 W. Broadway Ave. Streator, Illinois 61364-0577 Phone: 815-672-8861 Fax: 815-672-9073 E-mail: sales@braveproducts.com Web Site: www.braveproducts.com VH0622/VH0626-01 05/08...
