Summary of Contents for Leica Lino L360

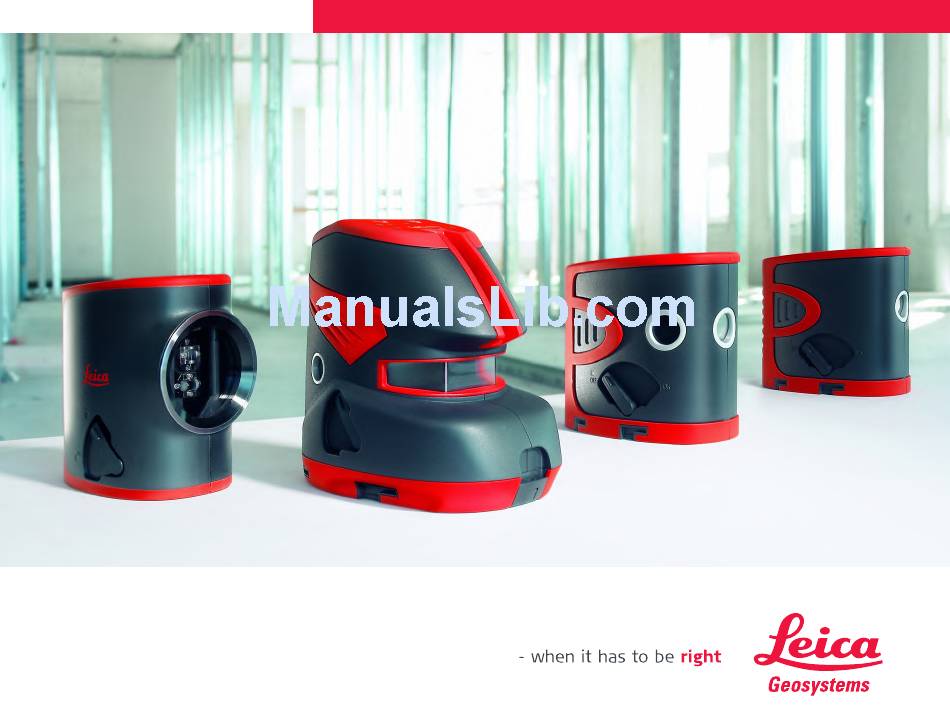

- Page 1 Leica Lino L360, L2P5, L2+, L2, P5, P3...
-
Page 2: User Manual
Remove the batteries if the instrument is not to be used for a long period of time (to prevent English corrosion) Congratulations on your purchase of the Leica Lino. The safety instructions follow the section on how to operate the instrument. Before starting up the... - Page 3 +10°C to +20°C/+50°F to +68°F if possible. • It is normal for the battery to become warm during charging. L360 1 Jack for battery charger Start up Leica Lino 757665g en...
- Page 4 6 Vertical laser line 7 Locked 8 Pulse/Power save mode ON 9 Battery voltage too low AT Plumbing and crossline intersection point AK Plumbing point Lino L2 AL Laser switched on Leica Lino L2 Leica Lino P3 Leica Lino 757665g en Operation...
- Page 5 Switching on/off Lino L360, L2P5, L2+, and L2: Lino P3 and Lino P5: • ON: Briefly press the LASER key 1. • ON: Move the Lock switch 3 to the right. • OFF: Press and hold down the LASER key 1.
- Page 6 Self-levelling and Lock functions Pulse/Power save mode The instrument automatically levels itself within the (only Lino L360, L2P5, L2+, and L2) specified grade range (Refer to "Technical data") . The instrument is fitted with a Power save mode. If Press the Lock switch 3 in order to transport or tilt particularly good visibility of the laser line is not the instrument beyond the self-levelling range.
- Page 7 Applications Operation Leica Lino 757665g en...
- Page 8 How to use the wall mount bracket: Leica Lino 757665g en Operation...
- Page 9 If the difference 2.5 m 2.5 m does not exceed 2 mm, then the Leica Lino is within tolerance. Set the instrument on a tripod half-way between two | (A1 - A2) - (B1 - B2) | ≤ 2 mm walls (A+B) that are approx.
- Page 10 If the difference does not the bottom of the plumb line. Now read off the exceed 3 mm, then the Leica Lino is within tolerance. maximum deviation of the laser line from the top of the plumb line. If the difference does not exceed 2 mm, then the Leica Lino is within tolerance.
- Page 11 Place the Lock switch 3 in the "Unlocked" ( then the Leica Lino is within tolerance. position. Should your Leica Lino be outside of the spec- Checking the upper plumbing point: ified tolerance, please contact an authorised dealer- max. 2 mm ship or Leica Geosystems.
- Page 12 Transport www.leica-geosystems.com/registration To safely transport the instrument, set the Lock within eight weeks of the purchase date. If the switch 3 to "Locked" ( product is not registered, a two year warranty applies. Leica Lino 757665g en Operation...
-
Page 13: Technical Data
Weight without batteries (with batte- 370 g 321 g 437.2 g 310 g 320 g ries) Tripod thread 1/4" * depending on lighting conditions All rights reserved for changes (on drawings, descriptions and technical data). Technical data Leica Lino 757665g en... - Page 14 Weight without batteries (with 13.1 oz 11.3 oz 15.4 oz 10.9 oz 11.3 oz batteries) Tripod thread 1/4" * depending on lighting conditions All rights reserved for changes (on drawings, descriptions and technical data). Leica Lino 757665g en Technical data...
-
Page 15: Safety Instructions
CAUTION: Refer to section "Technical data". Indicates a potentially hazardous situation or The Leica Lino is designed for use in areas perma- an unintended use which,if not avoided, may result in nently habitable by humans. Do not use the product... - Page 16 Carry out periodic test measurements. Particularly after the instrument has been subject to abnormal use, and before, during and after important measurements. Refer to section "Checking the accuracy of the Leica Lino". Leica Lino 757665g en Safety instructions...
-
Page 17: Electromagnetic Compatibility
Class B digital device, pursuant to WARNING: part 15 of the FCC Rules. These limits are designed to The Leica Lino conforms to the most stringent provide reasonable protection against harmful inter- requirements of the relevant standards and regula- ference in a residential installation. - Page 18 Laser classification The Leica Lino produces visible laser beams, which are emitted from the instrument: It is a Class 2 laser product in accordance with: WARNING: Looking directly into the beam with optical aids • IEC60825-1 : 2007 "Radiation safety of laser (e.g.
- Page 19 Beam divergence <180° Beam divergence <360° P3/P5 Laser Radiation Do not stare into the beam Laser class 2 in acc. with IEC 60825-1:2007 Maximum radiation power: <1.0mW c.w. Emitted wavelength: 620-690nm Beam divergence <1.5 mrad Safety instructions Leica Lino 757665g en...
- Page 20 Position of label: Leica Lino 757665g en Safety instructions...
- Page 21 Leica Geosystems AG, Heerbrugg, Switzerland has been certified as being equipped with a quality system which meets the International Standards of Quality Management and Quality Systems (ISO standard 9001) and Environmental Management Systems (ISO standard 14001). Total Quality Management - Our commitment to total customer satisfaction. Ask your local Leica Geosystems agent for more information about our TQM program.
