Summary of Contents for Leica Lino L4P1

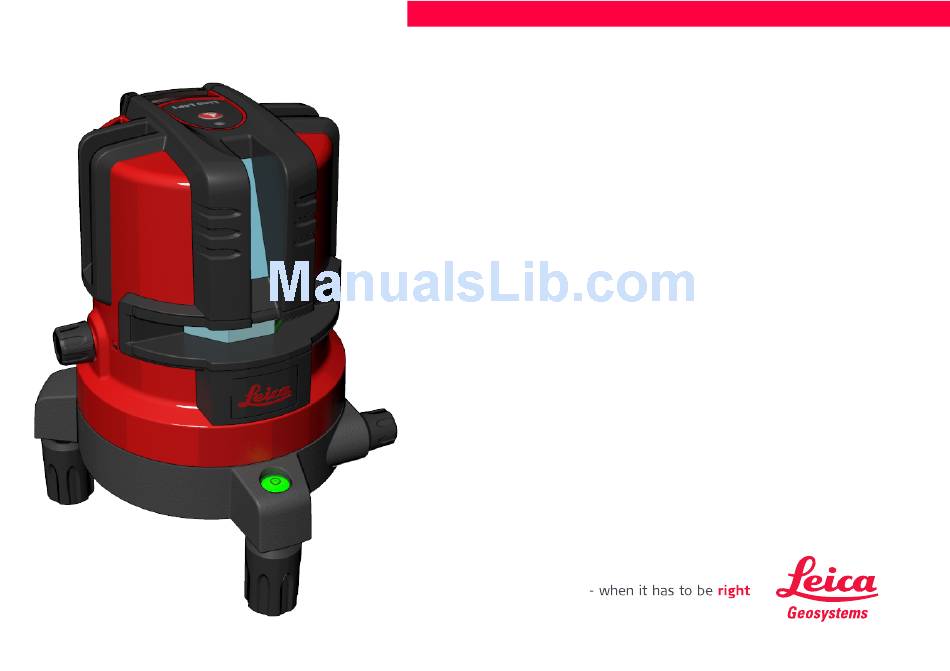

- Page 1 Leica Lino L4P1...
-
Page 2: Table Of Contents
Overview Technical data Instrument Set-up Operations Message Codes Accuracy Check Care Warranty Safety instructions Leica Lino L4P1... -
Page 3: Overview
Overview Ov e r v i e w The Leica Lino L4P1 is a laser levelling instrument 7 Levelling lock operating with a class 2 laser. See chapter Tech- nical data for scope of use. 8 Spirit level 9 Fine adjustment for vertical lines 10 Battery pack... -
Page 4: Technical Data
IP 54 (dust-and splash water protected) Tripod thread 1/4", 5/8" Operating temperature -10°C - 50°C Storage temperature -25°C - 70°C Dimension (H x D x W) 125 x 125 x 162 mm Weight (with Li-Ion batteries) 1173 g Leica Lino L4P1... -
Page 5: Instrument Set-Up
Important paragraphs which must be adhered to in practice as they enable the product to be used in a technically correct and efficient manner. Leica Lino L4P1... - Page 6 Charge Li-Ion battery tances (>15 m) or in unfavourable lighting conditions, a laser receiver can be used. We recommend the Leica RVL80 laser receiver. Insert the battery-pack by pressing it down and then tilting it towards the housing as shown until it snaps in.
- Page 7 To ensure a reliable use, we recommend using high quality Alkaline batteries. Insert Alkaline batteries Insert the battery-pack by pressing it down and then tilting it towards the housing as shown until it snaps in. Insert Alkaline batteries in the battery-pack. Leica Lino L4P1...
-
Page 8: Operations
Operations Op e r a t i o n s Switching ON/OFF Functions Check if self-levelling is required and cor- respondingly activated.. (See Levelling lock for details) Leica Lino L4P1... - Page 9 Operations Alignment of vertical laser lines Turn adjustment knob (1) for fine adjustment of vertical laser lines. Leica Lino L4P1...
-
Page 10: Message Codes
Cool down or heat up instrument blinks blinks red instrument is out of self-levelling range Place the instrument almost horizontal and self-levelling will start automatically blinks every 3 sec lights green Levelling lock is activated for working without self-levelling Leica Lino L4P1... -
Page 11: Accuracy Check
Ac c u r a c y Ch e c k Then place the instrument at the same elevation Levelling Check the accuracy of your Leica Lino L4P1 as close as possible to wall A and again mark the regularly and particularly before important horizontal laser line or the laser point on wall A measuring tasks. - Page 12 Observe the vertical deviation of the horizontal line pin. the Leica Lino L4P1 is within tolerance. from the marking. If the difference does not exceed 3 mm, then the Leica Lino L4P1 is within Checking the accuracy of the lower plumb tolerance. point:...
- Page 13 2 to direction 1. Adjust the instrument so that the laser beam hits point A1 exactly. If point B2 is no further than 2 mm away from point B1, then the Leica Lino L4P1 is within tolerance. Leica Lino L4P1...
-
Page 14: Care
Dropping or violent shaking of the instrument may damage it. Check the instru- ment for any damage before using it. Check the levelling accuracy of the instrument regularly. Leica Lino L4P1... -
Page 15: Warranty
Warranty under PROTECT by Leica Geosystems Lifetime Manufacturer´s Warranty Warranty coverage for the entire usage time of the product under PROTECT according to Leica Geosystems International Limited Warranty and PROTECT General Terms & Conditions set out under www.leica-geosystems.com. Free of... -
Page 16: Safety Instructions
Responsibilities of the person in charge of the instrument: To understand the safety instructions on the product and the instructions in the User Manual. To be familiar with local safety regulations relating to accident prevention. Always prevent access to the product by unauthorised personnel. Leica Lino L4P1... -
Page 17: Hazards In Use
Never attempt to repair the product yourself. In site (e.g. when measuring on roads, con- case of damage, contact a local dealer. struction sites, etc.) WARNING Changes or modifications not expressively approved could void the user´s authority to oper- ate the equipment. Leica Lino L4P1... - Page 18 High mechanical stress, high ambient tem- peratures or immersion into fluids can cause leak- age, fire or explosion of the batteries. Precautions: Protect the batteries from mechanical influences and high ambient temperatures. Do not drop or immerse batteries into fluids. Leica Lino L4P1...
-
Page 19: Laser Classification
Maximum radiant output power for classification IEC60825-1 : 2014 „Radiation safety of <1 mW laser products“ Pulse duration 35 - 65 µs, cw Pulse repetition frequency 10 kHz Beam divergence line < 200° Beam divergence point < 1.5 mrad Leica Lino L4P1... - Page 20 Safety instructions Labelling Subject to change (drawings, descriptions and technical data) without prior notice. Leica Lino L4P1...
