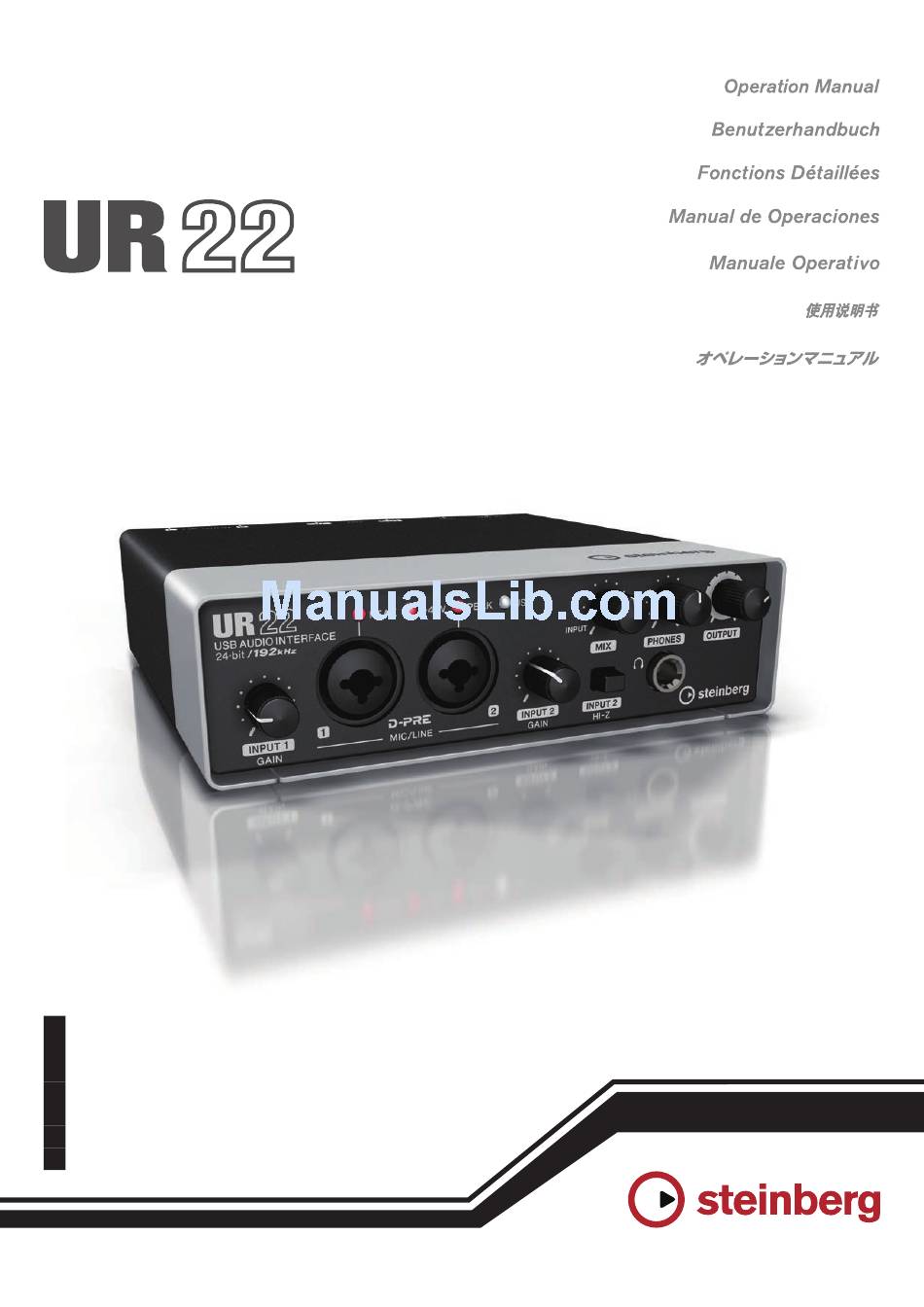

- Page 1 USB AUDIO INTERFACE Operation Manual UR22...
-
Page 2: Table Of Contents
Yamaha Steinberg USB Driver ......8 Windows............... 8 Mac ................9 Basic Operations ..........10 Connection Example..........10 Configuring Audio Driver Settings on the DAW Software..11 Recording/Playback........... 11 Troubleshooting ..........13 Appendix ..............15 Uninstalling Yamaha Steinberg USB Driver....15 Block Diagrams............16 Specifications............. 17 Operation Manual UR22... -
Page 3: A Message From The Development Team
Operation Manual production functionality into one compact, durable This document. For details, refer to the section “How device. Although it is small and portable, the UR22 to Read the Manual”(page 4). has been designed to deliver sound quality on a par with high-end models. -
Page 4: How To Read The Manual
Mac. Operation Manual (PDF; this document) This is included in the TOOLS for UR22 CD-ROM. Please read through this manual to understand how to use the features of the product. NOTE To view PDF files, you will need to install Adobe Reader on you computer. -
Page 5: Description Of The Device
(balanced) it stops lighting in red. [USB] indicator Phone-type The indicator lights when the UR22 is connected (balanced) to the computer via a USB cable and communication with the computer is enabled. Phone-type... - Page 6 Adjusts the output signal level of the [PHONES] jack. This output signal level is not affected by the [OUTPUT] knob. [PHONES ] jack For connection to a set of headphones. [OUTPUT] knob Adjusts the output signal level of the [LINE OUTPUT] jacks. Operation Manual UR22...
-
Page 7: Rear Panel
Be sure to observe the following points when When using phantom power, observe the following connecting to the computer’s USB interface. Failing to prevent noise and possible damage to UR22 or to do so may result in the computer freezing or connected equipment. -
Page 8: Yamaha Steinberg Usb Driver
Yamaha Steinberg USB Driver Yamaha Steinberg USB Driver Yamaha Steinberg USB Driver is a software program which allows communication between the UR22 and a computer. Yamaha Steinberg USB Driver has a control panel from which you can select the general settings of the audio driver for Windows and view the information for Mac. -
Page 9: Mac
Yamaha Steinberg USB Driver About Indicates the version and copyright of the audio Tips driver. The letters “x.x.x” indicate the version How to select the sample rate number. Select the sample rate of the device via the “Audio MIDI Setup.”... -
Page 10: Basic Operations
Guitar Headphones Front Panel Rear Panel Computer Synthesizer/MIDI keyboard Monitor speakers CAUTION Make sure to set all volume levels to minimum before connecting or disconnecting the external device. Otherwise, high-volume output may damage your hearing or equipment. Operation Manual UR22... -
Page 11: Configuring Audio Driver Settings On The Daw Software
・ (Windows only) Make sure to use the same USB Cubase Series Programs port as the one used in the installation procedure when you connect the UR22 to the computer again. Launch the Cubase series DAW. If you connect it to a different USB port, you will The “Project Assistant”... - Page 12 [PEAK] indicator lights in red, then slowly bring the level down until it stops lighting in red. While singing into the microphone, adjust the output signal level of the headphones by the [PHONES] knob on the device. Operation Manual UR22...
-
Page 13: Troubleshooting
・ Make sure that the device is confirm that the “Yamaha Steinberg USB ASIO” properly connected to the (Windows) or “Steinberg UR22” (Mac) is selected on computer via a USB cable. the“ASIO Driver.” Connecting between the computer and the device via a USB cable supplies power source to the ・... -
Page 14: System Requirements
Troubleshooting 8) of the Yamaha Steinberg USB Driver control switch from flashing to being panel. continuously lit.) ・ Has Yamaha Steinberg USB Unusual Sound (noise, Driver been installed properly? interruption, or distortion) Refer to the Getting started to complete Yamaha Steinberg USB Driver installation. -
Page 15: Appendix
Start the computer and log in to the Administrator account. Exit any open applications and close all open windows. Insert the TOOLS for UR22 CD-ROM into the CD-ROM drive. Open the CD-ROM then double-click the file “Uninstall Yamaha Steinberg USB Driver.”... -
Page 16: Block Diagrams
Appendix Block Diagrams Operation Manual UR22... -
Page 17: Specifications
Output Impedance 150 Ω PHONES Maximum Output Level 6 mW+6 mW, 40 Ω Specification USB2.0, 24 bit, 44.1 kHz/48 kHz/88.2 kHz/96 kHz/176.4 kHz/192 kHz XLR INPUT Polarity Pin 1: Ground Pin 2: Hot (+) Pin 3: Cold (-) Operation Manual UR22... -
Page 18: General Specifications
Specifications and descriptions in this manual are for information purposes only. Steinberg/Yamaha Corp. reserves the right to change or modify products or specifications at any time without prior notice. Since specifications, equipment or options may not be the same in every locale, please check with your Steinberg/ Yamaha dealer. - Page 19 Steinberg Web Site http://www.steinberg.net/ C.S.G., PA Development Division © 2012-2014 Yamaha Corporation 402MW-B0...
