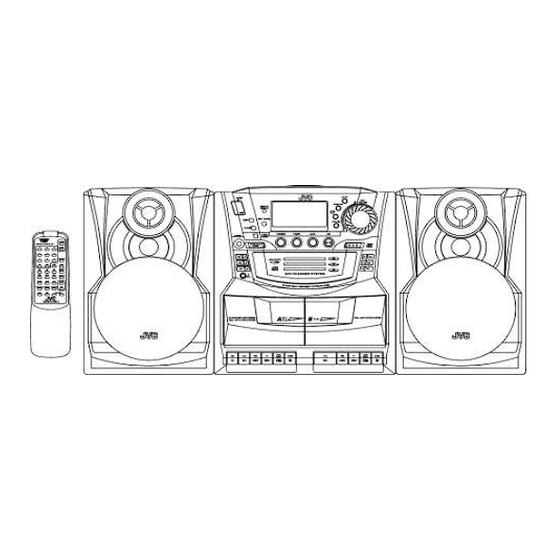

SERVICE MANUAL
CD PORTABLE COMPONEMT SYSTEM
Unit No.
SP-PCXC350
contents
Safety precaution ------------------ 1-2
Disassembly method -------------- 1-4
Adjustment method ---------------- 1-6
TOC read ---------------------------- 1-11
Major IC Description ---------------1-12
PC-XC350
Unit No.
SP-PCXC350
COPYRIGHT © 2001 VICTOR COMPANY OF JAPAN,LTD (By JCA)
Unit No.
SP-PCXC350
Area Suffix
J-----USA
C-----CANADA
Block/Wiring Diagram ----------------- 1-16
Circuit Diagram ------------------------- 1-18
PCB drawing ---------------------------- 1-20
Assembly -------------------------------- 1-22
Packing ----------------------------------- 1-32
PC-XC350
No. xxxxx
OCT 2001

Advertisement

loading

Related Manuals for JVC PC-XC350

Summary of Contents for JVC PC-XC350

  • Page 1 PC-XC350 SERVICE MANUAL CD PORTABLE COMPONEMT SYSTEM PC-XC350 Unit No. Unit No. Unit No. SP-PCXC350 SP-PCXC350 SP-PCXC350 Area Suffix J-----USA C-----CANADA contents Safety precaution ------------------ 1-2 Block/Wiring Diagram ----------------- 1-16 Disassembly method -------------- 1-4 Circuit Diagram ------------------------- 1-18 Adjustment method ---------------- 1-6...

  • Page 2: Safety Precautions

    PC-XC350 Safety Precautions 1. This design of this product contains special hardware and many circuits and components specially for safety purposes. For continued protection, no changes should be made ti the original design unless authorised in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits.

  • Page 3: Preventing Static Electricity

    PC-XC350 Preventing static electricity Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser diode in the traverse unit (optical pcikup). Take care to prevent this when performing repairs. 1.1. Grounding to prevent damage by static electricity Static electricity in the work area can destroy the optical pickup (laser diode) in devicessuch as DVD players.
  • Page 4 PC-XC350 Disaeesmbly method Removing the rear panel 1. From behind the body, remove the eight screws A retaining the rear panel. 2. Then remove the two screws B retaining the rear panel. 3. Take out the rear panel from the body.
  • Page 5 PC-XC350 Removing the CD mechanism 1. Remove the rear panel 2. Removing the two screws E retaing the 3CD mechanism cover. 3. Removing the crew F retaing the control PCB left side. 4. Remove the srews G retaing on the 3CD mechanism cover &...
  • Page 6 PC-XC350 Adjustment method Measurement instruments required for Tuner section adjustment Voltage applied to tuner ----- +B:DC 5.7V Low frequency oscillator VT: FM 2~5v / am 1.5~7.5v This oscillator should have a capacity to output Reference measurement ----- 26.1mV(0.866/3 0dB to 600...

  • Page 7: Tuner Adjustment

    PC-XC350 TUNER ADJUSTMENT use a plastic screews driver for adjustments. Adjust the intermediate frequency of AM and FM to the frequency of cermic filter. Supply voltage: DC 12.0V Speaker impedance: 3 OHMS Function switch: RADIO a. AM adjustment BAND SELECT SWITCH : AM...
  • Page 8 PC-XC350 ARRANGEMENT OF ADJUSTMENTS POSITION 1 - 8...
  • Page 9 PC-XC350 Tape recorder section Items Measurement Measurement method Standard Adjusting conditions Values position Confirmation Test tape 1 Playback the test tape TCC-182A (8KHz) Maximum Adjust the head of head angle : TCC-182A(8KHz) 2 With the recording & playback mechanism, output...
  • Page 10 PC-XC350 Electrical Performance Items Measurement Measurement method Standard Adjusting conditions Values position Adjustment of Mode: Playback 1 With the recording and playback recording blas mode mechanism, load the test tapes TDK-D60 current Recording mode TDK-D60, and set the mechanism to the 4.5 u A...
  • Page 11 PC-XC350 1-11...
  • Page 12 PC-XC350 DESCRIPTION OF MAJOR IC TA2104BN (IC101) AM/FM 1 CHIP TUNER Block Diagram 1-12...
  • Page 13 PC-XC350 AN7345K (IC201) DUAL RECORD/PLAYBACK PRE-AMPLIFIER Block Diagram 1-13...
  • Page 14 PC-XC350 1 - 14...
  • Page 15 PC-XC350 1 - 15...
  • Page 16 PC-XC350 BLOCK DIAGRAM 1 - 16...
