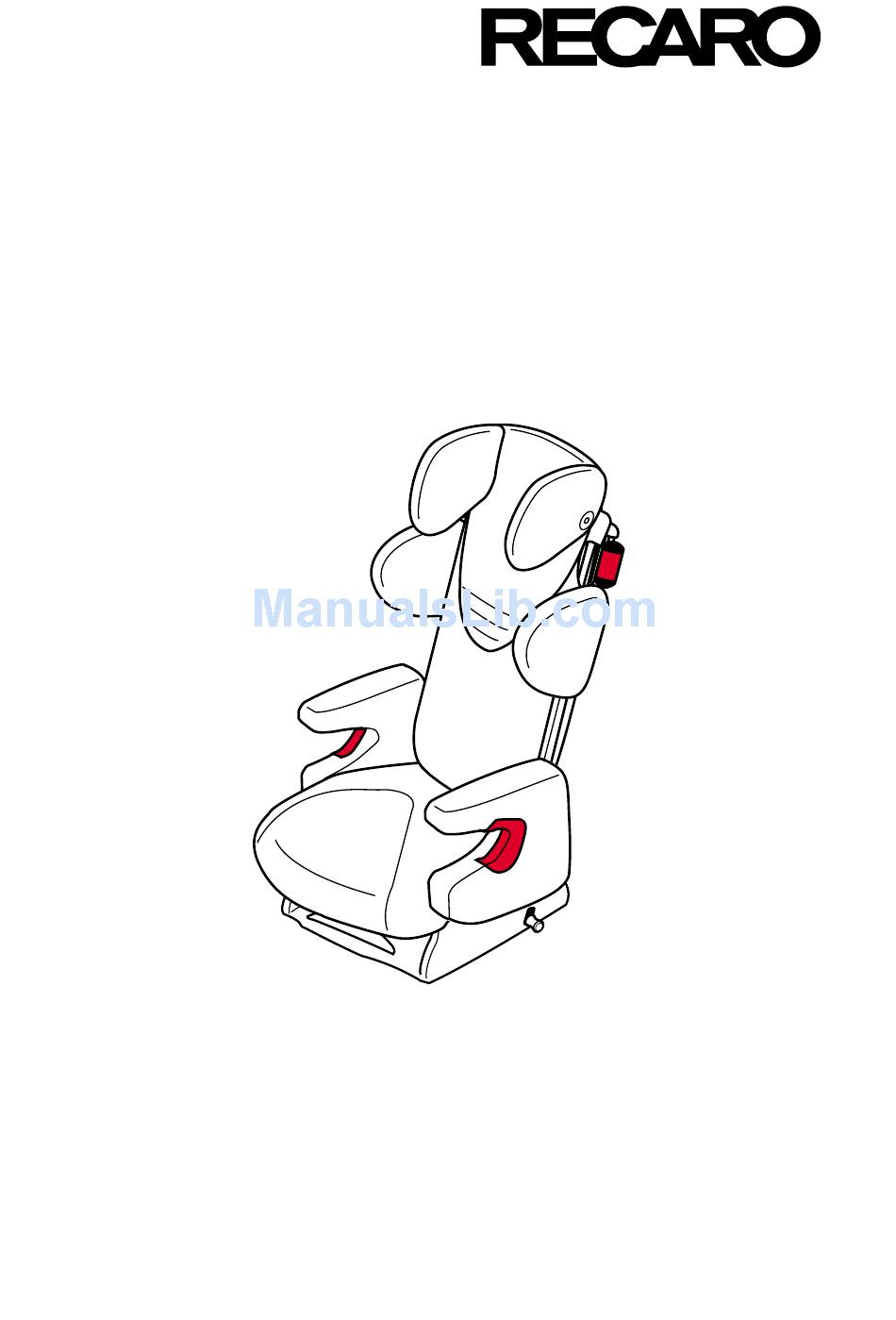

RECARO start
Universal restraint system for children
approved in accordance with ECE R44/03
Instruction manual
Only suited for use in vehicles fitted with 3-point safety belts, approved to
ECE Regulation No. 16 or other equivalent standards.
This is a Class I to III seat for children weighing 9–36 kg, up to 150 cm tall.
Age guide 9 months to 12 years. RECARO recommends additional securing of
children in the weight class ECE I (9–18 kg) with the RECARO impact cushion.
Suitable only for forward-facing installation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Car Seat and is the answer not in the manual?

Questions and answers

Related Manuals for RECARO Car Seat

Summary of Contents for RECARO Car Seat

  • Page 1 This is a Class I to III seat for children weighing 9–36 kg, up to 150 cm tall. Age guide 9 months to 12 years. RECARO recommends additional securing of children in the weight class ECE I (9–18 kg) with the RECARO impact cushion. Suitable only for forward-facing installation.
  • Page 2 W & W & @ W & @ @ W & @ @ @ @ W & @ @ @ W & @ @ @ @ @ @ W & @ @ @ @ @ @ @ W & @ @ @ @ @ W &...
  • Page 6 The RECARO child seat you have bought is a high-quality product. Its different set- tings and its stable and ergonomic design ensure that the RECARO child seat is a safe and comfortable place for your child to sit when traveling in your car.

  • Page 7: Table Of Contents

    Securing the child ..................13 How to transport the RECARO child seat ..........15 How to use the loudspeaker function ............15 Notes on care..................16 Removing covers ..................16 After washing ..................18 How to care for the cover of your RECARO child seat ........18...

  • Page 8: Safety Instructions

    Safety instructions • Adjusting the seat Before you set off on any journey, adjust the seat so that it is the right size for the child that is sitting in it. The child seat will only provide the protection it is designed for if this is done.
  • Page 9 Never use seats which have been damaged in an accident! The child seat is only approved with original RECARO accessories. Any use for the purpose other than that intended, modifications, or incorrect operation of the seat shall release the manufacturer of all liability and shall make the warranty void.

  • Page 10: How To Adjust The Recaro Child Seat

    How to adjust the RECARO child seat Overview – Figure on the back fold-out page An overview of all parts of the RECARO child seat can be found in the illustration given on the back fold-out page. a Socket for loudspeaker...

  • Page 11: Height Of The Backrest

    Height of the backrest – Figure A The height of the backrest of the child seat can be adjusted to 11 different settings. Adjustment buttons for this purpose are found at the lower edge of the shoulder supports on each side, underneath the backrest cover. ➀...

  • Page 12: Seat Length

    Seat length – Figure C The seat length can be adjusted to 6 different positions. Fold the seat cushion up. ➀ Reach underneath the seat and press up the seat from underneath. The seat lock is released. ➁ Keep the seat pressed upwards while adjusting the seat length to meet your requirements.

  • Page 13: How To Install The Recaro Child Seat

    The child seat travels back and engages in the sitting position. Reattach the 3-point belt (see Section "Securing the child" on page 13/14). How to install the RECARO child seat When you have adjusted the child seat to the child's size, you can use it in all back seats that are equipped with a 3-point safety belt.
  • Page 14 2. Ensuring the correct position for the lap belt Route the lap belt under the arm rests past the two bottom red belt guides. Tighten the lap belt by pulling on the shoulder belt. 3. Ensuring the correct position for the shoulder belt On the belt-buckle side, route the shoulder belt between the red belt guide and the arm rest.

  • Page 15: How To Transport The Recaro Child Seat

    How to transport the RECARO child seat Figure F You can fold the child seat so that it can be transported safely and without taking up much space. For your own safety, it is best to transport the unused child seat folded up in the boot of the vehicle.

  • Page 16: Notes On Care

    Notes on care You can wash all parts of the covers with a gentle-wash detergent at 40 °C. You can spin-dry the covers, but do not dry them in a dryer. You can remove all parts of the covers independently of each other and wash them separately.

  • Page 17: After Washing

    Ensure that the right and left sides are not switched. How to care for the cover of your RECARO child seat Make sure that the child seat is always secured in the vehicle such that it does not chafe against anything.
  • Page 20 RECARO GmbH & Co. KG, Stuttgarter Straße 73, D-73230 Kirchheim/Teck, Telefon +49/(0)70 21/93-52 08, Telefax +49/(0)70 21/93-53 39, www.recaro.com, info@recaro.com RECARO UK: RECARO France: RECARO South East Asia: Phone +44 / 19 26 / 48 41 11 Phone +33 / 5 / 46 34 32 29 Phone +60 / 3 / 55 69 28 55 info.gb@recaro.com...
