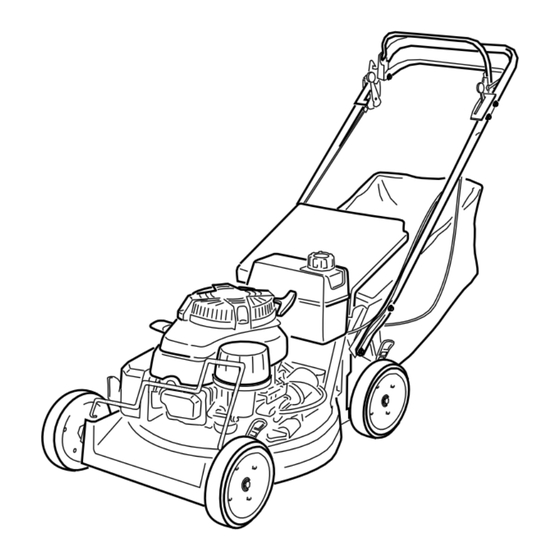

Toro 22189TE Operator's Manual

53cm heavy-duty rear bagger lawn mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Form No. 3364-349 Rev A
53cm Heavy-Duty Rear Bagger
Lawn Mower
Model No. 22189TE—Serial No. 310000001 and Up
To register your product or download an Operator's Manual or Parts Catalog at no charge, go to www.Toro.com.
Original Instructions (EN)

Advertisement

Table of Contents
loading

Related Manuals for Toro 22189TE

Summary of Contents for Toro 22189TE

  • Page 1 Form No. 3364-349 Rev A 53cm Heavy-Duty Rear Bagger Lawn Mower Model No. 22189TE—Serial No. 310000001 and Up To register your product or download an Operator's Manual or Parts Catalog at no charge, go to www.Toro.com. Original Instructions (EN)

  • Page 2: Table Of Contents

    Whenever you need service, genuine Toro parts, or Sound Power ............5 additional information, contact an Authorized Service Hand-Arm Vibration..........5 Dealer or Toro Customer Service and have the model Safety and Instructional Decals ......5 and serial numbers of your product ready. Figure 1 Setup................7 identifies the location of the model and serial numbers 1 Installing the Handle..........

  • Page 3: Safety

    Blade Maintenance ..........25 comply with these safety instructions. Maintaining the Cutting Blade......25 Toro designed and tested this mower for reasonably safe Cleaning ..............26 service; however, failure to comply with the following Cleaning under the Mower Housing ....26 instructions may result in personal injury.

  • Page 4: Maintenance And Storage

    • If gasoline is spilled, do not attempt to start the – Always be sure of your footing on slopes. engine but move the mower away from the area of • Reduce speed on slopes and in sharp turns to prevent spillage and avoid creating any source of ignition overturning or loss of control.

  • Page 5: Sound Pressure

    • To ensure the best performance and safety, Measured vibration level for the left hand = 5.3 m/s purchase only genuine Toro replacement parts and accessories. Do not use will fit parts and Measured vibration level for the right hand = 3.5 m/s accessories;...
  • Page 6 110-4978 1. Warning—read the Operator’s Manual. 2. Thrown object hazard—keep bystanders a safe distance from the machine. 3. Cutting, dismemberment hazard of hand or foot—stop the engine and remove the spark plug wire before performing any maintenance on the machine. 4.

  • Page 7: Setup

    Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. Handle Bolt (5/16 x 7/8 inch) Bolt (5/16 x 1-1/2 inches) Install the handle. Washer Locknut (5/16 inch) Cable tie Self-tapping screw Install the fuel tank and fuel line.

  • Page 8: Filling The Crankcase With Oil

    Installing the Fuel Tank and the Fuel Line Parts needed for this procedure: Self-tapping screw Fuel tank Procedure 1. Slide the end of the fuel line onto the elbow fitting (Figure 4). Figure 5 1. Plastic clip (2) 4. Secure the bottom of the fuel tank to the fuel tank bracket by installing the self-tapping screws from the bottom.

  • Page 9: Product Overview

    (Figure 7). Specifications Model Weight Length Width Height 22189TE 123 lb 59 in 23 in 38 in (56 kg) (149 cm) (57 cm)

  • Page 10: Operation

    Operation Note: Determine the left and right sides of the machine from the normal operating position. Each time before you mow, make sure that the self-propel drive and the blade control bar operate properly. When you release the blade control bar, the blade should stop.

  • Page 11: Filling The Fuel Tank With Gasoline

    Filling the Fuel Tank with DANGER Gasoline When fueling, under certain circumstances, a static charge can develop, igniting the gasoline. A For best results, use clean, fresh, lead-free gasoline with fire or explosion from gasoline can burn you and an octane rating of 87 or higher. To ensure freshness, others and damage property.

  • Page 12: Starting The Engine

    Operating the Blade Engaging the Blade When you start your engine, the blade does not turn. You must engage the blade to mow. 1. Push the control bar lock forward (Figure 12). Figure 11 1. Fuel tank cap 3. Air cleaner 2.

  • Page 13: Operating The Traction Drive

    Disengaging the Blade Disengaging the Traction Drive Release the blade control bar. Release the traction control bar. Important: When you release the blade control Checking the Blade Brake bar, the blade should stop within 3 seconds. If it does not stop properly, stop using your mower Clutch immediately and contact an Authorized Service Dealer.

  • Page 14: Adjusting The Cutting Height

    Adjusting the Cutting Height Using the Grass Bag Each wheel is adjusted individually with a wheel height Installing the Grass Bag adjustment lever. Cutting heights are 1 inch (25 mm), 1-1/2 inches (38 mm), 2 inches (51 mm), 2-1/2 inches 1.

  • Page 15: Operating Tips

    Check the grass bag frequently. If it is damaged, or 3-1/2 inch (89 mm) cutting height settings. Cut install a new Toro replacement bag. only about a third of the grass blade at a time. Do not cut below the 2-1/2 inch (64 mm) setting unless...
  • Page 16 • For light leaf coverage, set all the wheels at the same cutting height setting. • If there are more than 5 inches (12.7 cm) of leaves on the lawn, set the front cutting height 1 or 2 notches higher than the rear cutting height. This makes it easier to feed the leaves under the mower housing.

  • Page 17: Maintenance

    Maintenance Note: Determine the left and right sides of the machine from the normal operating position. Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Change the engine oil. After the first 8 hours • Check the engine oil level. •...

  • Page 18: Lubrication

    Lubrication Engine Maintenance Lubricating the Pivot Arms Servicing the Air Filter Service Interval: Every 50 hours Service Interval: Every 25 hours—Clean the foam pre-cleaner (more frequently in dusty 1. Move the rear wheel cutting height levers to the conditions). center setting. 2.

  • Page 19: Changing The Engine Oil

    Changing the Engine Oil Service Interval: After the first 8 hours Every 50 hours Oil Capacity With oil filter 29 ounces (0.85 liters) Without oil filter 22 ounces (0.65 liters) Note: The oil capacities in the table above account for the empty crankcase to contain a small amount of residual oil.

  • Page 20: Changing The Oil Filter

    Changing the Oil Filter 9. Fill the crankcase to the Full line on the dipstick with fresh oil. Refer to Filling the Crankcase with Oil. Service Interval: Every 100 hours 10. Connect the wire to the spark plug. 1. Run the engine to warm the oil. 11.

  • Page 21: Servicing The Spark Plug

    Servicing the Spark Plug Fuel System Maintenance Service Interval: Every 100 hours—Check the spark plug. Use an NGK BPR5ES spark plug or equivalent. Emptying the Fuel Tank and 1. Stop the engine and wait for all moving parts to stop. Cleaning the Fuel Filter 2.

  • Page 22: Drive System Maintenance

    Drive System Maintenance Adjusting the Self-propel Drive If the mower does not self-propel or has a tendency to creep forward when the control bar is more than 1-1/2 inches (3.8 cm) from the handle, adjust the self-propel drive. 1. Loosen the nut that secures the adjuster (Figure 25). G012156 Figure 26 1.

  • Page 23: Controls System Maintenance

    Controls System 8. Move the lower anchor bracket up one hole (Figure 27). Maintenance 9. Repeat steps 1 through 3 to adjust the control bar. Note: When you install a new belt, move the lower Adjusting the Blade Brake anchor bracket to its original factory position, which is indicated by the notches next to the holes in the Cable bracket (Figure 27).
  • Page 24 WARNING Do not overtighten the blade brake cable. Overtightening the blade brake cable could prevent the blade brake from contacting the brake drum when you release the control bar. If the blade brake does not contact the brake drum, the blade will not stop rotating, which could cause serious personal injury.

  • Page 25: Blade Maintenance

    Blade Maintenance Maintaining the Cutting Blade Always mow with a sharp blade. A sharp blade cuts cleanly and without tearing or shredding the grass blades. 1. Stop the engine and wait for all moving parts to stop. 2. Disconnect the wire from the spark plug (Figure 11). Figure 32 3.

  • Page 26: Cleaning

    Installing the Blade of the right rear wheel (Figure 35). 1. Install a sharp, balanced Toro blade, the anti-scalp cup, and the blade nuts. The sail of the blade must point toward the top of the mower housing for proper installation.

  • Page 27: Cleaning The Blade Brake Clutch Shield

    3. Tip the mower onto its right side. 4. Remove the dirt and grass clippings with a hardwood scraper. Avoid burrs and sharp edges. 5. Return the mower to its operating position. 6. Fill the fuel tank. 7. Connect the wire to the spark plug. Cleaning the Blade Brake Clutch Shield Service Interval: Every 50 hours...

  • Page 28: Storage

    Storage 3. Remove grass clippings, dirt, and grime from the external parts of the engine, the shrouding, and the top of the mower housing. To prepare the mower for off-season storage, perform the recommended maintenance procedures. Refer to 4. Check the condition of the blade. Refer to Maintenance.

  • Page 29: Troubleshooting

    Troubleshooting Problem Possible Cause Corrective Action Engine does not start 1. The fuel tank is empty or the fuel 1. Drain and/or fill the fuel tank with system contains stale fuel. fresh gasoline. If the problem persists, contact an Authorized Service Dealer. 2.
  • Page 30 Notes:...
  • Page 31 Spypros Stavrinides Limited Cyprus 357 22 434131 Surge Systems India Limited India 91 1 292299901 T-Markt Logistics Ltd. Hungary 36 26 525 500 Toro Australia Australia 61 3 9580 7355 Toro Europe BVBA Belgium 32 14 562 960 374-0269 Rev A...
  • Page 32 Instructions for Obtaining Warranty Service The Toro® Company and its affiliate, Toro Warranty Company, pursuant to If you think that your Toro Product contains a defect in materials or an agreement between them, jointly promise to repair the Toro Product...
