DIALOGUE III / III–P TTY
Text Telephone
Operating Instructions
12082 Western Avenue
Garden Grove, CA 92841
TTY/TDD: (800) 772-2889
VOICE: (800) 874-3005
Fax: (714) 897-4703
email: ameriphonecs@plantronics.com
web: www.ameriphone.com
©2003 Plantronics, Inc. All rights reserved. Ameriphone, Walker and Plantronics are
trademarks or registered trademarks of Plantronics, Inc.
∆
Advertisement
Table of Contents
Related Manuals for Ameriphone III
Summary of Contents for Ameriphone III
-
Page 1: Operating Instructions
Operating Instructions 12082 Western Avenue Garden Grove, CA 92841 TTY/TDD: (800) 772-2889 VOICE: (800) 874-3005 Fax: (714) 897-4703 email: ameriphonecs@plantronics.com web: www.ameriphone.com ©2003 Plantronics, Inc. All rights reserved. Ameriphone, Walker and Plantronics are trademarks or registered trademarks of Plantronics, Inc. ∆... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS ADDITIONAL SAFETY NOTES FOR CANADI- AN USERS NOTICE: CAUTION: NOTICE:... -
Page 3: Table Of Contents
TABLE OF CONTENTS CHAPTER 1: INTRODUCTION CHAPTER 2: COMPONENT CHECKLIST CHAPTER 3: IDENTIFYING THE FEATURES CHAPTER 4: INSTALLATION CHAPTER 5: SETTING UP YOUR TTY CHAPTER 6: OPERATING YOUR TTY... - Page 4 TABLE OF CONTENTS CHAPTER 7: ADDITIONAL FEATURES CHAPTER 8: AVAILABLE OPTIONAL ACCESSORIES CHAPTER 9: TROUBLE SHOOTING CHAPTER 10: MAINTENANCE INFORMATION CHAPTER 11: TTY USER'S ETIQUETTE CHAPTER 12: WARRANTY INFORMATION CHAPTER 13: REPAIR INFORMATION CHAPTER 14: FCC REGISTRATION CHAPTER 15: SPECIFICATIONS CHAPTER 16: PROTECTION PLUS EXTENDED WARRANTY PROGRAM OWNER REGISTRATION CARD...
-
Page 5: Chapter 1: Introduction

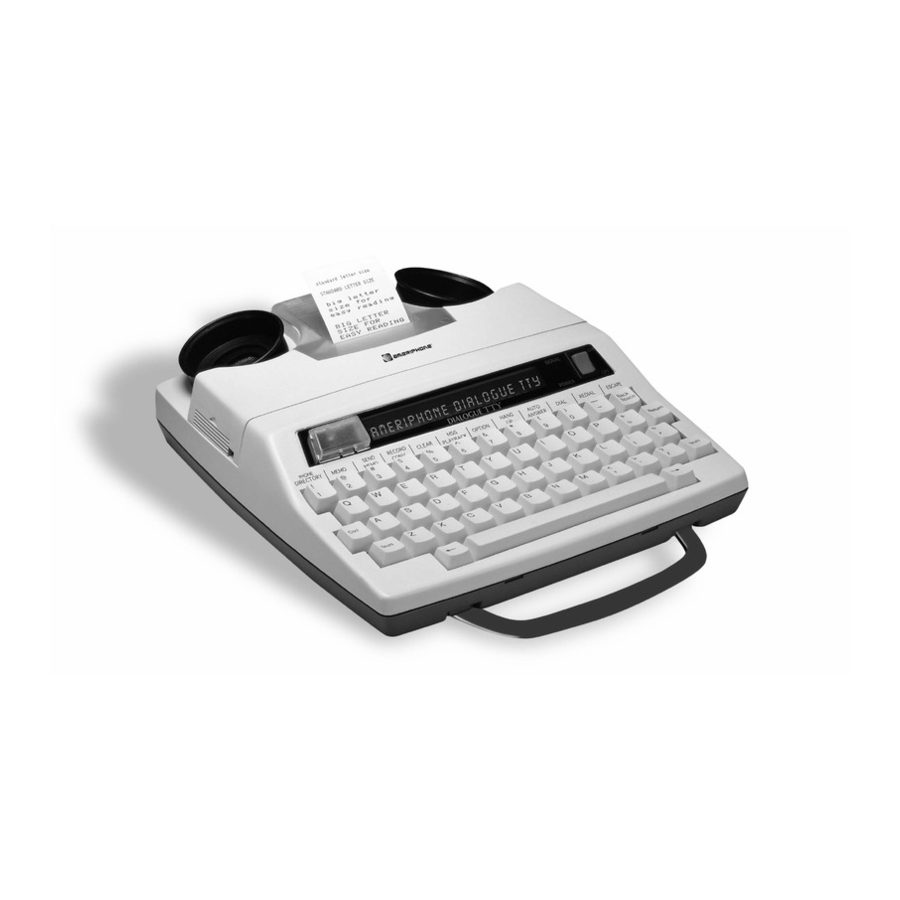

CHAPTER 1 INTRODUCTION DIALOGUE Keyboard: CHAPTER 2 COMPONENT CHECKLIST Your DIALOGUE TTY package DIALOGUE should contain the following items Printer Paper (DIALOGUE III–P) DIALOGUE Figure 1 - Package Components DIALOGUE TTY DIALOGUE... -
Page 6: Identifying The Features
CHAPTER 3 IDENTIFYING THE FEATURES DIALOGUE III / III–P TTY Features on DIALOGUE III / III–P... - Page 7 CHAPTER 3 (CONTINUED) Phone Directory Memo Send Memo Record Conversation Clear Message Playback Special Function Keys on DIALOGUE III / III–P Escape Redial Dial Auto Answer Hang Up Option...
-
Page 8: Chapter 4 Installation
CHAPTER 4 INSTALLATION A. Power and Phone Line Connection DIALOGUE TTY DIALOGUE TTY Phone Cord Phone Wall Outlet Telephone or Signaling Devices (Optional) B. Loading Paper Into Printer Figure 2 - Removing paper tray cover AC Outlet AC Adapter Figure 3 - Installing printer paper Figure 4 - Pulling printer paper through its cover... -
Page 9: Setting Up Your Tty
CHAPTER 5 SETTING UP YOUR TTY A. Relay Number Voice Announcer B. Phone Directory for Memory Dialing 1. Programming Phone Directory 2. Editing Phone Directory 3. Printing the Phone Directory C. Factory Preset Modes of Operation... - Page 10 F. Setting Up Other Operating Options (optional) 1. Printer Letter Sizes DIALOGUE III/III-P can print conversations in three letter sizes; standard, medium, and big. It is preset to print in standard letter size. Howev- er, once it is changed it will remember and main- tain the size selection.
- Page 11 5. Turning Off Toll Saver and Selecting the Number of Rings for Auto Answer DIALOGUE III and III-P are the world's first TTY's equipped with the exclusive . This feature allows you to remotely check your answering system and not incur any toll charges if there are no messages.
-
Page 12: Operating Your Tty
Number Voice Announcer first and then follow with the Auto Answer Message. 9. Printing Auto Answer Messages DIALOGUE III-P TTY is set up to print and record all incoming call messages. However, you may turn off print function to save paper. - Page 13 CHAPTER 6 (CONTINUED) 3. Memory Dialing: Before you can dial from memory, you must have the names and phone numbers stored in the directory. See Chapter 5 on how to create a phone directory. 4. Calling 911 Emergency Number: (911 Emergency Number may not be available in some areas) HELP! HELP! GA 5.
- Page 14 TOLL-SAVER option selected in your TTY. When you remotely call your answering system, if your DIALOGUE III/ III-P does not answer within two rings, that means there are no mes- sages. You should hang up immediately to avoid incurring any call toll charges.
- Page 15 (CONTINUED) NOTE: You must visually monitor the number of rings by watching your TTY SIGNAL indicator. If your DIALOGUE III/III-P answers within two rings, there are new messages and you can retrieve them by typing in your password and then press .
-
Page 16: Additional Features
CHAPTER 6 (CONTINUED) Reviewing and Editing a Memo K. Printing a Memo or Conversation Stored in Memory CHAPTER 7 ADDITIONAL FEATURES A. Wait-For-Response This feature notifies the user who was placed on "HOLD" that the other party has resumed typing. Press vate this feature. - Page 17 TTY. E. Checking Available Memory Your DIALOGUE III/III-P TTY has a total mem- ory capacity of 32K, which is approximately 32,000 characters (i.e. equivalent to about 13 letter size typed pages). About 500 characters are used for programming the internal control in- structions of the TTY.
- Page 18 All DIALOGUE TTYs work with external printers that support a standard parallel interface. RS232 serial printers aren't compatible with AMERIPHONE TTYs. If your DIALOGUE TTY is not equipped with a built-in printer, follow these instructions to attach and use an external print- er.
- Page 19 Using Help Menu The DIALOGUE III TTY comes equipped with help menus to assist you in using the various features. These menus are especially helpful when using the TTY when the users guide is un- available or when only a quick reference is need- ed.
- Page 20 You can also receive ASCII calls. DIALOGUE III/III-P TTY s equipped with ASCII code auto- matically switch to ASCII mode of communica- tion when there is an ASCII incoming call. Answer the call and carry on in the normal fashion. If you...
-
Page 21: Available Optional Accessories
TTY con- versation. For longer operation, order heavy duty (2 hour) batteries from AMERIPHONE. When the batteries are running low, the Power Indicator will blink when the TTY is turned on. Replace or recharge the batteries immediately. -
Page 22: Trouble Shooting
CHAPTER 9 TROUBLE SHOOTING If any problem should arise during operation of your TTY, go through the suggestions listed below. Should the difficulty persist, contact AMERIPHONE or your authorized dealer for assistance. SYMPTOM DIALOGUE TTY CAUSE AND CORRECTIVE ACTIONS No power. Check to make sure that both ends of the AC adapter/charger are firmly plugged in. -
Page 23: Maintenance Information
CHAPTER 10 MAINTENANCE INFORMATION A. Caring For Your TTY DIALOGUE TTY B. Recharging Batteries CHAPTER 11 TTY USER'S ETIQUETTE... -
Page 24: Warranty Information
CHAPTER 11 (CONTINUED) CHAPTER 12 WARRANTY INFORMATION DIALOGUE III/III-P III/III-P DIALOGUE III/III-P DIALOGUE... -
Page 25: Repair Information
CHAPTER 12 CHAPTER 13 (CONTINUED) REPAIR INFORMATION DIALOGUE III/III-P DIALOGUE III/III-P DIALOGUE III/III-P... -
Page 26: Fcc Registration
CHAPTER 14 FCC REGISTRATION CHAPTER 15 SPECIFICATIONS PHYSICAL DIMENSIONS POWER KEYBOARD DISPLAY ACOUSTIC COUPLERS COMMUNICATION CODES PRINTER (DIALOGUE III–P) CSA/NRTL LISTED FCC AND DOC APPROVED... -
Page 27: Protection Plus Extended Warranty Program
(for a total of 3 years). There is absolutely no additional cost to you for repairs during this peri- od. AMERIPHONE pays 100% of all parts and labor. (One year Protection Program is also available). -
Page 29: Owner Registration Card
OWNER REGISTRATION CARD Thank you for purchasing your AMERIPHONE DIALOGUE TTY. Please fill out and mail this card Within The Next 10 Days to register your purchase. Proper registration will enable us to send you period- ic mailings about new products and other important... - Page 31 DIALOGUE INDEX...
