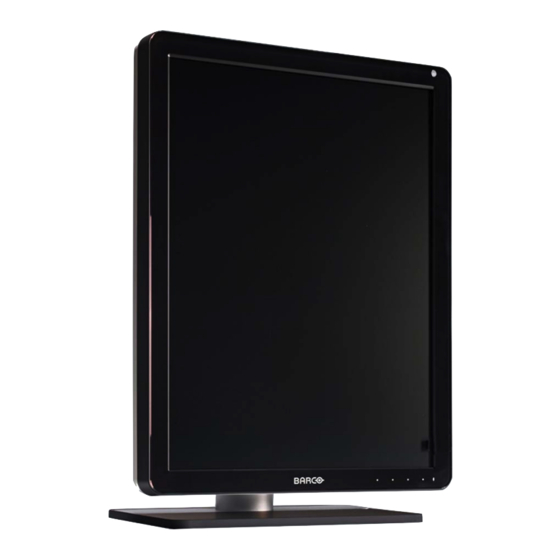

Barco MDNC-2221 User Manual

Nio 2mp led display
Hide thumbs Also See for MDNC-2221:
Table of Contents

Advertisement

Quick Links

NIO 2MP LED Display
User Guide
MDNC-2221
K5903058/01
04/03/2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDNC-2221 and is the answer not in the manual?

Questions and answers

Related Manuals for Barco MDNC-2221

Summary of Contents for Barco MDNC-2221

  • Page 1 NIO 2MP LED Display User Guide MDNC-2221 K5903058/01 04/03/2014...
  • Page 2 Barco nv President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.23.32.11 Fax: +32 56.26.22.62 Support: www.barco.com/esupport Visit us at the web: www.barco.com Printed in Belgium...

  • Page 3: Table Of Contents

    Table of contents TABLE OF CONTENTS 1. Welcome! ..................3 About the product .................... . 3 What’s in the box.
  • Page 4 Table of contents K5903058 NIO 2MP LED DISPLAY 04/03/2014...

  • Page 5: Welcome

    AC power cord • an external power supply If you ordered a Barco display controller, it’s also in the box together with its accessories. A dedicated user guide is available on the system CD. K5903058 NIO 2MP LED DISPLAY 04/03/2014...
  • Page 6 1. Welcome! Keep your original packaging. It is designed for this display and is the ideal protection during transport and storage. K5903058 NIO 2MP LED DISPLAY 04/03/2014...

  • Page 7: Parts, Controls And Connectors

    2. Parts, controls and connectors 2. PARTS, CONTROLS AND CONNECTORS Display front view Overview Image 2-1 Front view Left key Standby key Right key Power LEDs Menu key Bottom downstream USB The key icons are displayed above the keys, adapted to the function that it is used for (menu dependent).

  • Page 8: Display Rear View

    2. Parts, controls and connectors Display rear view Connector compartment cover closed Image 2-2 Rear view with closed connector compartment cover Connector compartment cover Foot lock clip Cable duct Tilt & swivel foot K5903058 NIO 2MP LED DISPLAY 04/03/2014...
  • Page 9 2. Parts, controls and connectors Connector compartment cover open Image 2-3 +24 VDC power input DVI video input DisplayPort video input USB downstream connector USB upstream connector K5903058 NIO 2MP LED DISPLAY 04/03/2014...
  • Page 10 2. Parts, controls and connectors K5903058 NIO 2MP LED DISPLAY 04/03/2014...

  • Page 11: Display Installation

    Prior to installing your NIO 2MP LED Display and connecting all necessary cables, make sure to have a suitable display controller physically installed in your computer. If you are using a Barco display controller, please consult the user guide delivered with it to do this.

  • Page 12: Removing The Connector Compartment Cover

    3. Display installation If, after installing the display of the system, you change the panel orientation while an image is on the screen, the result depends on the graphic board and the resolution of the image. In some cases the image will be rotated automatically, in other cases it will not be rotated (e.g., when pixels would be lost after rotation).
  • Page 13 3. Display installation 1. Connect the DVI or DP of the display controller to the DVI or DP connector of the display. 2. If you want to make use of the display’s USB upstream connector, connect a PC USB downstream connector to the display’s USB upstream connector.

  • Page 14: Routing The Cables & Reattach The Connector Compartment Cover

    3. Display installation Routing the cables & Reattach the connector compartment cover To route the cables 1. Route all connected cables through the cable routing channel in the stand of your display. Tip: The cable straps at the inside of the connector compartment allow you to fix the cables for better shielding of the cables.
  • Page 15 3. Display installation Use an arm that is approved by VESA (according to the VESA 100 mm stan- ARNING dard). Use an arm that can support the weight of the display. Refer to the technical specifica- tions of this display for the applicable weight. Overview The panel, standard attached to the tilt &...

  • Page 16: First Time Starting Up

    Your NIO 2MP LED Display will be running in a basic video mode at a default refresh rate when first time starting up. If you are using a Barco display controller, please consult the user guide delivered with it to install the drivers, software and documentation. When this is done, your display will automatically detect the connected video input signal(s) and apply the correct video mode and refresh rate.

  • Page 17: Daily Operation

    LCD displays use technology based on pixels. As a normal tolerance in the manufacturing of the LCD, a limited number of these pixels may remain either dark or permanently lit, without affecting the diagnostic performance of the product. To ensure optimal product quality, Barco applies strict selection criteria for its LCD panels.

  • Page 18: Key Indicator Lights

    The ’MediCal QAWeb’ system offers online service for high-grade Quality Assurance, providing maximum diagnostic confidence and uptime. Barco recommends to install MediCal QAWeb Agent and apply the default QAWeb policy at least. This policy includes calibration on regular intervals. Connecting to MediCal QAWeb Server offers even more possibilities.

  • Page 19: Bringing Up The Osd Menus

    4. Daily operation Bringing up the OSD menus How to bring up the OSD menus The OSD menu allows you to configure different settings to make your NIO 2MP LED Display fit your needs within your working environment. Also, you can retrieve general information about your display and its current configuration settings through the OSD menu.
  • Page 20 4. Daily operation Cancel Standby (IEC 60417–5009) K5903058 NIO 2MP LED DISPLAY 04/03/2014...

  • Page 21: Advanced Operation

    5. Advanced operation 5. ADVANCED OPERATION OSD menu language About the OSD menu language By default, the OSD menu comes up in English. However, there’s a wide range of other languages avail- able for the OSD menu of your NIO 2MP LED Display. To change the language of the OSD menu: 1.

  • Page 22: Key Indicator Lights

    Please note that a connection from a PC USB downstream connector to the display’s USB upstream connector is required to be able to use this functionality. Enabling the USB endpoint is only recommended when you are using a non-Barco dis- play controller. If you are using a Barco display controller, this communication will au- tomatically be done over the connected video cable(s).

  • Page 23: Dpms Mode

    By default, DPMS mode is enabled on your display, but it also needs to be activated on your workstation. To do this, go to the “Power options properties” window of your workstation. Barco recommends setting DPMS activation after 20 minutes of non-usage. When DPMS mode is enabled on your display, an additional OSD power saving function becomes available: hibernate.

  • Page 24: Luminance Target

    5. Advanced operation Luminance target About the luminance target The luminance target of your NIO 2MP LED Display is adjustable over a predefined range. When you change the luminance target, the display will adjust its backlight to reach the target. To set the luminance target: 1.

  • Page 25: Reading Rooms

    In short, the DICOM display function results in more visible grayscales in the images. Barco recommends selecting the DICOM display function for most medical viewing applications. User This display function will be automatically selected when display functions are defined by MediCal...

  • Page 26: Display Orientation

    5. Advanced operation CT/MR/NM Corresponds to light conditions in diagnostic reading rooms for computed tomography, magnetic resonance or nuclear medicine scans. Staff Office Corresponds to light conditions in office rooms. Clinical Viewing Room Corresponds to light conditions in diagnostic reading rooms for clinical viewing. Emergency Room Corresponds to light conditions in emergency rooms.

  • Page 27: Edid Timings

    5. Advanced operation 4. Select one of the available input signals and confirm. 5.15 EDID timings About EDID timings Following EDID timings are available for your NIO 2MP LED Display: Refresh Rate Allows to manually select the refresh rate of the image source video input signal depending on the maximum refresh rate of the display controller connected to your display.
  • Page 28 5. Advanced operation 3. Enter the Display, Image Sources, Calibration or Connectivity submenu as desired. K5903058 NIO 2MP LED DISPLAY 04/03/2014...

  • Page 29: Maintenance

    The NIO 2MP LED Display does not require any scheduled maintenance or calibration activities. We recommend to use QAWeb with the Barco default tests and frequencies to calibrate and maintain the display or return the display to a Barco approved maintenance organization. In any case of doubts, contact the Barco Healthcare Division...
  • Page 30 6. Maintenance K5903058 NIO 2MP LED DISPLAY 04/03/2014...

  • Page 31: Important Information

    7. Important information 7. IMPORTANT INFORMATION Safety information General recommendations Read the safety and operating instructions before operating the device. Retain safety and operating instructions for future reference. Adhere to all warnings on the device and in the operating instructions manual. Follow all instructions for operation and use.

  • Page 32: Power Cords

    7. Important information Power cords: • Use a power cord that matches the voltage of the power outlet, which has been approved and complies with the safety standard of your particular country. • Do not overload wall outlets and extension cords as this may result in fire or electric shock. •...

  • Page 33: Environmental Information

    (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
  • Page 34 “Electronic Information Products Pollution Control Labeling Standard” of Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “Standard of Electronic Information Products Environmental Friendly Use Period”...

  • Page 35: Regulatory Compliance Information

    Regulatory compliance information Indications for use The NIO 2MP LED Display (MDNC-2221) is intended to be used in displaying and viewing digital images for review by trained medical practitioners. These devices must not be used in primary image diagnosis in mammography.
  • Page 36 7. Important information Emissions test Electromagnetic environment – Compliance Guidance RF emissions Class B The NIO 2MP LED Display is suitable for use in all CISPR 11 establishments, including Harmonic emissions Class D domestic establishments and IEC 61000-3-2 those directly connected to the Voltage fluctuations/ flicker Complies public low-voltage power supply...
  • Page 37 7. Important information Immunity test Electromagnetic IEC 60601 Compliance level environment – Test levels guidance Voltage dips, short Mains power quality < 5% U (> 95% dip in < 5% U (> 95% dip in interruptions and voltage ) for 0.5 cycle ) for 0.5 cycle should by that of a variations on power...
  • Page 38 7. Important information Immunity test Electromagnetic IEC 60601 Compliance level environment – Test levels guidance survey, should be less than the compliance level in each frequency range. Interference may occur in the vicinity of equipment marked with symbol: At 80 MHz and 800 MHz, the higher frequency range applies. These guidelines may not apply in all situations.

  • Page 39: Explanation Of Symbols

    7. Important information These guidelines may not apply in all situations. Electromagnetic propagation is af- fected by absorption and reflection form structures, object and people. Explanation of symbols Symbols on the device On the device or power supply, you may find the following symbols (nonrestrictive list): Indicates compliance with the Directive 93/42/EEC as Class I device Indicates compliance with the Directive 93/42/EEC as Class II device Indicates compliance with Part 15 of the FCC rules (Class A or Class B)
  • Page 40 7. Important information Indicates the manufacturing date Indicates the temperature limitations for the device to safely operate within specs Indicates the device serial no. Warning: dangerous voltage Caution Consult the operating instructions Indicates this device must not be thrown in the trash but must be recycled, according to the European WEEE (Waste Electrical and Electronic Equipment) directive Indicates Direct Current (DC)

  • Page 41: Legal Disclaimer

    Barco software products are the property of Barco. They are distributed under copyright by Barco N.V. or Barco, Inc., for use only under the specific terms of a software license agreement between Barco N.V. or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized.

  • Page 42: Technical Specifications

    7. Important information Technical specifications Overview Product acronym MDNC-2221 Screen technology IPS-Pro Active screen size (diagonal) 540 mm (21.3”) Active screen size (H x V) 324,9 mm x 433,2 mm (12.79” x 17.1”) Aspect ratio (H:V) Resolution 2MP (1600 x 1200) Pixel pitch 0.27...

  • Page 43: Compatible Display Controllers

    Storage & transport altitude Compatible display controllers Overview Barco strongly recommends to use a Barco display controller with your display. All Barco display con- trollers compatible with your display can be found in the options-tab on the product-page of your display on www.barco.com.

  • Page 44: Open Source License Information

    Open source license usage This product contains software components released under an Open Source license. A copy of the source code is available on request by contacting your Barco customer support representative. EACH SEPARATE OPEN SOURCE SOFTWARE COMPONENT AND ANY RELATED DOCUMENTA- TION ARE PROVIDED "AS IS"...
