Onkyo TX-NR838 Specifications

2014 NEW PRODUCT RELEASE

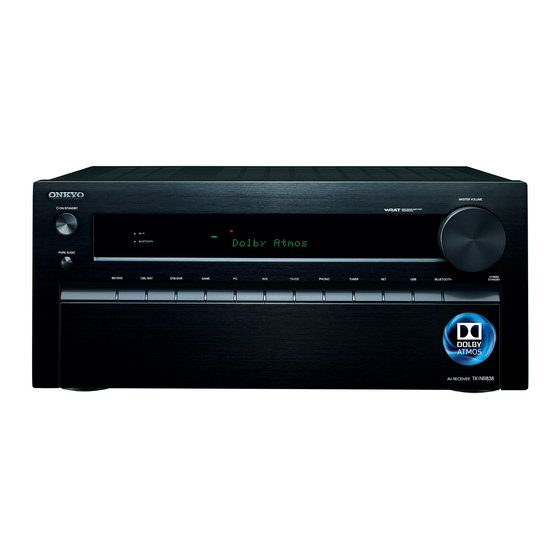

TX-NR838
Spellbinding Entertainment, However You Like It
Destined to intoxicate hi-fi enthusiasts as much as hardcore film and game lovers, the TX-NR838 Network A/V Receiver combines pure analog
power with the latest in high-resolution audio and video processing. This heavyweight receiver is built around Onkyo's "Emotion, Delivered" high-
current amplification concept with a massive customized transformer and discrete Three-Stage Inverted Darlington Circuitry. Hi-fi credentials
are cemented with Pure Direct Analog Path, a selectable mode that shuts down all digital circuitry when you're listening to LPs or other high-
quality audio sources. Signals are routed via the phono or analog inputs to the amps for pristine sound that's completely free of digital noise.
Devotees of high-resolution, meanwhile, can stream their network-attached 5.6 MHz DSD or 192/24 hi-res albums using the remote app, while
listeners seeking an instant fix can enjoy music from smartphone via inbuilt Wi-Fi
edge features for movies and gaming, with 4K/60 Hz-ready HDMI
the sheer power you need for a convincing surround-sound experience.
ADVANCED FEATURES
• THX Select2 Plus Certified for Theater Reference Sound
® ™
• 4K/60 Hz-Capable HDMI Terminals for Ultra HD
®
Entertainment
*1
• Supports HDCP 2.2 Copy Protection for Future 4K
*2
Streaming, Broadcasting, and Premium Studio Content
• Zone 2 HDMI Output for HD Video in a Second Room
• Built-in Wi-Fi ® Certified Wireless LAN Capability
• Bluetooth Version 2.1 + EDR Capability (Compatible Profile: A2DP
v1.2, AVRCP v1.3) with Advanced Music Optimizer DSP Technology
• Three-Stage Inverted Darlington Circuitry on All Channels
• Customized Capacitors and Transformer for High-Current Capability
• Pure Direct Analog Path Mode for Interference-Free Hi-fi
Stereo Listening
• HDMI Video Upscaling to 4K with Qdeo
® ™
Technology by Marvell
• Internet Radio and Music Streaming Subscription Services
Included (TuneIn Radio, Pandora , Slacker , SIRIUS XM
® ™
Internet Radio , Spotify, and AUPEO!)
® *3
• Play Compressed, Lossless, and Hi-res Audio via Local
Network (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis,
AAC, Apple Lossless, DSD 5.6 MHz, LPCM
*4
TrueHD)
• AccuEQ Room Calibration with Mic for Clear and Balanced Sound
• Dolby ® Pro Logic ® IIz Upmixing for 7.1-Channel Surround Sound
• Advanced Music Optimizer to Improve Compressed Digital
Audio Quality (Bluetooth Included)
• Control and Stream with Free Onkyo Remote Streaming Apps
for iPod touch /iPhone and Android Devices
® ®*5
• Frontside MHL for 1080p Video and Stills from Smartphone and Tablet
™
• Overlaid Input Source Preview with InstaPrevue
• Bi-Amping Capability for Front Channels
7.2-Channel Network A/V Receiver
terminals, HDCP 2.2 compatibility for future Ultra HD premium content, and
®
• Powered Zone 2 and Zone 2/3 Line-Outs for Distributed
Audio Playback
• Whole House Mode for Synchronized Housewide Audio
• 7.2 Multichannel Pre-Outs
• PM Bass for Deep Bass and Clear Mid-Range
*1 4K/60 Hz video is supported on HDMI inputs 1/2/3/4, the frontside input, Main Out, and
Sub Out. *2 HDCP 2.2 is supported on HDMI Input 3 and Main Out only. *3 Availability
of services depends on region. Some services may require a paid subscription and firmware
update. Availability of third-party services advertised here is accurate at the time of
publication, but may be subject to change without notice. *4 LPCM is supported via DLNA
only. *5 Compatible with iPod touch (3rd generation or later) and iPhone 3GS or later. All
models require iOS 4.2 or later. *6 Requires Android OS 2.1 or later.
AMPLIFIER FEATURES
• 130 W/Ch (8 Ohms, 20 Hz–20 kHz, 0.08% THD, 2 Channels
Driven, FTC);
Processing
• WRAT (Wide Range Amplifier Technology)
• H.C.P.S. (High Current Power Supply) Massive High Power
Transformer
• Discrete Output Stage Circuitry
• Optimum Gain Volume Circuitry
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology
for S/PDIF Audio
, and Dolby
®
PROCESSING FEATURES
• HDMI for 4K/60 Hz Video, 3D, Audio Return Channel, DeepColor
x.v.Color ™ , LipSync, Dolby
DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
• TI Burr-Brown 192 kHz/24-Bit DAC (8 Channels x 1)
• Dual 32-Bit Digital Signal Processing Engines
*6
• 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
• Theater-Dimensional Virtual Surround Function
Technology
™
• Direct Mode and Pure Audio Mode
and Bluetooth. The TX-NR838 is also packed full of cutting-
®
CONNECTION FEATURES
• 7 HDMI Inputs (1 Front/6 Rear), Zone 1 and Zone 2 Outputs
• Mass Storage Class USB Memory Playback Capability
• Component Video Switching (1 Input and 1 Output)
• 4 Composite Video Inputs (1 Front/3 Rear) and 1 Output
• 5 Digital Audio Inputs (2 Optical and 3 Coaxial)
• 7 Analog Audio Inputs (1 Front/6 Rear)
• Phono Input (MM) for Turntable Connection
• IR Input, 12 V Trigger Out (Zone 2), and RS232 Port
• 2 Parallel Subwoofer Pre-Outs
OTHER FEATURES
• Independent Crossover Adjustment for Each Channel (40/50/
60/70/80/90/100/120/150/200 Hz)
• A/V Sync Control (Up to 800 ms in 10 ms Steps at 48 kHz)
• Graphical Overlaid On-Screen Display (OSD) via HDMI with
Quick Set-Up
• Hybrid Standby Function with HDMI Passthrough
• Smart Grid-Ready
• Tone Control (Bass/Treble) for Front L/R Channels
• 3-Mode Display Dimmer (Normal/Dim/Dimmer, Volume Knob
LED On/Off
• 40 FM/AM Random Presets
,
™
• Certified with DLNA Version 1.5
® TrueHD, DTS-HD Master Audio ™ ,
• Firmware Updates via Ethernet and USB
• RIHD (Remote Interactive Over HDMI) for System Control
• Aluminum Front Panel and Volume Control Knob
• Compatible with RI Dock for iPod/iPhone and AirPlay (DS-A5)
• Preprogrammed RI (Remote Interactive) Remote Control
*Note: Volume knob LED is always off when display is dimmed
BLACK
Microphone for
AccuEQ
)
*
