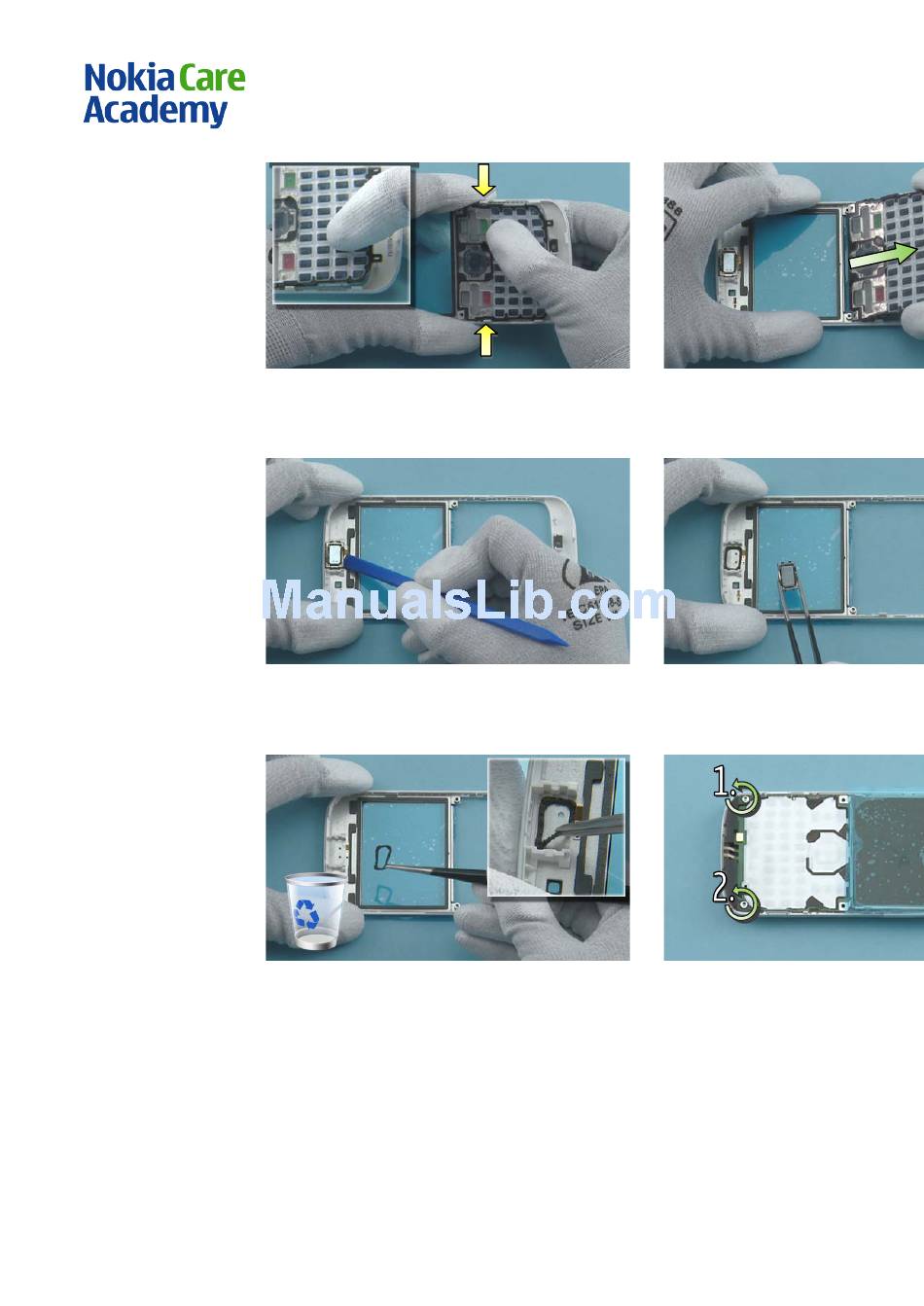

13) Release the clips holding the MAIN KEYMAT on
both sides.
15) Use the SS-93 to release the EARPIECE.
17) Use the tweezers to remove the EARPIECE FRONT
GASKET. Discard the EARPIECE FRONT GASKET.
Conf idential | Copyright © 2011 NOKIA A ll rights reserved
Nokia E5-00
RM-632 / RM-634 / RM-699
Service Manual Level 1&2
14) Lift up the bottom end of the MAI
out the MAIN KEYMAT in the direction
remove it.
16) Remove the EARPIECE with the tw
use it again.
18) Unscrew the four TORX+ size 6 scr
order shown. Note that these screws
Do not discard them!
