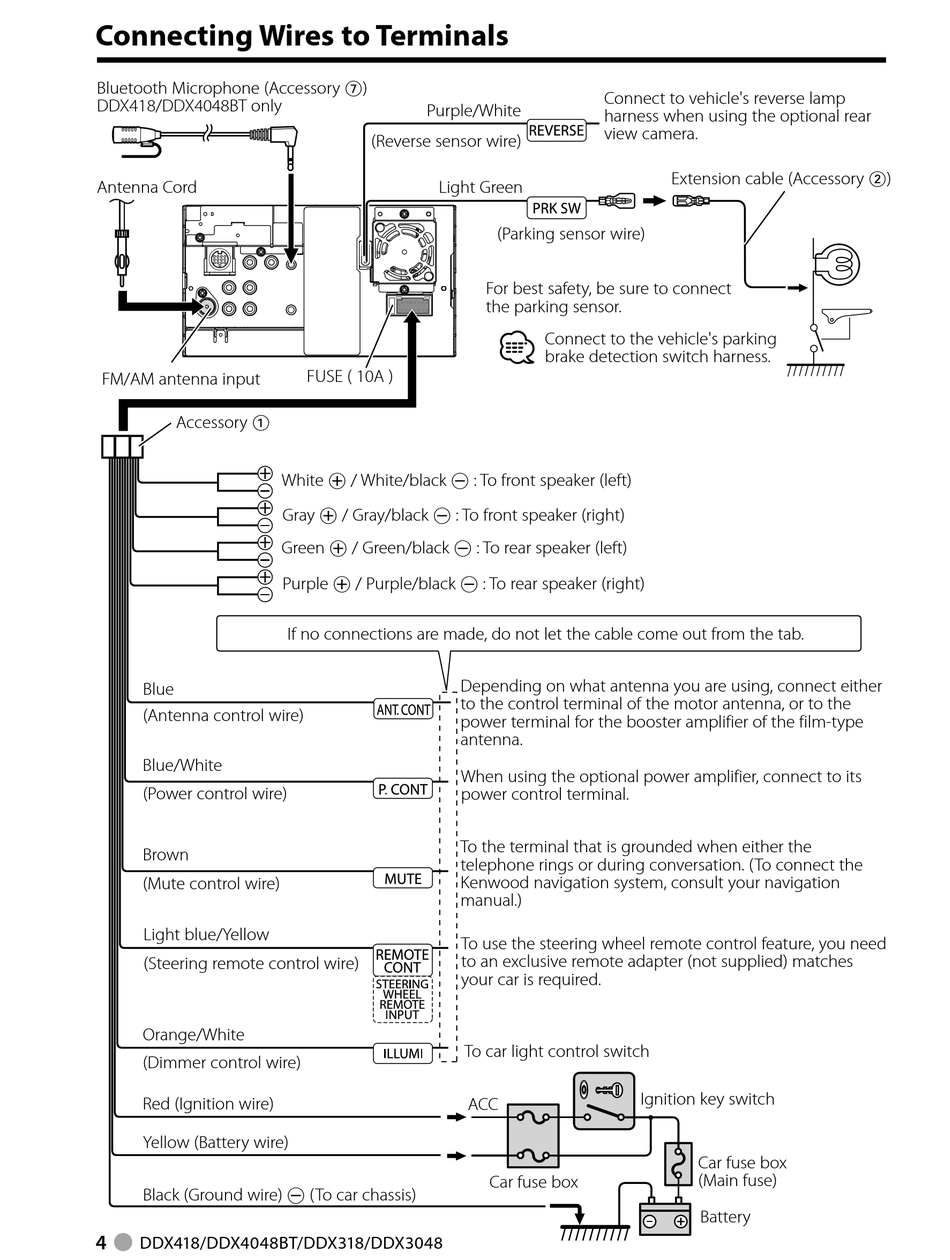

Connecting Wires to Terminals

Bluetooth Microphone (Accessory 7)
DDX418/DDX4048BT only
Antenna Cord
FM/AM antenna input
Accessory 1
White + / White/black - : To front speaker (left)
Gray + / Gray/black - : To front speaker (right)
Green + / Green/black - : To rear speaker (left)
Purple + / Purple/black - : To rear speaker (right)
If no connections are made, do not let the cable come out from the tab.
Blue
(Antenna control wire)
Blue/White
(Power control wire)
Brown
(Mute control wire)
Light blue/Yellow
(Steering remote control wire)
Orange/White
(Dimmer control wire)
Red (Ignition wire)
Yellow (Battery wire)
Black (Ground wire) - (To car chassis)
4
DDX418/DDX4048BT/DDX318/DDX3048
Purple/White
(Reverse sensor wire)
Light Green
(Parking sensor wire)
For best safety, be sure to connect
the parking sensor.
FUSE ( 10A )
Depending on what antenna you are using, connect either
to the control terminal of the motor antenna, or to the
power terminal for the booster amplifier of the film-type
antenna.
When using the optional power amplifier, connect to its
power control terminal.
To the terminal that is grounded when either the
telephone rings or during conversation. (To connect the
Kenwood navigation system, consult your navigation
manual.)
To use the steering wheel remote control feature, you need
to an exclusive remote adapter (not supplied) matches
your car is required.
To car light control switch
ACC
Car fuse box
Connect to vehicle's reverse lamp
harness when using the optional rear
view camera.
Extension cable (Accessory 2)
⁄
Connect to the vehicle's parking
brake detection switch harness.
Ignition key switch
Car fuse box
(Main fuse)
Battery
