Chapter 2—Control Surface & Rear Panel

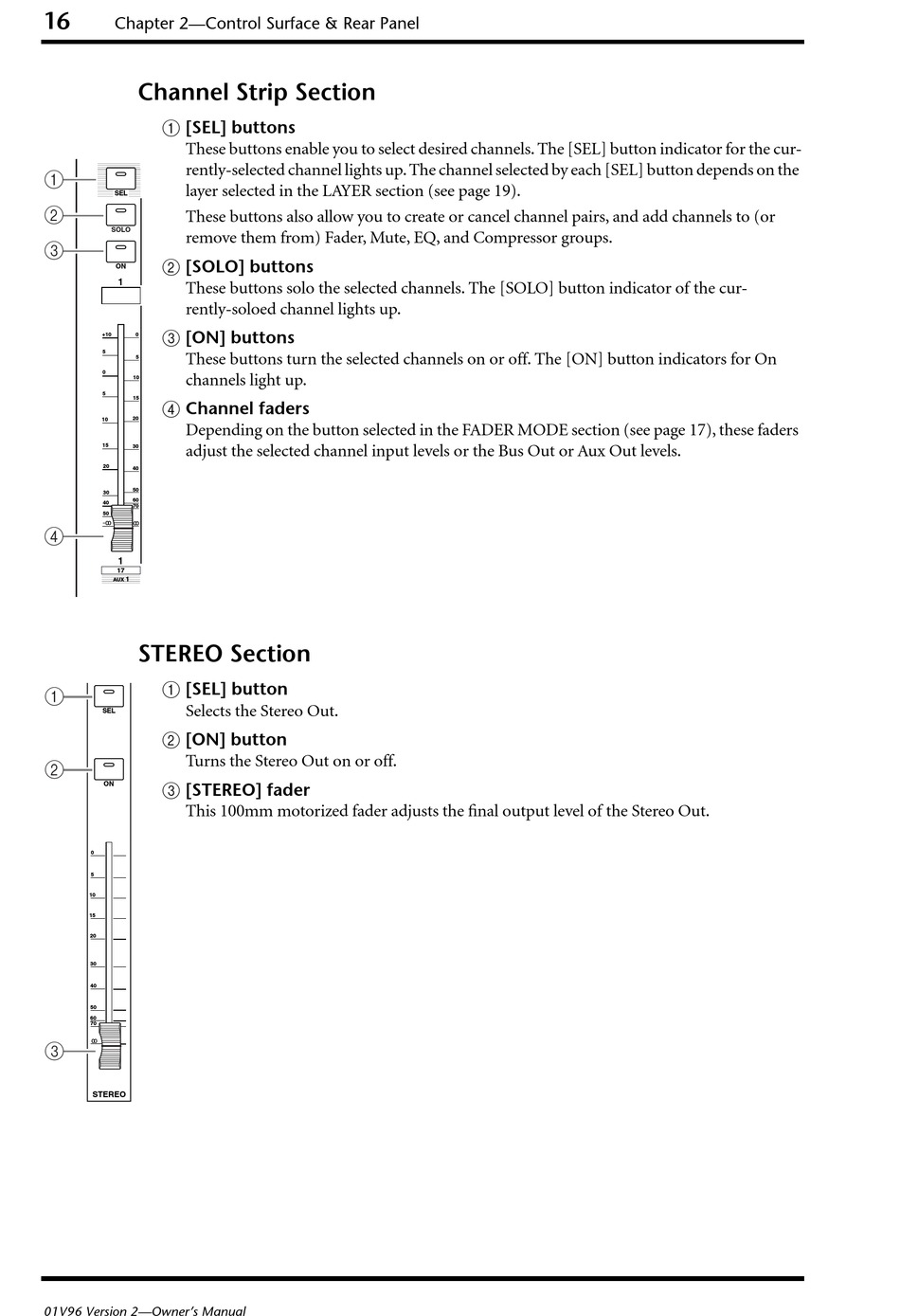

Channel Strip Section
A [SEL] buttons
These buttons enable you to select desired channels. The [SEL] button indicator for the cur-
rently-selected channel lights up. The channel selected by each [SEL] button depends on the
1
layer selected in the LAYER section (see page 19).
SEL
2
These buttons also allow you to create or cancel channel pairs, and add channels to (or
SOLO
remove them from) Fader, Mute, EQ, and Compressor groups.
3
B [SOLO] buttons
ON
1
These buttons solo the selected channels. The [SOLO] button indicator of the cur-
rently-soloed channel lights up.
C [ON] buttons
+10
0
5
These buttons turn the selected channels on or off. The [ON] button indicators for On
5
0
channels light up.
10
5
15
D Channel faders
20
10
Depending on the button selected in the FADER MODE section (see page 17), these faders
15
30
adjust the selected channel input levels or the Bus Out or Aux Out levels.
20
40
50
30
60
40
70
50
4
1
17
1
AUX
STEREO Section
A [SEL] button
1
Selects the Stereo Out.
SEL
B [ON] button
Turns the Stereo Out on or off.
2
ON
C [STEREO] fader
This 100mm motorized fader adjusts the final output level of the Stereo Out.
0
5
10
15
20
30
40
50
60
70
3
STEREO
