Summary of Contents for Clarke HIPPO-3

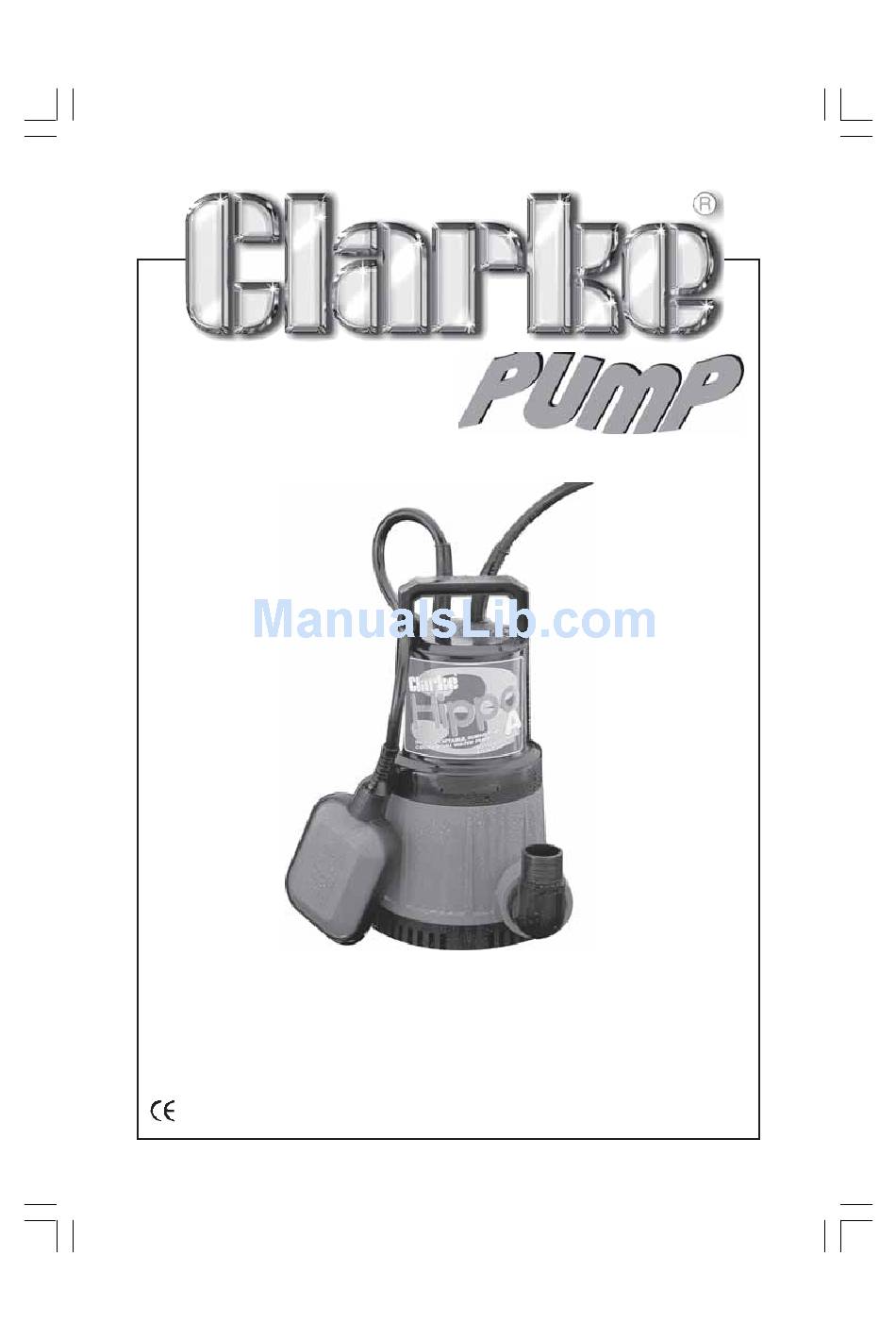

- Page 1 OPERATING & MAINTENANCE INSTRUCTIONS SUBMERSIBLE WATER PUMPS Model Nos. HIPPO-3 and 3A 6/97...
-
Page 2: Safety Precautions
35° C. The HIPPO-3A differs from the HIPPO-3 in that it incorporates a float switch, which automatically switches the pump OFF and ON when the water reaches a pre-determined level. -
Page 3: Electrical Connections
ELECTRICAL CONNECTIONS 230V models should have their mains lead connected to a standard 230Volt (50Hz) electrical supply through an approved plug or a suitably fused isolator switch. 110V models should have their mains lead connected to a suitable 110V supply (50Hz) through an approved plug or suitably fused isolator switch, or to a suitable portable 110V transformer. - Page 4 FEATURES The pumps are of rugged and durable construction, designed for long lasting continuous operation, and the motor is provided with a built in overload protector. For your information, the chart on page 7 illustrates the flow rate at various heads. (HEAD is the distance, or height, from the pump outlet to the highest point of discharge) All models are designed for pumping CLEAN WATER ONLY and will pump down to a water level of 5mm.
- Page 5 These pumps should require no maintenance other than regular cleaning. If the pump starts to show signs of wear or damage, contact your CLARKE dealer for advice. Do not use the pump if there is any damage to the mains supply cable, or to the float switch or its cable.
-
Page 6: Trouble Shooting
The Impeller may be jammed. Disconnect from the mains supply, and remove any objects that may be obstructing the impeller and try again. If the pump still fails to start, consult your CLARKE dealer for advice. 2. Automatic Type (with float switch) Check all above. -
Page 7: Specifications
1” Hose Delivery - Lay flat 7955010 For Spare Parts and Service, please contact your nearest dealer, or CLARKE International, on one of the following numbers. PARTS & SERVICE TEL: 020 8988 7400 PARTS & SERVICE FAX: 020 8558 3622 e-mail as follows: PARTS: Parts@clarkeinternational.com...
