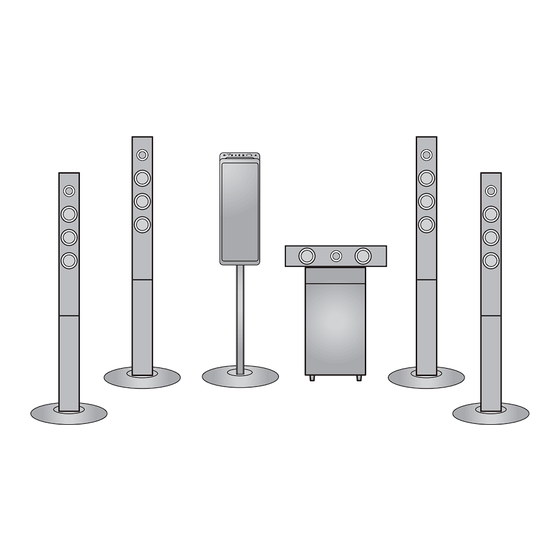

Samsung HT-TKX500 Instruction Manual

Digital home cinema system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
THIS APPLIANCE IS MANUFACTURED BY:
AH68-01660E
AH68-02013P(REV:1.0)
REV: 01

Advertisement

Table of Contents
loading

Related Manuals for Samsung HT-TKX500

Summary of Contents for Samsung HT-TKX500

  • Page 1 THIS APPLIANCE IS MANUFACTURED BY: AH68-01660E AH68-02013P(REV:1.0) REV: 01...
  • Page 2 Instruction Manual DIGITAL HOME CINEMA SYSTEM HT-TKX500 COMPACT COMPACT COMPACT DIGITAL VIDEO DIGITAL AUDIO DIGITAL AUDIO...

  • Page 3: Safety Warnings

    Safety Warnings This symbol indicates that dangerous voltage which CAUTION can cause electric shock is present inside this unit. RISK OF ELECTRIC SHOCK. DO NOT OPEN This symbol alerts you to important operating and maintenance instructions accompanying the unit. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER.

  • Page 4: Precautions

    Precautions Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player or subwoofer. Install your player or subwoofer horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5~10cm). Make sure the ventilation slots are not covered.

  • Page 5: Features

    Anynet+ (HDMI-CEC) Function Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs that support Anynet+.)

  • Page 6: Table Of Contents

    PREPARATION SETUP Safety Warnings ..........2 Settings..............46 Precautions............3 Setting the Language ........46 Features ..............4 Setting TV Screen type........47 Notes on Discs ............6 Setting Parental Controls (Rating Level) ..48 Description............8 Setting the Password........48 Setting the Wallpaper ........49 CONNECTIONS To Select One of the 3 Wallpaper Settings you've made ..........49 Speaker Installation ...........12 DivX (R) registration ........50...

  • Page 7: Notes On Discs

    Notes on Discs DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital surround sound and MPEG-2 video compression technology. Now you can enjoy these realistic effects in the home, as if you were in a movie theater or concert hall.
  • Page 8 Disc Recording Format This product does not support Secure (DRM) Media files. CD-R Discs • Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of the disc. • Use a 650MB/74 minute CD-R disc. Do not use CD-R discs over 700MB/80 minute as they may not be played back.

  • Page 9: Description

    Description Front Panel 1. Power ( ) button 6. Tuning Up & Skip ( ) button (Press and hold for more than 1 second) 7. Volume Control button 2. Function button 8. Eject button 3. Tuning Down & Skip ( ) button (Press and hold for more than 1 second) 4.

  • Page 10: Side Panel

    Side Panel 1. AUX IN 1 Jack 2. USB Port 3. MIC Channel Select Switch 4. TX Card Connection(WIRELESS) Accessories FM Antenna Video Cable User's Manual Remote Control HDMI Cable Core WIRELESS MICROPHONE Screw(Large) : 3EA (Toroidal Ferrite Core) ANTENNA System Cable Screw(Small) : 4EA DVD KARAOKE...

  • Page 11: Remote Control

    Description (Con’t) Remote Control 1. DVD RECEIVER button 2. TV button 3. TV/VIDEO button 4. POWER button 5. Number (0~9) buttons 6. RESERVE button 7. STEP button 8. Tuning Preset/CD Skip buttons 9. VOLUME button 10. MENU button 11. FAVORITE SONG, AUDIO button 12.

  • Page 12: Operation Range Of The Remote Control

    Insert Remote Batteries Remove the battery cover in the direction of the arrow. Insert two 1.5V AAA batteries, paying attention to the correct polarities (+ and –). Replace the battery cover. Follow these precautions to avoid leaking or cracking cells: •...

  • Page 13: Speaker Installation

    Speaker Installation How to Install the Speaker and the Stand STAND BASE Turn the stand upside down and mount it on the stand base. STAND Tighten 4(Black) screws on the bottom side of the stand base. Place the stand on the floor and tighten 2(Silver) on the back of the stand.
  • Page 14 Mount the speaker on the stand. SPEAKER STAND Tighten 2(Silver) screws on the back of the speaker. This is the successfully assembled speaker. • Make sure that the speaker is installed on a flat and stable area. Otherwise it may be easily knocked over.

  • Page 15: Installing The Dvd Player

    Installing the DVD player Mount the stand on the stand base and tighten STAND 4 screws on the bottom side of the stand base. STAND BASE Secure the main unit by aligning 2 protruding points on the back of the main unit with the fixing holes on the stand.
  • Page 16 Open the holder cover of the round board on the bottom of the stand and pass the cables through the holder. Squeeze the cables into the groove on the holder of the round board. Round Table Holder Close the holder cover. Open a Toroidal Ferrite Core by pulling it upward.

  • Page 17: Connecting The Speakers

    Connecting the Speakers Before moving or installing the product, be sure to turn off the power and disconnect the power cord. Selecting the Listening Position Position of the DVD Playerei • The listening position should be located about 2.5 to 3 •...
  • Page 18 Rear of Subwoofer Rear of Main unit AUDIO IN POWER AUDIO IN CROSS OVER Center Speaker Front Speaker (R) Front Speaker (L) Rear Speaker (R) Rear Speaker (L) Connecting the Speakers Press down the terminal tab on the back of the speaker. Insert the black wire into the black terminal (–) and the Black red wire into the red (+) terminal, and then release the...
  • Page 19 Connecting the Speakers (Con’t) Connecting the Main Unit and Subwoofer AUDIO IN POWER AUDIO IN CROSS OVER Rear of Subwoofer Rear of Main unit Use the system cable to connect the AUDIO OUT port of the main unit to the AUDIO IN port of the subwoofer. subwoofer functions Subwoofer: With the built-in, dedicated 165W amplifier, the subwoofer generates rich bass sounds.

  • Page 20: Connecting The Wireless Receiving Amplifier

    Connecting the Wireless Receiving Amplifier To connect the rear speakers wirelessly, you have to purchase the wireless receiving module and TX card from your Samsung retailer. When you have Purchased the Wireless Receiving Module (SWA-000) Rear of Subwoofer Center Speaker...
  • Page 21 Connecting the Wireless Receiving Amplifier (Con’t) Resetting the Wireless Receiving Module Reset the system if a communication failure occurs, or if the Link indicator (blue LED) on the wireless receiver does not light up and the "REAR CHECK" message blinks on the main unit's display. Reset the system while the main unit and the wireless receiver module (SWA-3000) are in Power Standby mode.

  • Page 22: Connecting The Video Out To Your Tv

    See your TV owner's manual for more information on how to select the TV's Video Input source. • If you use an HDMI cable to connect a Samsung TV to the main unit, you can operate the Home Theater using the TV's remote control. This is only available with SAMSUNG TVs that support Anynet+(HDMI-CEC).

  • Page 23: Hdmi Function

    Using Anynet+(HDMI-CEC) Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control, Anynet + can be used by connecting this Home Theater to a SAMSUNG TV using an HDMI Cable. This is only available with SAMSUNG TVs that support Anynet+.

  • Page 24: Connecting Audio From External Components

    Connecting Audio from External Components AUX1 : Side Panel Audio Cable (not supplied) AUX1 : Connecting an External Component/MP player Components such as an MP3 Player Connect AUX IN 1 (Audio) on the Home Theater to the Audio Out of the external component/MP3 player. Press the AUX button on the remote control to select <AUX1>...
  • Page 25 Connecting Audio from External Components (Con’t) AUX : Rear Panel Audio Cable (not supplied) If the external analog component has only one Audio Out, connect either left or right. AUX : Connecting an External Analog Component Analog signal components such as a VCR. Connect AUX IN 2 (Audio) on the Home Theater to Audio Out on the external analog component.
  • Page 26 OPTICAL : Rear Panel Optical Cable (not supplied) OPTICAL : Connecting an External Digital Component Digital signal components such as a Set-Top Box. Connect the Digital Input (OPTICAL 1 or 2) on the Home Theater to the Digital Output of the external digital component. Press the AUX button on the remote control to select <D.IN 1>, <D.IN 2>...

  • Page 27: Connecting The Fm Antenna

    Connecting the FM Antenna FM Antenna (supplied) Connect the FM antenna supplied to the FM 75Ω COAXIAL Jack. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface. •...

  • Page 28: Before Reading The User's Manual

    Before Reading the User's Manual Make sure to check the following terms before reading the user manual. Icons that will be used in manual Icon Term Definition This involves a function available on DVD or DVD-R/DVD-RW discs that have been recorded and finslized in Video Mode. This involves a function available on a data CD (CD-R or CD-RW).

  • Page 29: Before Using Your Home Theater

    Before Using Your Home Theater To Operate your Samsung TV and the Home Theater with the HT-TKX00 Remote Control The DVD Home Theater's remote can be used to control Samsung TVs. Plug the main unit's power cord into the AC power supply.

  • Page 30: Disc Playback

    Disc Playback Load a disc vertically into the Disc Insert Hole. Insert a disc so that the label side faces forward. Playback starts automatically. EJECT button Press the EJECT button on the remote control or press and hold the EJECT button for more than 1 second on the main unit.

  • Page 31: Mp3/Wma-Cd Playback

    MP/WMA-CD Playback Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played. Load the MP3 disc. The MP3/WMA menu screen will appear and playback will start. The appearance of the menu depends on the MP3/WMA disc. WMA-DRM files cannot be played. In Stop mode, use the Cursor $,%,_,+ button to select the album, and then press the ENTER button.

  • Page 32: Jpeg File Playback

    JPEG File Playback JPEG Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this Home Theater. Load the JPEG disc. Playback starts automatically. Each image is displayed for 5 seconds and then the next ...

  • Page 33: Divx Playback

    DivX Playback DivX The functions on this page apply to DivX disc playback. Skip Forward/Back During playback, press the “,” button. Goes to the next file whenever you press the ” button, if there are over 2 files in the disk. Goes to the previous file whenever you press the “...
  • Page 34 If the disc has more than one subtitle file If the disc has more than one subtitle file, the default subtitle may not match the movie and you will have to select your subtitle language as follows: In Stop mode, press the Cursor $,% button, select the desired subtitle ( from the TV screen, and then press the ENTER button.

  • Page 35: Using The Playback Function

    Using the Playback Function Displaying Disc Information JPEG DivX You can view disc playback information on the TV screen. Press the INFO button. Each time the button is pressed, the display changes as follows: The information Display disappears from the screen The information Display disappears from the screen...

  • Page 36: Fast Playback

    Fast Playback DivX Press the (,) button. Each time the button is pressed during playback, the playback speed changes as follows: ( 2X ➞ ( 4X ➞ ( 8X ➞ ( 32X ➞ + PLAY ) 2X ➞ ) 4X ➞ ) 8X ➞ ) 32X ➞ + PLAY •...

  • Page 37: Skipping Scenes/Songs

    Using the Playback Function (Con’t) Skipping Scenes/Songs Press the “,” button. Each time the button is pressed during playback, the previous or next chapter, track or directory (file) will be played. You cannot skip chapters consecutively. TITLE 01/05 CHAPTER 002/045 TITLE 01/05 CHAPTER 004/045 6 6...

  • Page 38: Repeat Playback

    Repeat Playback JPEG DivX Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file). Press the REPEAT button. Each time the button is pressed during playback, the repeat playback mode changes as follows: REPEAT : CHAPTER ➞ REPEAT : TLTLE ➞ REPEAT : OFF REPEAT : TRACK ➞...

  • Page 39: To Select A Repeat Playback Mode In The Disc Information Screen

    Using the Playback Function (Con’t) To Select a Repeat Playback Mode in the Disc Information Screen Press the INFO button twice. Press the Cursor + button to move to REPEAT PLAYBACK ( ) display. Press the Cursor % button to select the desired Repeat Playback mode. To select another album and track, repeat Steps 2 and 3 above.

  • Page 40: A-B Repeat Playback

    A-B Repeat Playback You can repeatedly play back a designated section of a DVD. Press the INFO button twice. Press the Cursor + button to move to REPEAT PLAYBACK ( ) display. Press the Cursor $ , % button to select <A-> and then press ENTER button at the beginning of the desired segment.

  • Page 41: Angle Function

    Using the Playback Function (Con’t) Angle Function This function allows you to view the same scene in different angles. Press the INFO button. Press the Cursor + button to move to ANGLE ( ) display. Press the Cursor $ , % button or numeric buttons to select the desired angle. Each time the button is pressed, the angle changes as follows: •...

  • Page 42: Audio Language Selection Function

    Audio Language Selection Function SUBTITLE 01/03 : KOREAN SUBTITLE 02/03 : ENGLISH SUBTITLE 03/03 : JAPANESE Press the INFO button twice. SUBTITLE OFF SUBTITLE 01/03 : KOREAN Press the Cursor $,% button or numeric buttons to select the desired audio language. SUBTITLE 02/03 : ENGLISH Depending on the number of languages on a DVD disc, a different audio SUBTITLE 03/03 : JAPANESE...

  • Page 43: Moving Directly To A Scene/Song

    Using the Playback Function (Con’t) Moving Directly to a Scene/Song JPEG Press the INFO button. Press the Cursor $,% button or numeric buttons to select the desired ) and then press the ENTER button. title/track ( Press the Cursor _,+ button to move to Chapter ( ) display.

  • Page 44: Using The Disc Menu

    Using the Disc Menu You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc. In Stop mode, press the MENU button. Press the Cursor $,% button to move to <Disc Menu> and then press the ENTER button.

  • Page 45: Playing Media Files Using The Usb Host Feature

    Playing Media Files using the USB Host Feature You can enjoy media files such as pictures, movies and music saved in an MP3 player, USB memory or digital camera in high quality video with 5.1 channel home theater sound by connecting the storage device to the USB port of the home theater. Connect the USB device to the USB port on the side of the unit.
  • Page 46 Compatible Devices 1. USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disc in Windows (2000 or later) without additional driver installation.) 2. MP3 Player : HDD and flash type MP3 players. 3. Digital camera : Cameras that support USB Mass Storage v1.0. •...

  • Page 47: Settings

    Settings Setting the Language OSD(On-Screen Display) language is set to English by default. In Stop mode, press the MENU button. Press the Cursor % button to move to <Setup> and then press the ENTER button. Select <LANGUAGE> and then press the ENTER button. Press the Cursor $,% button to select <OSD LANGUAGE>...

  • Page 48: Setting Tv Screen Type

    Setting TV Screen type Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio. In Stop mode, press the MENU button. Press the Cursor % button to move to <Setup> and then press the ENTER button. Press the Cursor % button to move to <TV DISPLAY>...

  • Page 49: Setting Parental Controls (Rating Level)

    Settings (Con’t) Setting Parental Controls (Rating Level) Use this to restrict playback of adult or violent DVDs you do not want children to view. In Stop mode, press button MENU button. Press button Cursor % button to move to <Setup> and then press button ENTER button.

  • Page 50: Setting The Wallpaper

    This selects one of the 3 wallpaper screens Press the EXIT button to exit the setup screen. • ORIGINAL : Select this to set the Samsung Logo image as your wallpaper. • USER : Select this to set the desired image as your wallpaper.

  • Page 51: Divx (R) Registration

    Settings (Con’t) DivX (R) registration Please use the Registration code to register this player with the DivX (R) video on demand format. To learn more, go to www.divx.com/vod. Setting the Speaker Mode Signal outputs and frequency responses from the speakers will automatically be adjusted according to your speaker configuration and whether certain speakers are used or not.

  • Page 52: Setting The Delay Time

    Setting the Delay Time If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers. In Stop mode, press the MENU button. Press the Cursor % button to move to <Audio>...

  • Page 53: Setting The Test Tone

    Settings (Con’t) Setting the Test Tone Use the Test Tone feature to check the speaker connections. In Stop mode, press the MENU button. Press the Cursor % button to move to <Audio> and then press the ENTER button. Press the Cursor % button to move to <TEST TONE> and then press the ENTER button.

  • Page 54: Setting The Audio

    Setting the Audio You can adjust the balance and level for each speaker. In Stop mode, press the MENU button. Press the Cursor % button to move to <Audio> and then press the ENTER button. Press the Cursor % button to move to <SOUND EDIT> and then press the ENTER button.

  • Page 55: Setting The Drc (Dynamic Range Compression)

    Settings (Con’t) Setting the DRC (Dynamic Range Compression) This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night. In Stop mode, press the MENU button. Press the Cursor % button to move to <Audio>...

  • Page 56: Setting The Hdmi Audio

    Setting the HDMI Audio The audio signals transmitted over the HDMI Cable can be toggled ON/OFF. In Stop mode, press the MENU button. Press the Cursor % button to move to <Audio> and then press the ENTER button. Press the Cursor % button to move to <HDMI AUDIO> and then press the ENTER button.

  • Page 57: Sound Field (Dsp)/Eq Function

    Settings (Con’t) Sound Field (DSP)/EQ Function DSP(Digital Signal Processor) : DSP modes have been designed to simulate different acoustic environments. EQ : You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing. Press the DSP/EQ button.

  • Page 58: Dolby Pro Logic Ii Mode

    Dolby Pro Logic II Mode You can select the desired Dolby Pro Logic II audio mode. PL II MODE button. Press the Each time the button is pressed, the mode changes as follows. MUSIC CINEMA PRO LOGIC MATRIX STEREO ➞ ➞...

  • Page 59: Karaoke

    Karaoke Playing DVD-OK Discs You can enjoy the feeling of a karaoke bar in the comfort of your home. Watch the video and sing along the lyrics displayed on the TV screen against the accompaniment. Use the Numeric (0~9) buttons to select the song you want to play back. Press the PLAY/PAUSE ( ) button or the ENTER button.
  • Page 60 Channel Setup Table Dip Switch NO. Dip Switch NO. • Make sure to set the same channel for main unit. Main unit and microphone should have same channels to enable transmission and reception between them. • Use alkaline battery for power as much s possible. Ordinary battery may cause shorter service life of microphone and main unit and may deteriorate the performance.

  • Page 61: Reserving Accompaniment Music

    Karaoke (Con’t) Reserving Accompaniment Music While the accompaniment is playing, you can reserve the next song you want to sing. Press the Numeric (0~9) buttons to select the song you want to reserve. Press the RESERVE button. The next song is reserved d To Cancel the Reservation Enter the numeric of the song you have reserved.

  • Page 62: Dvd-Ok Repeat Play

    DVD-OK Repeat Play Press the REPEAT button. Each time the button is pressed, the selection changes as follows: REPEAT OFF ➞ REPEAT TRACK ➞ REPEAT DISC ➞ REPEAT RANDOM • RESERVE function will not operate if REPEAT function is set while DVD-OK is played.
  • Page 63 Karaoke (Con’t) Favorite Song Function (Con’t) Deleting FAVORITE SONG During the stop mode, press the FAVORITE SONG button. Press $,% button to select the location to save among FAVORITE1, 2, 3. Press the CANCEL button. Singing FAVORITE SONG During the stop mode, press the FAVORITE SONG button. Press _,+ button to select the location of song among FAVORITE 1, 2, 3.

  • Page 64: Search Song Function

    Search Song Function You can easily do song search on screen without viewing the song list book. Structure of Song Search Items Detailed Items Alphabet RUSSIA NAME/SINGER A ~ Z ENGLISH NAME/SINGER A ~ Z NAME/SINGER A ~ Z UKRAINE DUET SONG ROCK CHANSON...
  • Page 65 Karaoke (Con’t) Search Song Function (Con’t) Searching DUET SONG During the stop mode, press the SEARCH SONG button and then press $,% button to select the <DUET SONG>. Press _,+ button to move to the song list on the bottom. Press $,% button to select the song you want.

  • Page 66: Key Control

    Searching by HITS SONGS During the stop mode, press the SEARCH SONG button and then press $,% button to select the <HITS SONGS>. At this time, press button to move to the song list on the bottom. Press + button to move to the detailed items and then press $,% button to select the hits song.

  • Page 67: Male-Female Key Control

    Karaoke (Con’t) Male-Female Key Control During the playback, press the MALE/FEMALE button. Each time the button is pressed, this selection alternates between Male and Female. Select Male when singing in male voice and select Female when singing in female voice. Setting the Chorus You can set the chorus to ON or OFF.

  • Page 68: Setting The Fanfare

    Setting the Fanfare You can set Fanfare to come out after singing a song. Load a DVD-OK discs. Press MENU button. Press Cursor $,% button to move to <Fanfare>. Press ENTER button to select the desired item. Each time the button is pressed, the selection changes as follows : ON ➞...

  • Page 69: Listening To Radio

    Listening to Radio Remote Control Press the TUNER button to select the FM band. Tune in to the desired station. Automatic Tuning 1 : When the “,” button is pressed, a preset broadcast station is selected. Automatic Tuning  : Press the and hold .,, button to automatically search for active broadcasting stations.

  • Page 70: Presetting Stations

    Presetting Stations Example : Presetting FM 89.10 in the memory Press the TUNER button to select the FM band. Press the .,, button to select <8.10>. Press the TUNER MEMORY button. <CH 1> flashes in the display. Press the “,” button to select preset number. You can select between 1 and 15 presets.

  • Page 71: About Rds Broadcasting

    About RDS broadcasting Using the RDS (Radio Data System) to receive FM stations RDS allows FM stations to send an additional signal along with their regular program signals. For example, the stations send their station names, as well as information about what type of program they broadcast, such as sports or music, etc. When tuned to an FM station which provides the RDS service, the RDS indicator lights up on the display.
  • Page 72 PTY (Program Type) indication and PTY-SEARCH function One of the advantages of the RDS service is that you can locate a particular kind of program from the preset channels by specifying the PTY codes. To search for a program using the PTY codes Before you start, remember...

  • Page 73: Convenient Functions

    Convenient Functions Sleep Timer Function You can set the time that the Home Theater will shut itself off. Press the SLEEP button. Each time the button is pressed, the preset time changes as follows : 10 ; 20 ; 30 ; 60 ; 90 ; 120 ; 150 ; OFF. d To confirm the sleep timer setting, press the SLEEP button.

  • Page 74: Operating A Tv With The Remote Control

    Also, some operations may not be possible depending on your brand of TV. • If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default.
  • Page 75 Realistic 03, 19 Croslex Sampo Crown 00, 15, 16, 17, 40, 43, 46, 47, 48, 49, 59, Samsung 60, 98 Curtis Mates 59, 61, 63 Sanyo 19, 61, 65 02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24,...

  • Page 76: Troubleshooting

    Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. Symptom...
  • Page 77 Troubleshooting (Con’t) Symptom Check/Remedy • Is the TV power on? Disc is rotating but no • Are the video cables connected properly? picture is produced. Picture quality is poor and • Is the disc dirty or damaged? picture is shaking. •...

  • Page 78: Cautions On Handling And Storing Discs

    Cautions on Handling and Storing Discs Small scratches on the disc may reduce sound and picture quality or cause skipping. Be especially careful not to scratch discs when handling them. Handling discs Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface.

  • Page 79: Language Code List

    Language Code List Enter the appropriate code number for the initial settings <Disc Audio>, <Disc Subtitle> and/or <Disc Menu> (See page 46). Code Language Code Language Code Language Code Language 1027 Afar 1181 Frisian 1334 Latvian, Lettish 1506 Slovenian 1028 Abkhazian 1183 Irish...

  • Page 80: Usb Host Feature Supported Products

    Creative MuVo NX128M Creative 128 MB MP3 Player Coolpix 2200 Nikon Digital Camera Iriver H320 Iriver 20G HDD MP3 Player YH-920 Samsung 20G HDD MP3 Player Coolpix 3500 Nikon Digital Camera YP-T7 Samsung MP3 Player Coolpix 3700 Nikon Digital Camera...

  • Page 81: Specifications

    Specifications Main Unit Power Consumption Subwoofer 100W Main Unit 3.1 kg Weight Stand 5.9 kg GENERAL Main Unit 188 x 519 x 86 mm Dimensions (W x H x D) Stand 350 x 350 x 1025 mm Operating Temperature Range +5°C~+35°C Operating Humidity Range 10% ~ 75%...
  • Page 82 5.1ch speaker system Speaker system Front/Center/Rear speaker Subwoofer speaker Impedance 3Ω 3Ω Frequency range 140Hz~20kHz 35Hz~160Hz Output sound pressure level 88dB/W/M 90dB/W/M Rated input 167W 165W SPEAKER Maximum input 334W 330W 106 x 1310 x 85 mm Front/Rear (Stand Base Ø340) Dimensions (W x H x D) 270 x 496 x 410 mm Center...
  • Page 83 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Region Country Customer Care Center  Web Site CANADA 1-800-SAMSUNG(726-7864) www.samsung.com/ca North America MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com...
