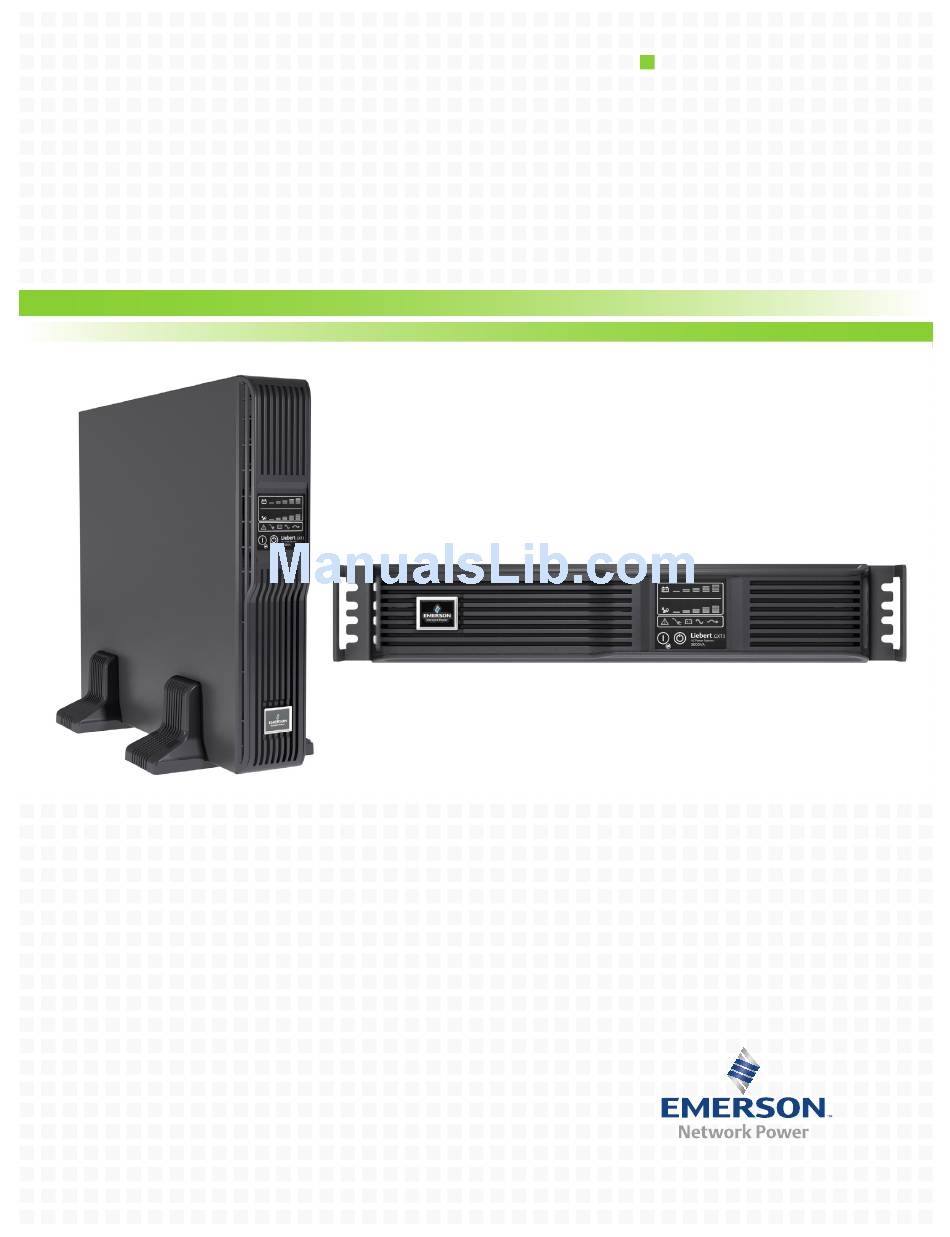

- Page 1 AC Power For Business-Critical Continuity™ Liebert GXT3 UPS 230V 700VA-3000VA ® ™ User Manual...
-
Page 3: Table Of Contents
TABLE OF CONTENTS ..........1 MPORTANT AFETY RECAUTIONS... - Page 4 Shut Down the Liebert GXT3 ..........20 Disconnecting Input Power from the Liebert GXT3....... . 20 .
- Page 5 Figure 3 Rear panel components, Liebert GXT3 230V 2000VA models ......5 Figure 4 Rear panel components, Liebert GXT3 230V 3000VA models .
-
Page 7: Important Safety Precautions
This UPS is not intended for use with life support and other designated critical devices. Maximum load must not exceed that shown on the UPS rating label. This UPS is designed for data processing equipment. If uncertain, consult your local dealer or Emerson representative. - Page 8 Class A digital device. Operating this device in a residential area is likely to cause harmful interfer- ence that users must correct at their own expense. The Liebert GXT3 series complies with the requirements of EMC Directive 2004/108/EC and the pub- lished technical standards. Continued compliance requires installation in accordance with these instructions and use of accessories approved by Emerson.
-
Page 9: Glossary Of Symbols
LOSSARY OF YMBOLS Risk of electrical shock Indicates caution followed by important instructions AC input AC output Requests the user to consult the manual Indicates the unit contains a valve-regulated lead acid battery PbH2SO4 Recycle DC voltage Equipment grounding conductor Bonded to ground AC voltage ON/Alarm Silence/Battery Test... -
Page 10: Product Description
The Liebert GXT3 is a compact, online uninterruptible power system (UPS) that continuously condi- tions and regulates its output voltage. The Liebert GXT3 is designed to supply microcomputers and other sensitive electronic equipment with clean sine wave input power, 700VA to 3000VA at 230V. -
Page 11: Appearance And Components
Appearance and Components 1.3.1 Appearance The Liebert GXT3 rack/tower models in various power ratings have the same general appearance, controls and features (see Figure 1). The various rack/tower models differ largely in the type of receptacles each has. Figure 1... -
Page 12: Major Components
DC-to-DC converter, battery, dynamic bypass and UPS output. Transient Voltage Surge Suppression (TVSS) and EMI/RFI Filters The Liebert GXT3 has surge protection and filters that protect the connected load from power surges and sags, electromagnetic interference (EMI) and radio frequency interference (RFI). These features can minimize any surges or interference present in the mains power. -
Page 13: Operating Mode
UPS. Inverter In normal operation, the Liebert GXT3’s inverter utilizes the DC output of the PFC circuit to produce precise, regulated sine wave AC power. When mains power fails, the inverter receives DC power from the battery through the DC-to DC converter. In either operation mode, the UPS inverter is online, continuously generating clean, precise, regulated AC output power. -
Page 14: Manual Bypass Mode
• Frequency Converter - 50Hz – Bypass Disabled • Frequency Converter - 60Hz – Bypass Disabled NOTE The default for all models of the Liebert GXT3 is “Auto Sensing - 50Hz or 60 Hz – Bypass Enabled.” CAUTION Do not touch the AC input receptacle when the UPS is operating. AC input voltages may still... -
Page 15: Installation
Installation Clearances Maintain a clearance of at least 100mm (4 inches) in the front and rear of the Liebert GXT3. Do not obstruct the air inlets on the front panel and rear panel of the UPS; blocking the air inlets reduces ventilation and heat dissipation, shortening the service life of the Liebert GXT3. -
Page 16: Tower Installation
2. If optional Liebert external battery cabinets will be connected to the Liebert GXT3, take out the spacers delivered with the battery cabinet. 3. Connect the spacers and the support bases as shown in Figure 6. Each Liebert GXT3 needs two assembled support bases, one in the front and one in the rear. -
Page 17: Rack Installation
Rack Installation NOTE • When the Liebert GXT3 is installed in a rack, the UPS must be supported by a shelf, brackets, or slide rails on each side. The factory-supplied ears cannot support the weight of the UPS. They are used to move the UPS into and out of the rack and attach the UPS to the rack. -
Page 18: Figure 11 Installing Rear Member Of Each Bracket Assembly
Installation 3. Determine the desired height and mounting position of the Liebert GXT3 inside the rack’s vertical rails. CAUTION Reduce risk of tipping the rack by installing the Liebert GXT3 in the lowest possible rack position. 4. Attach the rear member of each bracket assembly to the rack’s vertical rails with two factory- supplied M5 screws (see Figure 11). -
Page 19: Figure 14 Installing Inner Members
Installation Figure 14 Installing inner members Liebert GXT3 UPS Inner Member Retaining Latch M4 screw , 8 pieces 9. Use M4 screws to install ears of accessories on both sides of the UPS, as shown in Figure 15. Figure 15 Installing ears... -
Page 20: Cable Connection
Up to four external battery cabinets can be connected to the Liebert GXT3. Each cabinet will increase the battery recharge time. Cable Connection The Liebert GXT3 rear panel has an input receptacle and output receptacles. Refer to 1.3.2 - Rear Panel Features for details. The battery cables are supplied with the battery cabinet. 2.5.1... -
Page 21: Connecting Communication Cables
Installing the Optional Liebert IntelliSlot Card and Communication Cables 1. Remove the protective cover of the Liebert IntelliSlot port on the Liebert GXT3 and set it aside. 2. Insert the Liebert IntelliSlot card into the Liebert IntelliSlot port and secure it with screws. -
Page 22: Operation And Display Panel
Operation and Display Panel PERATION AND ISPLAY ANEL The operation and display panel, shown in Figure 17, is on the front panel of the Liebert GXT3 (see Figure 1). Figure 17 Operation and display panel Battery Level Indicators Load Level Indicators... -
Page 23: Indicators
The battery level indicator is composed of five sets of LED bars that illuminate and flash to indicate the battery capacity level. The Liebert GXT3 battery capacity level is shown in 20% increments (±5%). The battery level indicators will illuminate as shown in Figure 18. -
Page 24: Ups Status Indicators
Operation and Display Panel 3.2.2 UPS Status Indicators UPS status is indicated by five symbols: fault indicator, AC input indicator, battery indicator, inverter indicator and bypass indicator. Table 5 shows the symbols and their meanings. Table 5 UPS status indicators UPS Status Indicator Icon... -
Page 25: Operation
UPS and disconnecting the mains power from the UPS. NOTE The Liebert GXT3’s battery has been fully charged before delivery, but some charge will be lost during storage and shipping. To ensure that the battery has adequate reserve power to protect the connected load, charge the battery for three hours before putting the UPS into service. -
Page 26: Shut Down The Liebert Gxt3
Power to the connected loads is now Off. Disconnecting Input Power from the Liebert GXT3 1. After the UPS has been shut down as detailed in 4.5 - Shut Down the Liebert GXT3, disconnect the input cable plug. 2. Wait 30 seconds and verify that all indicators have turned Off and the fan has stopped; this indicates that the power-off is complete. -
Page 27: Communication
The Liebert IntelliSlot 485 Card is used to connect the UPS and computer system. Follow instructions provided with the Liebert IntelliSlot card to configure Liebert MultiLink, the UPS or any additional ancillary product for the Liebert GXT3. These instructions are available at: multilink.liebert.com 5.1.1... -
Page 28: Usb Port Communication
5.2.1 Configuration Program Accessing the Configuration Program via USB is a new feature of the Liebert GXT3. For most users, the factory default settings will be adequate. This section illustrates the features available for modifi- cation, as well as the factory default setting. -
Page 29: Terminal Block Communication
When the Auto-Enable output option is selected and the UPS output is disabled using Pin 1 and Pin 2, the Liebert GXT3’s output can turn On automatically and without warning if the Pin 1 and Pin 2 connection is changed. -
Page 30: Battery Mode Shutdown
This timer cannot be stopped once triggered. If the mains power returns during this countdown, the Liebert GXT3 will still shut down and must remain shut down for 10 seconds. Whether the UPS turns back on when the power is restored depends on the auto-restart setting. -
Page 31: Maintenance
UPS functions. Replacing the Internal Battery Pack The Liebert GXT3 is designed to allow the user to replace the internal battery pack safely. Read the safety cautions before proceeding. Contact your local dealer or Emerson representative to obtain the part number and pricing of the appropriate replacement battery pack. -
Page 32: Battery Charging
The Liebert GXT3 charges the batteries continuously when it is connected to the mains input power. If the Liebert GXT3 will be stored for a long time, Emerson recommends connecting the UPS to input power for at least 24 hours every four to six months to ensure full recharge of the batteries. -
Page 33: Checking Ups Functions
3. Press the On/Alarm Silence/Manual Battery Test button for three seconds after Inverter Mode. The UPS should initiate a battery self-test. Check to determine whether the battery is operating normally. If not, stop and contact your local Emerson representative or Emerson Channel Support... -
Page 34: Troubleshooting
UPS Symptoms The following symptoms indicate the Liebert GXT3 is malfunctioning: • The relative indicators illuminate, indicating the UPS has detected a problem. • An alarm buzzer sounds, alerting the user that the UPS requires attention. -
Page 35: Audible Alarm
Check load level indicator and reduce the load on the UPS has reduced battery UPS is overloaded UPS. backup time Replace batteries. Contact your local dealer, Emerson Batteries may not be able to representative or Emerson Channel Support for hold a full charge due to age replacement battery kit. - Page 36 When reporting a UPS issue to Emerson, include the UPS model and serial number. These are on the top panel of the Liebert GXT3.
-
Page 37: Figure 25 Battery Cabinet
Battery Cabinet ATTERY ABINET Optional battery cabinets are available for the Liebert GXT3. The battery port and input breaker are on the battery cabinet’s rear panel, as shown in Figure 25. For battery cabinet specifications, refer to Table 12. Figure 25 Battery cabinet... -
Page 38: Specifications
Specifications PECIFICATIONS The specifications of the Liebert GXT3 are listed in Table 10 and Table 11. Table 10 Specifications of GXT3-700RT230 and GXT3-1000RT230 UPS Product model Parameters GXT3-700RT230 GXT3-1000RT230 Model Rating 700VA/630W 1000VA/900W Dimensions, D x W x H, mm (in) -
Page 39: Table 11 Specifications Of The Liebert Gxt3-1500Rt230, Gxt3-2000Rt230 And Gxt3-3000Rt230
Specifications Table 11 Specifications of the Liebert GXT3-1500RT230, GXT3-2000RT230 and GXT3-3000RT230 Product model Parameters GXT3-1500RT230 GXT3-2000RT230 GXT3-3000RT230 Model Rating 1500VA/1350W 2000VA/1800W 3000VA/2700W Dimensions, D x W x H, mm (in) 497 × 430 × 85 602 × 430 × 85 Unit (19.6 x 16.9 x 3.3) -
Page 40: Table 12 Operating Temperature Parameters
Specifications Table 12 Battery cabinet specifications Model Number Parameter GXT3-48VBATT GXT3-72VBATT GXT3-700RT230, GXT3-1000RT230, Used w/UPS Model GXT3-1500RT230, GXT3-2000RT230 GXT3-3000RT230 Dimensions, D x W x H, mm (in) 497 × 430 × 85 602 × 430 × 85 Unit (19.7 x 16.9 x 3.3) (23.6 x 16.9 x 3.3) 617 x 570 x 262 717 x 570 x 262... -
Page 41: Product Warranty Registration
To register for warranty protection, visit the Quick Links section of the Liebert Web site at: http://www.liebert.com Click on Product Warranty Registration and fill in the form. If you have any questions, contact Emerson Channel Applications Engineering at: North America: 800-222-5877 Outside North America: 00-800-1155-4499... - Page 42 Specifications...
- Page 44 Racks & Integrated Cabinets Connectivity Embedded Power Power Switching & Controls Services DC Power Monitoring Precision Cooling Surge Protection Business-Critical Continuity, Emerson Network Power and the Emerson Network Power logo are trademarks and service marks of Emerson Electric Co. ©2009 Emerson Electric Co.
