Page 1: Washing Machine
LAVADORA WASHING MACHINE ZWD 2100 MANUAL DE USO USER MANUAL 132987860... -
Page 2: Table Of Contents
Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged. -
Page 3: Warnings
Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. Installation • Leave the porthole door slightly ajar when the appliance is not in use. This preserves the door •... -
Page 4: Disposal
Disposal Packaging materials The symbol on the product or on its packaging The materials marked with the symbol indicates that this product may not be treated as recyclable. household waste. Instead it shall be handed over to >PE<=polyethylene the applicable collection point for the recycling of >PS<=polystyrene electrical and electronic equipment. -
Page 5: Installation
Installation Unpacking 6. Plug all the holes with the plugs which you will All transit bolts and packing must be find in the envelope containing the instruction removed before using the appliance. booklet. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again. -
Page 6: Water Drainage
The inlet hose must not be lengthened. If it is too The drain hose must not be kinked. Run it along the short and you do not wish to move the tap, you will floor; only the part near the drainage point must be have to purchase a new, longer hose specially raised. -

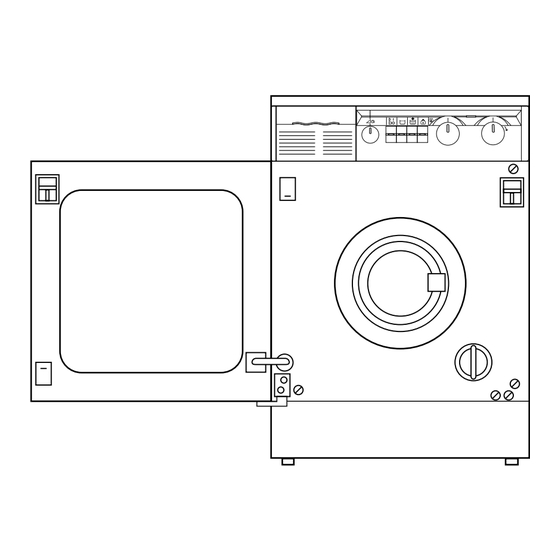

Page 7: Door Reversal
Door reversal The opening direction of the outer door on this washing machine can be reversed. To carry out this operation, proceed as follows: 1) Disengage the end of the opening stop (1) from the door and turn it through 90° to remove it from its seat (Fig. -
Page 8: Your New Washing Machine
Your new washing machine This new machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. • The temperature selector dial will allow you to choose the most suitable temperature for your laundry. •... -
Page 9: Use
Control panel 1 Programme chart 5 Anti-crease button It will help you to choose the most suitable washing Using this option the last rinse water is not emptied programme for your laundry. out, so as to avoid creasing if the laundry is not removed from the machine immediately after washing. -
Page 10: Washing Hints
Washing hints Sorting the laundry Washing a maximum load makes the most efficient use of water and energy. Follow the wash code symbols on each garment For heavily soiled laundry, reduce the load size. label and the manufacturer’s washing instructions. Sort the laundry as follows: whites, coloureds, synthetics, delicates, woollens. -
Page 11: Detergents And Additives
stains with methylated spirits. Remove any residual The bleaching agent (chlorine) can be used only for marks from white fabrics with bleach. white or fast coloured cotton and linen items. Pour it into the compartment marked Red wine: soak in water and detergent, rinse and treat with acetic or citric acid, then rinse. -
Page 12: International Wash Code Symbols
International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not... -
Page 13: Operating Sequence
Operating sequence 4. Select the temperature Before washing your first load of laundry, we recommend that you run a cotton cycle at 60°C, Turn the dial to the required setting. with the machine empty, in order to remove any manufacturing residue from the drum and tub. Pour half a measure of detergent into the main wash compartment and start up the machine. - Page 14 7. At the end of the programme The machine stops automatically. If you have selected a programme which ends with the water of the last rinse left in the tub (option drain the water before opening the door. Select programme “N” (drain) or depress again button Wait one or two minutes before opening the door to give the electric locking mechanism time to release...
-
Page 15: Washing Programmes
Programme table Washing programmes for cotton and linen Load: 5 kg Consumptions* Additional Programme Temp. Fabrics functions Energy Water Duration min. 60°-90° WHITES WITH PREWASH, for example work garments, sheets, household linen, underwear, towels 40°-60° COLOUREDS WITH PREWASH, sheets, underwear, towels, shirts,blouses WHITES WITHOUT PREWASH, for 60°-90°... - Page 16 Programme table Washing programmes for synthetics, mixed fabrics, delicates and wool Load: 2.5 kg, wool 2 kg Addi- Consumptions* tional Programme Temp. Fabrics func- Energy Water Duration tions min. 30°-60° SYNTHETICS WITH PREWASH, for 1.25 example underwear, coloured items, shirts, blouses 30°-60°...
-
Page 17: Maintenance
Maintenance 1. Bodywork Place a container under the filter and unscrew it. Clean the outside of the machine with warm water and a neutral, non-abrasive household detergent. Rinse with clean water and dry with a soft cloth. Important: do not use methylated spirits, solvents or similar products to clean the bodywork. -
Page 18: Emergency Emptying Out
5. Emergency emptying out If the water is not discharged (outlet pump is blocked, filter or drain hose are clogged), proceed as follows to empty out the machine: • pull out the plug from the power socket; • close the water tap; •... -
Page 19: Something Not Working
Something not working? Problems which you can resolve yourself. Problem Possible cause • The machine does not start up: • The door is not firmly closed. • The machine is not plugged in or there is no power at the socket. •... - Page 20 Problem Possible cause • Spinning starts late or the machine • The electronic unbalance detection device has cut in because the laundry is not evenly distributed in does not spin: the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume.
