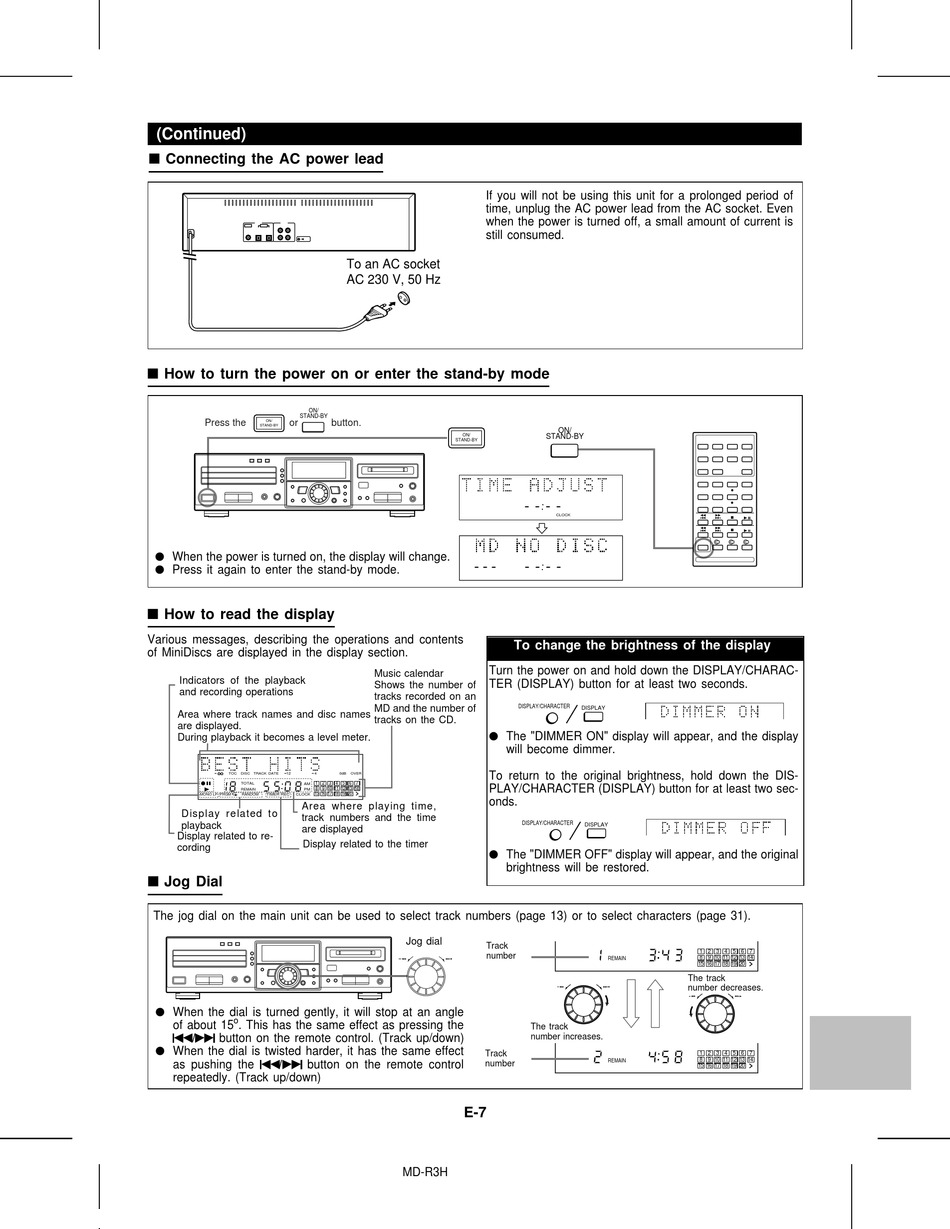

Sharp MD-R3H Operation Manual page 13

(Continued)
Connecting the AC power lead
How to turn the power on or enter the stand-by mode
ON/
STAND-BY
Press the ON/ or
STAND-BY
When the power is turned on, the display will change.
Press it again to enter the stand-by mode.
How to read the display
Various messages, describing the operations and contents
of MiniDiscs are displayed in the display section.
Indicators of the playback
and recording operations
Area where track names and disc names
are displayed.
During playback it becomes a level meter.
12
TOC DISC TRACK DATE
TOTAL
AM
REMAIN PM
MONO LP PRGM RANDOM TIMER REC CLOCK
Area where playing time,
D isplay related to
track numbers and the time
playback
are displayed
Display related to re-
Display related to the timer
cording
Jog Dial
The jog dial on the main unit can be used to select track numbers (page 13) or to select characters (page 31).
5 4
When the dial is turned gently, it will stop at an angle
o
of about 15 . This has the same effect as pressing the
5 4
/ button on the remote control. (Track up/down)
When the dial is twisted harder, it has the same effect
as pushing the / button on the remote control
repeatedly. (Track up/down)
To an AC socket
AC 230 V, 50 Hz
button.
ON/
STAND-BY
Music calendar
Shows the number of
tracks recorded on an
MD and the number of
tracks on the CD.
4 0dB OVER
1 2 3 4 5 6 7
8 9 10 11 12 13 14
15 16 17 18 19 20
Jog dial
E-7
MD-R3H
If you will not be using this unit for a prolonged period of
time, unplug the AC power lead from the AC socket. Even
when the power is turned off, a small amount of current is
still consumed.
ON/
STAND-BY
CLOCK
To change the brightness of the display
Turn the power on and hold down the DISPLAY/CHARAC-
TER (DISPLAY) button for at least two seconds.
DISPLAY/CHARACTER
DISPLAY
The "DIMMER ON" display will appear, and the display
will become dimmer.
To return to the original brightness, hold down the DIS-
PLAY/CHARACTER (DISPLAY) button for at least two sec-
onds.
DISPLAY/CHARACTER
DISPLAY
The "DIMMER OFF" display will appear, and the original
brightness will be restored.
Track
number
REMAIN
The track
number increases.
Track
REMAIN
number
1 2 3 4 5 6 7
8 9 10 11 12 13 14
15 16 17 18 19 20
The track
number decreases.
1 2 3 4 5 6 7
8 9 10 11 12 13 14
15 16 17 18 19 20
