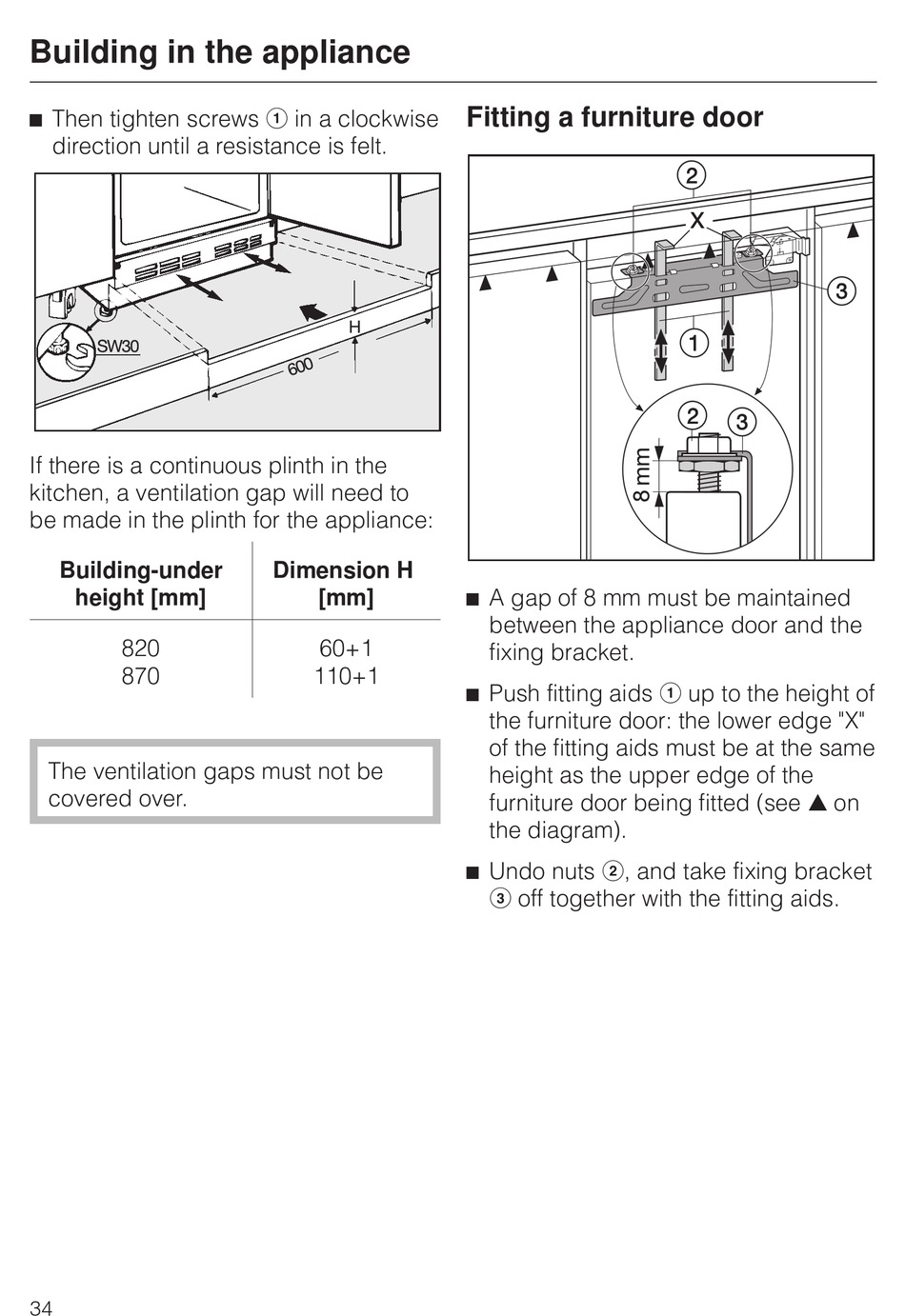

Building in the appliance
^ Then tighten screws a in a clockwise
direction until a resistance is felt.
If there is a continuous plinth in the
kitchen, a ventilation gap will need to
be made in the plinth for the appliance:
Building-under
height [mm]
820
870
The ventilation gaps must not be
covered over.
34
Dimension H
[mm]
60+1
110+1

Fitting a furniture door

^ A gap of 8 mm must be maintained
between the appliance door and the
fixing bracket.
^ Push fitting aids a up to the height of
the furniture door: the lower edge "X"
of the fitting aids must be at the same
height as the upper edge of the
furniture door being fitted (see - on
the diagram).
^ Undo nuts b, and take fixing bracket
c off together with the fitting aids.
