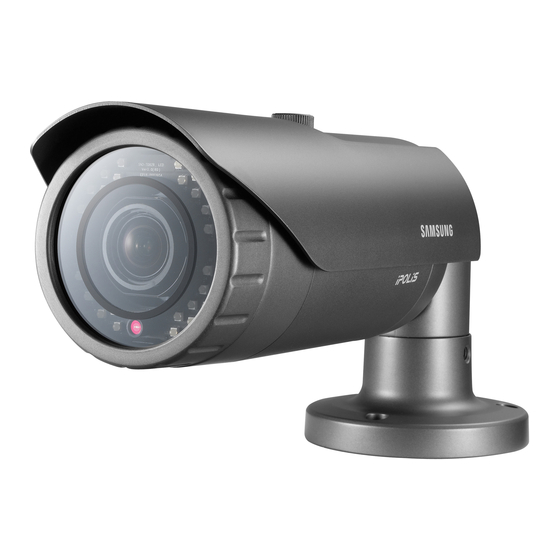

NETWORK CAMERA

User Manual
SNO-7082R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNO-7082R and is the answer not in the manual?

Questions and answers

Related Manuals for Samsung SNO-7082R

Summary of Contents for Samsung SNO-7082R

  • Page 1: Network Camera

    NETWORK CAMERA User Manual SNO-7082R...

  • Page 2: User Manual

    Disclaimer Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility.

  • Page 3: Important Safety Instructions

    overview important Safety inStructionS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions.

  • Page 4: Explanation Of Graphical Symbols

    overview warninG TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
  • Page 5 Battery Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Disconnection Device Disconnect the main plug from the apparatus, if it’s defected. And please call a repair man in your location. when used outside of the u.S., it may be used Har code with fittings of an approved agency is employed.
  • Page 6 overview Please read the following recommend safety precautions carefully. y Do not place this apparatus on an uneven surface. y Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area. y Do not place this apparatus near conductive material.

  • Page 7: Table Of Contents

    contentS oveRview Important Safety Instructions Product Features Recomended PC Specifications Recomended SD/SDHC Memory Card Specifications What’s Included At a Glance iNSTALLATioN & Installation CoNNeCTioN Memory Card Information Connecting with other Device NeTwoRk CoNNeCTioN Connecting the Camera Directly AND SeTup to Local Area Networking Connecting the Camera Directly to a DHCP Based DSL/Cable Modem...

  • Page 8: Web Viewer

    overview web vieweR Connecting to the Camera Login Installing Silverlight Runtime Installing STW WebViewer Plugin Using the Live Screen Playing the recorded video SeTup SCReeN Setup Video & Audio Setup Network Setup Event Setup System Setup AppeNDix Specification Product Overview Troubleshooting Open Source Announcement 8_ overview...

  • Page 9: Product Features

    The dustproof and waterproof design makes you feel at ease when installing the product outdoors or exposing it to rain. y SSnr3 (Samsung Super noise reduction) The high-performance DSP chip effectively removes the GAIN noise of low light level and shows a clear and sharp image even in dark places.

  • Page 10: Recomended Pc Specifications

    overview y motion Detection Detects motion from the camera’s video input. y intelligent video analysis Analyzes video to detect logical events of specified conditions from the camera’s video input. y face Detection Detects faces from the camera’s video input. y audio Detection Detects sound louder than a certain level specified by user.

  • Page 11: Recomended Sd/Sdhc Memory

    recomenDeD SD/SDHc memory carD SpecificationS y 4GB ~ 32GB y For your camera, we recommend you use a memory card from the following manufacturers: SD/SDHC Memory Card : Sandisk, Transcend y It is recommended to use memory cards of at least class 6 speed. wHat’S incLuDeD Please check if your camera and accessories are all included in the product package.
  • Page 12 overview at a GLance front Side Item Description Sunshield It protects the camera from the direct sunlight. Sunshield Hold It fixes the sunshield with the camera. IR LED These infrared LED's are controlled by the illumination sensor. Illumination Sensor Detects incoming light to control the IR LED. Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you have applied ethanol.
  • Page 13 rear Side Item Description Power Port Used to plug the power cable. Network Port Used to connect a PoE or LAN cable. Connected to the monitor so that you can check the video from the camera. Video Output Port (for installation) Audio In Jack Used to connect to a microphone.
  • Page 14 overview Item Description BROWN (ARM-IN) Used to connect the alarm input sensor. SKY-BLUE (GND) Earth-grounding port for external signal. YELLOW Used to connect the alarm output signal. (ARM-OUT) I/O Port Common port where the alarm output signal is ORANGE (A-COM) connected.

  • Page 15: Outdoor Installation

    installation & connection inStaLLation This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed. outdoor installation When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable...

  • Page 16: Connecting With Other Device

    installation & connection memory carD information what is a memory card? The memory card is an external data storage device that has been developed to offer an entirely new way to record and share video, audio, and text data using digital devices. memory card instructions y This product is equipped with an internal 4GB memory card.

  • Page 17: Ethernet Connection

    The BNC Out terminal of the product is provided for easier installation, and is not recommended for monitoring purposes. If you keep the BNC cable connected, a risk of lightening may cause damage or malfunction to the product. ethernet connection Connect the Ethernet cable to the local network or to the Internet.

  • Page 18: Connecting To Audio Input/Output

    installation & connection connecting to audio input/output Speaker Microphone network CAUTION: Be ware of the Rated Voltage and Polarity of the power connection. Microphone Microphone Speaker 1. Connect the AUDIO IN port of the camera with the microphone directly or LINE OUT port of the amplifier that the microphone is connected to.
  • Page 19 connecting the alarm i/o signal Connect the alarm input/output signal using the I/O ports of the cable. ALARM SENSOR Port Description Port Description ARM-IN Alarm Input Sensor Port Earth-grounding Port ARM-OUT A-COM Alarm out Alarm Out (common) to connect the alarm input signal Connect one strand of each signal line (2-strand) of the sensors to the [arm-in] port, and connect the other strand to the [GnD] port.

  • Page 20: Connecting The Camera Directly

    network connection and setup You can set up the network settings according to your network configurations. connectinG tHe camera DirectLy to LocaL area networKinG connecting to the camera from a local pc in the Lan 1. Launch an Internet browser on the local PC. 2.

  • Page 21: Connecting The Camera Directly To A Dhcp

    connectinG tHe camera DirectLy to a DHcp BaSeD DSL/caBLe moDem INTERNET DSL/Cable Modem External Remote PC Camera DDNS Server (Data Center, KOREA) 1. Use the cross LAN cable to connect the network cable directly to your PC. 2. Run the IP Installer and change the IP address of the camera so that you can use the web browser on your desktop to connect to the Internet.
  • Page 22 network connection and setup connectinG tHe camera DirectLy to a pppoe moDem INTERNET PPPoE Modem External Remote PC Camera DDNS Server (Data Center, KOREA) 1. Use the cross LAN cable to connect the network cable directly to your PC. 2. Run the IP Installer and change the IP address of the camera so that you can use the web browser on your desktop to connect to the Internet.

  • Page 23: Pppoe/Cable Modem

    connectinG tHe camera to a BroaDBanD router witH tHe pppoe/caBLe moDem This is for a small network environment such as homes, SOHO and ordinary shops. Camera INTERNET PPPoE or PPPoE or Broadband Cable Modem Cable Modem Router External Remote Camera DDNS Server (Data Center, KOREA) Local PC...

  • Page 24: Buttons Used In Ip Installer

    network connection and setup ButtonS uSeD in ip inStaLLer Item Description Model name of the connected camera. Device Name Click the column to sort the list by model name. However, search will be stopped if clicked during the search. Alias This function is not currently implemented.

  • Page 25: Static Ip Setup

    Exits the IP Installer program. For the IP installer, use only the installer version provided in the installation CD or use the latest one if available. You can download the latest version from the Samsung web site (www.samsungcctv.com). Static ip Setup manual network Setup Run <ip installer_v2.XX.exe>...
  • Page 26 network connection and setup 3. In the <address> pane, provide the necessary information. y MAC (Ethernet) Address : The MAC address imprinted on the camera label is automatically displayed and requires no user setting. You can configure the static IP settings only if the DHCP checkbox is unchecked.
  • Page 27 if using a Broadband router y IP Address : Enter an address falling in the IP range provided by the Broadband Router. ex) 192.168.1.2~254, 192.168.0.2~254, 192.168.XXX.2~254 y Subnet Mask : The <Subnet mask> of the Broadband Router will be the <Subnet mask>...

  • Page 28: Auto Network Setup

    network connection and setup auto network Setup Run <ip installer_v2.XX.exe> to display the camera search list. At the initial startup, both [auto Set] and [manual Set] will be grayed out. For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not support this function.

  • Page 29: Dynamic Ip Setup

    Dynamic ip Setup Dynamic ip environment Setup y Example of the Dynamic IP environment - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server - If connecting the camera directly to modem using the DHCP protocols - If IPs are assigned by the internal DHCP server via the LAN checking the Dynamic ip 1.

  • Page 30: Manual Port Range Forwarding

    network connection and setup port ranGe forwarD (port mappinG) Setup If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the Broadband Router so that a remote PC can access the camera in it. manual port range forwarding 1.
  • Page 31 Setting up port range forward for several network cameras When several network cameras are connected to one Broadband Router device, you should forward the TCP 943 port of the router to the TCP 943 port of a connected camera. If you don’t set properly the TCP 943 port of the router, you cannot get any video stream from the web page of the camera.

  • Page 32: Connecting To The Camera From A Shared Local Pc

    network connection and setup connectinG to tHe camera from a SHareD LocaL pc 1. Run the IP Installer. It will scan for connected cameras and display them as a list. 2. Double-click a camera to access. The Internet browser starts and connects to the camera.

  • Page 33: Connecting To The Camera

    web viewer connectinG to tHe camera normally, you would 1. Launch the Internet browser. 2. Type the IP address of the camera in the address bar. ex) • IP address (IPv4) : 192.168.1.100  http://192.168.1.100 - the Login dialog should appear. •...
  • Page 34 To register your device to the <DDnS> server, visit www.samsungipolis.com and register your device first, and then set the Web Viewer’s <network> - <DDnS> to <Samsung DDnS>, as well as providing <product iD> that had been used for DDNS registration.

  • Page 35: Installing Silverlight Runtime

    inStaLLinG SiLverLiGHt runtime If your PC has not installed Silverlight Runtime or has just installed an old runtime version, you will be redirected to the Silverlight Runtime installation page automatically when accessing the web viewer. ` to install on windows oS 1.
  • Page 36 web viewer 5. When done, click <close>. ` to install on mac oS 1. Run the file trailing with “.dmg”. 2. Run the install package file automatically created, ending with “.pkg”. 3. Click <continue>. 36_ web viewer...
  • Page 37 4. Select your language on the language selection screen, and click <continue>. 5. Click <agree>. 6. Click <install>. English _37...
  • Page 38 web viewer 7. Enter the password of the account currently logged in, and click <install Software> and continue. 8. Once completed, click <close>. 38_ web viewer...
  • Page 39 “There is no VC++ 2010 runtime installed. Please install the runtime library.” Run the vcredist_x86.exe file which can be found from Samsung website at www.samsungcctv.com or the provided installation CD. The vcredist_x86.exe file is installer program of Microsoft’s Visual Studio 2010 redistributable package for 32-bit operating systems.

  • Page 40: Using The Live Screen

    web viewer uSinG tHe Live Screen Item Description Monitoring Move to the monitoring screen. Playback Switch to the monitoring screen that plays recording data in the SD memory. Setup Move to the Setup screen. Displays the Live video on the screen. Viewer Screen You can use the mouse wheel to activate the digital zooming in Viewer screen.

  • Page 41: To Capture The Snapshot

    Item Description Full Screen Switch the current video to the maximum size of the monitor. Capture Saves the snapshot as an image file in the .bmp or .jpg format. Audio/Microphone Enable/disable audio and microphone, and controls volume. Control Alarm output Activate the Alarm Out port.
  • Page 42 web viewer to fit the full screen 1. Click the [full Screen ( )] button. 2. This will fit the Viewer to the full screen. 3. To exit the full screen mode, press [esc] on the keyboard. For the Internet Explorer and Google Chrome browser, you can switch to the full screen. to control the audio sound 1.
  • Page 43 pLayinG tHe recorDeD viDeo Before you can play the video, you must configure the record settings. For details on record settings, refer to “Storage”. (page 73) name of event search screen and its function Item Description Search range setting Set the search date and time from the data saved in the SD memory card. Search event setting Set the event type to search within the search period.

  • Page 44: To Play The Content After Searching By Event

    web viewer to play the content after searching by event 1. Click the [playback ( )] button. 2. Specify the start time and end time of your search. 3. Select an event type for your search within the specified period. 4.
  • Page 45 name of time search screen and its function Item Description Time bar The section in the specific period is played by moving the time bar. Set the search date using the calendar. Search date setting Dates for which there is video in the SD memory card are displayed within the boxes on the calendar.

  • Page 46: To Play After Searching By Time

    web viewer Item Description Video information Time data of the replayed video is displayed on the screen. Time zone is set to back up the video saved in the SD memory card. Backup Can be set as up to 5 minutes. to play after searching by time 1.
  • Page 47 to back up the searched video 1. During playback, click [ ] on the scene to back up. The scheduling window for backup start and end time appears. 2. Click [ ] button. The Save As window appears. 3. Confirm the save path and click [Save] button.

  • Page 48: Video Profile

    setup screen Setup You can configure the video & audio, network, event and system settings of the camera in the network. 1. In the Live screen, click [ Setup ( ) ] . 2. The Setup screen appears. Microsoft Silverlight 4.0 or higher is required to be installed on the PC for setup pages that provide preview video.
  • Page 49 6. Click the input box of each item and enter / select a desired value. The context menu may differ depending on the selected codec type. • Default profile : If no profile is selected when using the Web Viewer, the default video profile is applied.

  • Page 50: To Add A Video Profile

    setup screen to add a video profile You can add as many codecs as necessary so that a variety of profiles can be applied according to the recording condition. 1. Select one from the <video profile> options. 2. Provide the name and select a codec. 3.

  • Page 51: Video Setup

    • Multicast(SVNP) : Specify the use of the SVNP protocol. - IP address : Enter an IPv4 address with which you can connect to the IPv4 network. - Port : Specify the video communication port. - TTL : Set the TTL for the SVNP packet. •...

  • Page 52: Audio Setup

    setup screen to set the privacy zone You can specify a certain area of the camera video to be protected for your privacy. 1. Select the <on> and click the [apply )] button. Region selection becomes available. 2. Select the type and color masking of desired privacy area.

  • Page 53: Camera Setup

    • Codec : Sets the codec to be used. - G.711 : A audio codec standard, it uses 64 Kbps PCM (Pulse Code Modulation) encoding. ITU standard audio codec that is adequate for digital voice transfer in PSTN network or through a PBX. - G.726 : ITU standard audio codec applying ADPCM (Adaptive Differential Pulse Code Modulation) for variable bit rates of 40/32/24/16 Kbps to 64 Kbps PCM encoding.
  • Page 54 SSDr (Samsung Super Dynamic range) Setup In a scene where the difference between bright and dark is severe, you can increase the brightness of the dark area alone to regulate the overall brightness. 1. Select <SSDr>. 2. Set <mode> to <on>.
  • Page 55 BLc Setup You can specify a desired area on the video manually and set the area to be displayed more clearly. 1. Select <Backlight>. 2. Set <mode> to <BLc>. 3. Set <BLc level>. You can change the level to adjust the brightness of the monitoring area.
  • Page 56 setup screen wDr Setup It displays a sharp image of the objects in a scene where both bright and dark areas exist. 1. Select <Backlight>. 2. Set <mode> to <wDr>. 3. Specify the <wDr level>. If applied with WDR, noise may be found on the border between the brighter and darker areas.
  • Page 57 exposure Setup You can adjust the exposure level of the camera. 1. Select <exposure>. 2. Select each item and set it properly. • Brightness : Adjust the screen brightness. • Shutter mode : Adjust the electronic shutter of the camera. - ESC (Electronic shutter control) : Adjust the shutter speed automatically according to the...
  • Page 58 setup screen Special Setup 1. Select <Special>. 2. Select each item and set it properly. • Day & night : You can switch the mode to adjust the black and white level as well as the colors. - Color : Always displays the video in colors.
  • Page 59 oSD Setup 1. Select <oSD>. 2. Select each item and set it properly. • Camera title : Specify whether or not to display the camera title on the screen. You can enter up to 15 characters for the title. • Camera title position X, Y : Specify the coordinates where the camera title is displayed on the screen.
  • Page 60 setup screen Smart codec setup Set a desired area of the video incoming from the camera as ROI area and specify the detection sensitivity for the area. 1. From the Setup menu, select the <video & audio ( )> tab. 2.

  • Page 61: Focus Setup

    focus setup You can adjust the focus and zoom ratio of video image. 1. From the Setup menu, select the <video & audio ( )> tab. 2. Click <focus setup> . 3. Set the focus and zoom. • Focus : Manually adjusts the lens focus (Far <->...

  • Page 62: Network Setup

    setup screen networK Setup interface 1. From the Setup menu, select the <network ( )> tab. 2. Click <interface>. 3. Set the <interface> and <ipv6 setup> as necessary. • IP type : Select an IP connection type. - Manual : Specify the IP address, Subnet mask, Gateway, DNS1, and DNS2.
  • Page 63 Setting the HTTP port for Safari and Google Chrome browsers to 65535 is not allowed by security policy. • Device port : Set a port used to transfer video signals with the Samsung protocols. • RTSP port : Used to transfer videos in the RTSP mode; the default is 554.
  • Page 64 • Samsung DDNS : Select this if you use the DDNS server provided by Samsung Techwin. - Product ID : Enter the product ID that is registered with the Samsung DDNS service. - Quick connect : It sets port forwarding automatically when used with a UPnP (Universal Plug and Play) supporting router.

  • Page 65: Registering With Ddns

    DDnS to register your product with the Samsung DDnS 1. Visit the iPOLiS web site (www.samsungipolis.com) and sign in with a registered account. 2. From the top menu bar, select <DDnS Service> - <my DDnS>. 3. Click [proDuct reGiStration].
  • Page 66 Samsung DDnS in camera setup 1. From the DDNS setup page, set <DDnS> to <Samsung DDnS>. 2. Provide the <product iD> that you registered product ID with the DDNS site. 3. Click [apply (...
  • Page 67 ip filtering You can create a list of IPs that you want to grant or deny access to them. 1. From the Setup menu, select the <network ( )> tab. 2. Click <ip filtering>. 3. Select <filtering type>. • Deny : If selecting this, access from those IPs that are added to the filtering will be restricted.
  • Page 68 setup screen You can select a secure connection system or install the public certificate for this purpose. 1. From the Setup menu, select the <network ( )> tab. 2. Click <SSL>. 3. Select a secure connection system. To access the camera using HTTPS mode, you have to type the IP address for the camera in the form of “https://<Camera_IP>”.
  • Page 69 802.1x When connecting network, you can choose whether using 802.1x protocol, and then install the certification. 1. From the Setup menu, select the <network ( )> tab. 2. Click <802.1x>. 3. Set the <ieee 802.1x setting(eapoL using eap-tLS)>. • Enable IEEE 802.1x : Specify the use of the 802.1x protocol.
  • Page 70 setup screen You can specify the priority to secure a stable transfer rate for a specific IP. 1. From the Setup menu, select the <network ( )> tab. 2. Click <QoS>. 3. Click the [add ( )] button. The IP list will be created. 4.

  • Page 71: Event Setup

    • Enable SNMP v3 : SNMP version 3 will be active. - Password : Specify the default password for SNMP version 3. The default password is <admin4321>. The default password can be exposed to a hacking thread so it is recommended to change the password after installing the product.
  • Page 72 setup screen - Port : The default port of the FTP server is 21; however, you can use a different port number according to the FTP server settings. - Passive mode : Select <on> if you need to connect in passive mode due to the firewall or the FTP server settings.
  • Page 73 Storage You can set the record conditions or the use of recording for the SD memory, check the size of stored data, or format the SD memory itself. 1. From the Setup menu, select the <event ( )> tab. 2. Click <Storage>. to make recording on the SD memory 1.

  • Page 74: Alarm Input

    setup screen alarm input You can set the alarm input type, activation time, and operation mode. 1. From the Setup menu, select the <event ( )> tab. 2. Click <event setup>. 3. Select <alarm input> from <event action setup>. 4. Set whether or not to <enable>. 5.

  • Page 75: Time Schedule

    time schedule You can set to save the video data at a certain interval as scheduled regardless of the actual occurrence of the event. 1. From the Setup menu, select the <event ( )> tab. 2. Click <event setup>. 3. Select <time schedule> from <event action setup>.

  • Page 76: Tampering Detection

    setup screen tampering detection You can set to detect tampering attempts and trigger events, such as sudden change of camera’s framing direction, blocked lens and other overall change of scenes from the video. 1. From the Setup menu, select the <event ( )>...

  • Page 77: Motion Detection / Video Analytics

    motion detection / video analytics Events of motion detection and video analysis can be set to trigger event signal output. 1. From the Setup menu, select the <event ( )> tab. 2. Click <event setup>. 3. Select <motion detection / video analytics>...
  • Page 78 setup screen Motion detection and Video analytics cannot be used simultaneously. Before using, set the minimum and maximum motion sizes to suit desired motion range to be detected. Detected size of an object may have difference with the actual size according to its shape. Up to 16 objects from the top side of the screen can be displayed.

  • Page 79: To Use Motion Detection

    to use motion detection It detects a motion that meets all conditions specified by sensitivity, size and area. 1. Select a motion detection mode. 2. Select <Sensitivity> tab to set the sensitivity level. You can set the sensor’s sensitivity to detect a motion out of the background from the monitoring video.
  • Page 80 setup screen 4. Select <area> tab. You can specify an area on the screen to include or exclude the area to/from detection. You can specify up to 4 areas. • Detection area: Sets the entire screen as excluded from detection, and adds specified area as motion detection area.
  • Page 81 to use video analytics It detects event that meets all conditions specified by sensitivity, size and area and the event condition rules. 1. Select the video analysis mode. 2. Set <Sensitivity>, <Size> and <area>. For further details on settings, refer to “to use motion detection”.
  • Page 82 setup screen to set the video analysis rules ` passing 1. Set the type to <passing, entering/ exiting>. 2. Set the event rule to <virtual line based rules>. 3. On the screen, click on preferred starting and ending point of the virtual line, then a popup window appears.
  • Page 83 ` appearing (Disappearing) 1. Set the analysis type to <appearing (Disappearing)>. 2. Select the desired event rule: • Defined area based rules : It detects event of appearing object that appears in the area and remaining for a certain time period while not passing through the area borders, and opposite case of disappearing of objects existed in the area.

  • Page 84: Face Detection

    setup screen face detection You can set to detect recognized face and trigger an event accordingly. 1. From the Setup menu, select the <event ( )> tab. 2. Click <event setup>. 3. Select <face detection> from < event action setup> . 4.

  • Page 85: Audio Detection

    audio detection You can set to detect sound over the specified level and trigger an event accordingly. 1. From the Setup menu, select the <event ( )> tab. 2. Click <event setup>. 3. Select <audio detection> from <event action setup> . 4.
  • Page 86 setup screen alarm output setup 1. From the Setup menu, select the <event ( )> tab. 2. Click <alarm output setup>. 3. Set the camera’s type of alarm output. If you change the alarm output type, the alarm out button on the monitoring page and alarm output type displayed on Event Setup page will be changed accordingly.

  • Page 87: System Setup

    SyStem Setup product information 1. From the Setup menu, select the <System ( )> tab. 2. Click <product information>. 3. Check the camera information, or provide details according to your network environment. • Model : Model name of the product. •...

  • Page 88: Date & Time

    setup screen Date & time 1. From the Setup menu, select the <System ( )> tab. 2. Click <Date & time>. 3. Specify the time and date that will be applied to the camera. • Current system time : Displays the current time settings of your system.
  • Page 89 user 1. From the Setup menu, select the <System ( )> tab. 2. Click <user>. 3. Provide the necessary user information. • Administrator password change : Change the password for the administrator. The default password can be exposed to a hacking thread so it is recommended to change the password after installing the product.
  • Page 90 setup screen upgrade / reboot 1. From the Setup menu, select the <System ( )> tab. 2. Click <upgrade / reboot>. 3. Select a desired item and set it appropriately. • Upgrade : Performs upgrading the system. • Factory default : Resets the system to the factory default.
  • Page 91 If you forcibly terminate the upgrade process, upgrade will not be completed properly. During restarting the system, accessing with web viewer will not be made. You can download the latest version from the Samsung web site (www.samsungcctv.com). to back up the current settings 1.
  • Page 92 setup screen You can check the system log or event log. 1. From the Setup menu, select the <System ( )> tab. 2. Click <Log>. 3. Select a log type. • System : You can check the system logs where any system changes are recorded including the time information.
  • Page 93 profile access You can check the profile information. 1. From the Setup menu, select the <System ( )> tab. 2. Click <profile access>. • Profile access : Show the information of the newly added profile. - Profile : Show the information of the newly added codec.
  • Page 94 Off / On (96dB) Wide Dynamic Range 3M Mode : 20fps, 2M Mode : 30fps Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On) Digital Noise Reduction SSNRIII (2D+3D Noise Filter) (Off / On) Digital Image Stabilization - 94_ appendix...
  • Page 95 Items Description Motion Detection Off / On (4 Rectangular zones) Privacy Masking Off / On (1ea 4 Point Polygonal + 16ea Rectangular zones) Sens-up Off / Auto (2X ~ 60X) (Frame Integration) AGC (Auto Gain Control) Off / Low / Medium / High White Balance ATW / AWC / Manual / Indoor / Outdoor Electronic Shutter Speed Auto / A.FLK / Manual (1/30 ~ 12,000sec)
  • Page 96 appendix Items Description <3M Mode> * H.264 : Max 20 fps at all resolutions * MJPEG : 800x600 ~ 320x180 - 20 fps, 1024x768 ~ 1920x1080 - 15 fps, Max. Framerate 2048x1536 - 10 fps <2M Mode> * H.264 : Max 30 fps at all resolutions * MJPEG : 800x600 ~ 320x180 - 30 fps, 1024x768 ~ 1920x1080 : 15 fps Smart Codec...
  • Page 97 Web Viewer Firefox 9.0 or higher, Chrome 15.0 or higher, Safari 5.1 or higher Central Management NET-i viewer, Samsung Security Manager Software AC24V : -50°C ~ +55°C (-58°F ~ +131°F) / Less than 90% RH Operating Temperature / DC12V, PoE : -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH Humidity * Heater works at AC power input.

  • Page 98: Product Overview

    appendix proDuct overview Unit : mm (inch) 383 (15.28) 220 (8.66) 55 (2.17) 114 (4.49) 50 (1.97) 57 (2.24) 45 (1.77) (1.05) 196 (7.63) 163 (6.42) 359 (14.13) Ø114 (4.49) Ø92 98_ appendix...

  • Page 99: Troubleshooting

    trouBLeSHootinG PROBLEM SOLUTION y Check to make sure that the camera’s Network settings are appropriate. y Check to make sure that all network cables have been connected properly. I can’t access the camera from a y If connected using DHCP, verify that the camera is able to acquire web browser.
  • Page 100 appendix PROBLEM SOLUTION y Verify the settings in the following sequence: <Motion detection / Video analytics> of <Event setup> is set A. Check <Data & Time> settings. to <Enable>, but no notification B. The <Motion detection / Video analytics> should be set to <Enable>. e-mail reaches me even when an C.

  • Page 101: Open Source Announcement

    Corresponding Source code from us for a period of three years after our last shipment of this product by sending email to help.cctv@samsung.com If you want to obtain the complete Corresponding Source code in the physical medium such as CD-ROM, the cost of physically performing source distribution might be charged.
  • Page 102 4. You may not copy, modify, sublicense, or distribute the c) If the modified program normally reads commands interactively when run,you must cause it, when started Program except as expressly provided under this License. running for such interactive use in the most ordinary Any attempt otherwise to copy, modify, sublicense or way, to print or display an announcement including distribute the Program is void, and will automatically...
  • Page 103 9. The Free Software Foundation may publish revised and/ This program is distributed in the hope that it will be or new versions of the General Public License from time useful, but WITHOUT ANY WARRANTY ; without even the to time. Such new versions will be similar in spirit to implied warranty of MERCHANTABILITY or FITNESS FOR the present version, but may differ in detail to address A PARTICULAR PURPOSE.
  • Page 104 To protect your rights, we need to prevent others from that (1) displays an appropriate copyright notice, and (2) denying you these rights or asking you to surrender tells the user that there is no warranty for the work (except the rights.
  • Page 105 3. protecting users’ Legal rights from anti-circumvention a) Convey the object code in, or embodied in, a physical Law. product (including a physical distribution medium), accompanied by the Corresponding Source fixed on a No covered work shall be deemed part of an effective durable physical medium customarily used for software technological measure under any applicable law fulfilling interchange.
  • Page 106 occurs as part of a transaction in which the right of permits relicensing or conveying under this License, possession and use of the User Product is transferred to the you may add to a covered work material governed by recipient in perpetuity or for a fixed term (regardless of how the terms of that license document, provided that the the transaction is characterized), the Corresponding Source further restriction does not survive such relicensing or...
  • Page 107 11. patents. 12. no Surrender of others’ freedom. A “contributor” is a copyright holder who authorizes use If conditions are imposed on you (whether by court order, under this License of the Program or a work on which the agreement or otherwise) that contradict the conditions of Program is based.
  • Page 108 A FAILURE OF THE PROGRAM TO OPERATE WITH ANY Finally, software patents pose a constant threat to the OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER existence of any free program. We wish to make sure that PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF a company cannot effectively restrict the users of a free SUCH DAMAGES.
  • Page 109 The “Library”, below, refers to any such software library Thus, it is not the intent of this section to claim rights or or work which has been distributed under these terms. A contest your rights to work written entirely by you; rather, “work based on the Library”...
  • Page 110 6. As an exception to the Sections above, you may also a) Accompany the combined library with a copy of the same combine or link a “work that uses the Library” with the work based on the Library, uncombined with any other Library to produce a work containing portions of the library facilities.
  • Page 111 enD of termS anD conDitionS 12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted How to Apply These Terms to Your New Libraries If you interfaces, the original copyright holder who places develop a new library, and you want it to be of the greatest the Library under this License may add an explicit possible use to the public, we recommend making it free...
  • Page 112 6. Redistributions of any form whatsoever must retain THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ‘‘AS the following acknowledgment: “This product includes IS AND ANY EXPRESS OR IMPLIED WARRANTIES, software developed by the OpenSSL Project for use in the INCLUDING, BUT NOT LIMITED TO, THE IMPLIED OpenSSL Toolkit (http://www.openssl.org/)”...
  • Page 113 4. Neither the name of the University nor of the Department and SNMP v3 using both IPv4 and IPv6. For more additional information, send email to help.cctv@samsung.com. may be used to endorse or promote products derived from this software without specific prior written Copyright (C) 2004, Kneschke, incremental permission.
  • Page 114 PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT THE COPYRIGHT OWNER OR CONTRIBUTORS BE HOLDERS AND CONTRIBUTORS "AS IS" AND ANY LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, EXPRESS OR IMPLIED WARRANTIES, INCLUDING, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR...
  • Page 115 THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR MERCHANTABILITY AND FITNESS FOR A PARTICULAR...
  • Page 116 THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT THIS SOFTWARE IS PROVIDED BY APPLE AND ITS HOLDERS AND CONTRIBUTORS “AS IS” AND ANY CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF IMPLIED WARRANTIES OF MERCHANTABILITY AND MERCHANTABILITY AND FITNESS FOR A PARTICULAR...
  • Page 117 the mit License Some software components of this product incorporate source code covered under the MIT license as follows mit License 2.0 - Acewidget, bettermeans, jquery-ui, libxml, libxml2, Mesa3D-MesaLib,mwEmbed,OpenGL Samples Pack, Wide Studio, xorg-server Copyright (c) 2011, The Dojo Foundation Copyright 2010, AUTHORS.txt (http://jqueryui.com/about) Dual licensed under the MIT or GPL Version 2 licenses.
  • Page 118 the independent JpeG Group’s JpeG Software The software included in this product contains copyrighted software that is licensed under the JPEG license. • JPEG license - Code project – Generating Outline OpenGL, Libjpeg This distribution contains the sixth public release of the Permission is NOT granted for the use of any IJG author’s Independent JPEG Group’s free JPEG software.
  • Page 119 License Since we, at Samsung Techwin, used the Mozilla Firefox component without modifying the source code according to the MOZILLA Public license 1.1, we are not obliged to provide the source code of the corresponding component. • Version 1.1 1.
  • Page 120 (d) Notwithstanding Section 2.2(b) above, no patent license is Contributor represents that, except as disclosed pursuant to granted: 1) for any code that Contributor has deleted from Section 3.4(a) above, Contributor believes that Contributor’s the Contributor Version; 2) separate from the Contributor Modifications are Contributor’s original creation(s) and/or Version;...

  • Page 121: Limitation Of Liability

    5. application of this License. upon in writing by the parties or the litigation claim is not withdrawn, the rights granted by Participant to You under This License applies to code to which the Initial Developer has Sections 2.1 and/or 2.2 automatically terminate at the attached the notice in Exhibit A and to related Covered Code.
  • Page 122 Nations Convention on Contracts for the International Sale of Goods is expressly excluded. Any law or regulation which provides that the language of a contract shall be construed against the drafter shall not apply to this License. 12. reSponSiBiLity for cLaimS. As between Initial Developer and the Contributors, each party is responsible for claims and damages arising, directly or indirectly, out of its utilization of rights under this License and You agree to...
  • Page 123 Samsung Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.
  • Page 124 SAMSUNG TECHWIN AMERICA Inc. SAMSUNG TECHWIN EUROPE LTD. 100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660 Samsung House, 1000 Hillswood Drive, Hillswood Business Toll Free : +1-877-213-1222 Direct : +1-201-325-6920 Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS Fax : +1-201-373-0124 TEL : +44-1932-45-5300 FAX : +44-1932-45-5325 www.samsungcctvusa.com...
