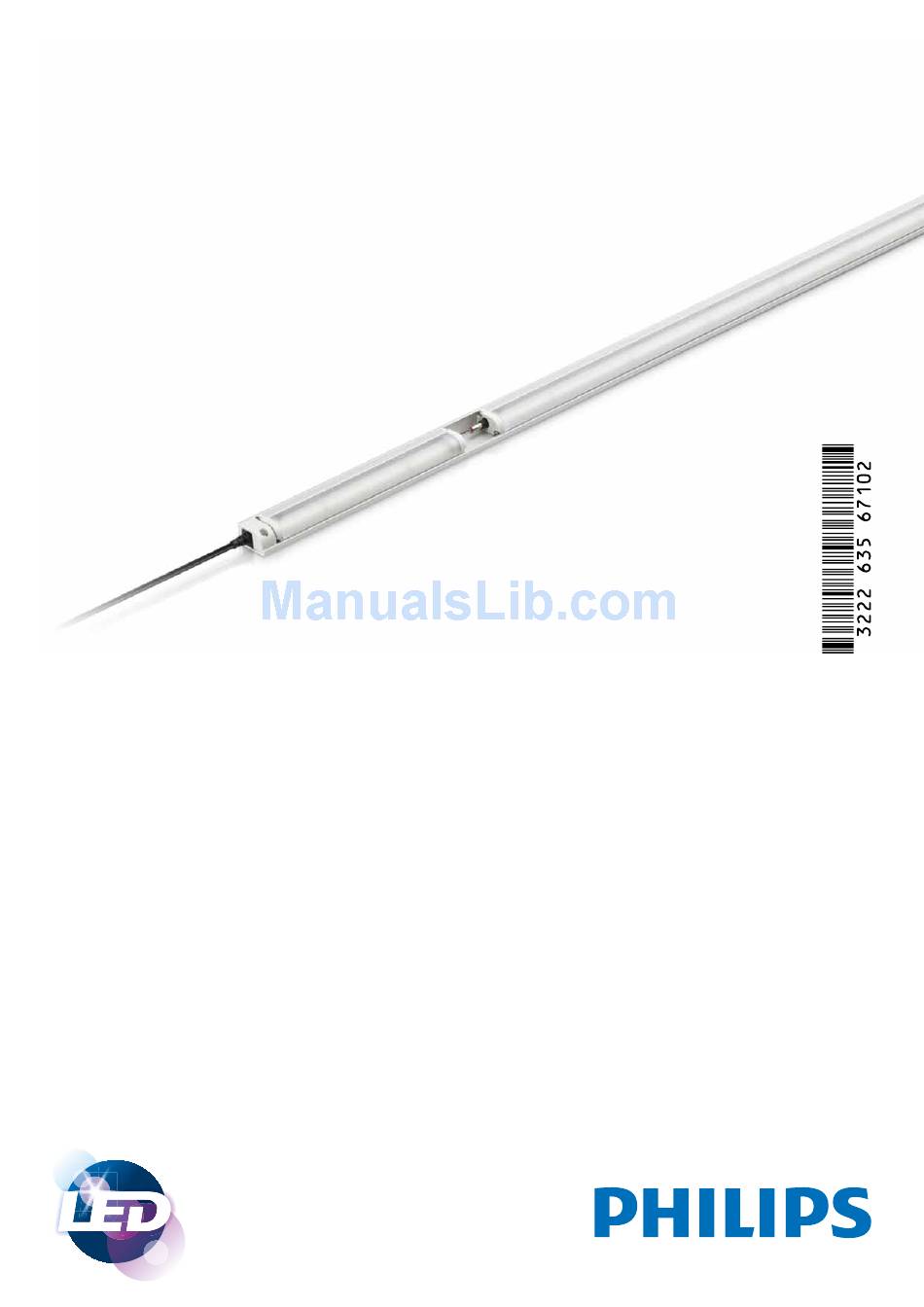

- Page 1 Quick installation guide Philips InteGrade LED engine system for indoor environments and refrigerated cabinets (-30 to +30 °C / -22 to +86 °F) June 2013...
-
Page 2: Warranty
• Do not make sharp bends with electrical wires. • Due to the variety of designs and brands in which the Philips LED products can be installed, you may need to use customized mounting accessories to fit the specific design you are using. If you require further support, please contact your local Philips sales organization. - Page 3 LED Power Driver 75 W-24 V PP ltG -C8 plug -N plug RH<90% InteGrade InteGrade InteGrade InteGrade magnet Philips Xitanium InteGrade LED profile profile (F style) profile (M style) for M style profile LED Power Driver engine (20 or 80 W 24 Vdc)
- Page 4 Connecting the LED InteGrade engines in the profile Phillips HO screwdriver/ torque 10 to 15 cNm...
- Page 5 Installation examples with various InteGrade mounting clips and profiles Attach a single profile beneath two connected engines in order to ensure stability. 50 cm (20 inch) RH<90% Never attach separate profiles beneath individual connected engines. min. 2 When using the 2 m (79 inch) F style profile please ensure it is properly fastened.
- Page 6 (AWG 18) or Tcase max. 70 °C / 158 °F thicker cable uptil a length of max 10 m (32 feet) between driver and Philips LED power cable • If you wish to make any other configuration, please contact Philips.
- Page 7 Wiring diagram with Philips InteGrade LED engines Example parallel connections (more strings) Example series connections (one string) Philips LED Power Driver 20 W 24V DC Philips LED Power Driver 80 W 24V DC driver cable 0.75 mm Philips InteGrade approx 0.3 m...
- Page 8 ©2013 Royal Philips Electronics All rights reserved. Form No. 3222 635 67102 US -30-+30 LE-6590-A 06/2013 www.philips.com/oem www.philips.com/ledrefrigeration www.philips.com/ledmodulesna / NA Customer Support/Technical Service: Tel. (1)800-372-3331...
