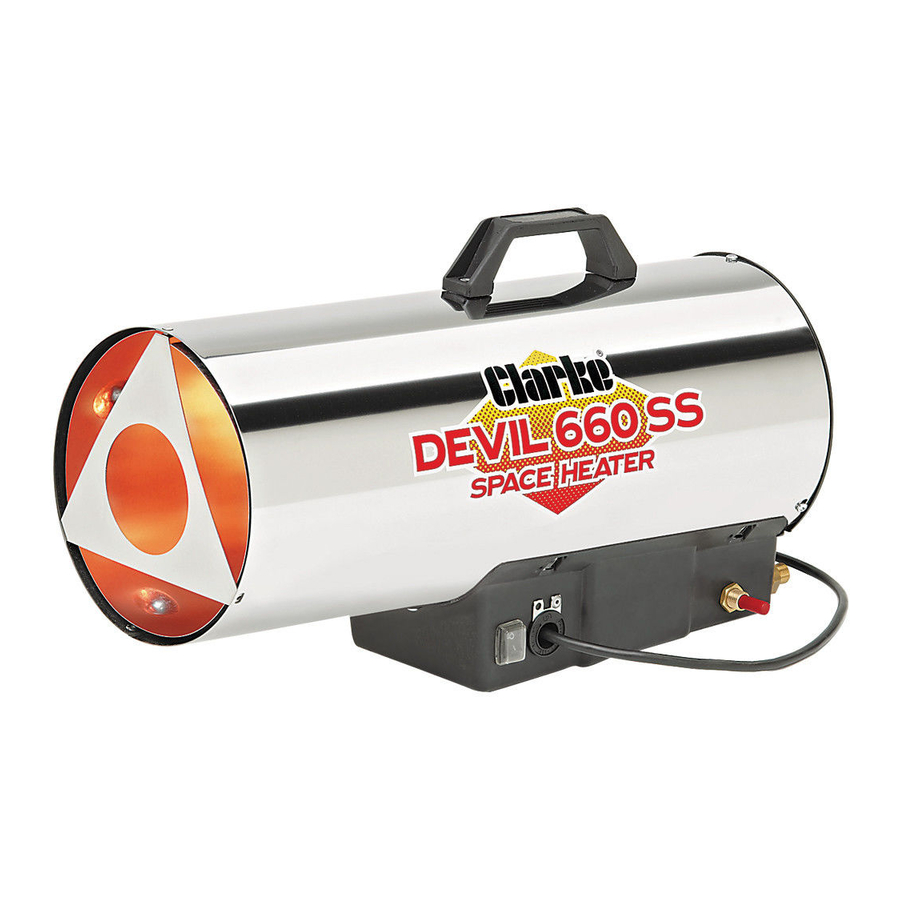

GAS HEATERS
Models: Little Devil (inc ss), Devil 650/660(ss), Devil
850/860(ss), Devil 1250/1260(ss), Devil 1850, Devil 3000
& Devil 3150
OPERATING & MAINTENANCE
INSTRUCTIONS
GC0711

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Little Devil (inc ss) and is the answer not in the manual?

Questions and answers

Summary of Contents for Clarke Little Devil (inc ss)

  • Page 1 GAS HEATERS Models: Little Devil (inc ss), Devil 650/660(ss), Devil 850/860(ss), Devil 1250/1260(ss), Devil 1850, Devil 3000 & Devil 3150 OPERATING & MAINTENANCE INSTRUCTIONS GC0711...
  • Page 2: Table Of Contents

    Wiring Diagrams ................... 12 Parts Lists and Diagrams ..............14 GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
  • Page 3: Introduction

    420 x 565 Weight (kg) 11.5 23.0 29.5 30.0 Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice.
  • Page 4: General Safety Precautions

    GENERAL SAFETY PRECAUTIONS WARNING! Lack of ventilation can cause Carbon Monoxide poisoning. Carbon Monoxide poisoning can kill. Signs of Carbon Monoxide poisoning are headaches, dizziness and/or nausea. Should anyone show these signs, they must GET FRESH AIR IMMEDIATELY. Turn off the heater and have it serviced before using again.
  • Page 5: Electrical Connections

    ELECTRICAL CONNECTIONS Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug or a suitably fused isolator switch. With the exception of the Little Devil and Devil 650/660, the heater may also be connected to a 110V supply through a suitably approved plug.
  • Page 6: Unpacking

    UNPACKING When unpacking, check the heater for possible shipping damage. Should any damage be apparent, please notify your Clarke dealer immediately. Your heater is fully assembled,- only the electrical and gas supplies need connecting. PROPANE GAS SUPPLY These heaters are designed for use with PROPANE GAS ONLY. Gas bottles are not supplied, but are readily available from builders merchants or gas suppliers etc.
  • Page 7: Changing Gas Bottles

    CHANGING GAS BOTTLES 1. Turn off the heater and disconnect from the electrical supply. 2. Close the gas valve on the bottle and unscrew the regulator, (left hand thread). 3. Ensure the replacement bottle screw threads and gas orifice is perfectly clean before screwing in the regulator valve tightly.
  • Page 8: Operation

    OPERATION Understanding the basic operation of the heater will reinforce the need to maintain the unit in top condition at all times, whilst always observing the safety precautions. The heater comprises four basic systems: The gas system. The air system. The ignition system.
  • Page 9: Starting Procedure

    STARTING PROCEDURE! WARNING Before starting the heater, you MUST ensure that the minimum ventilation requirements are observed to avoid the risk of carbon monoxide poisoning. Ensuring there is sufficient gas, and that it is correctly connected, open valve on the gas cylinder, and open the regulator valve which is adjacent to the gas inlet pipe.
  • Page 10: Stopping Procedure

    Ensure that all connections are clean and secure. When necessary, clean the fan and the inside of the heater thoroughly. IMPORTANT: The use of parts other than genuine CLARKE replacement parts may result in safety hazards, decreased performance, and will invalidate your warranty.
  • Page 11: Troubleshooting

    3. Detect cause of overheating. 3. Lock out of appliance Wait for 5 mins and restart. If due to overheating. condition persists, contact your Clarke dealer for advice. Piezo does not spark. 1. Electrode in wrong 1. Check position and reset if position.
  • Page 12: Wiring Diagrams

    WIRING DIAGRAMS IMPORTANT: The wiring to these heaters should not be tampered with under any circumstances. Should any wiring problems occur, contact your nearest CLARKE dealer or a qualified electrician. LITTLE DEVIL & DEVIL 650/660SS Safety Thermostat G1 Gas Valve...
  • Page 13 WIRING DIAGRAMS DEVIL 1850 & DEVIL 3000 Safety Thermostat M1 Fan Motor Q1 Switch Q2 Piezoigniter Q3 Voltage Selector Thermocouple Ignition Electrode Solenoid Valve Gas Valve Capacitor DEVIL 3150 Safety Thermostat M1 Fan Motor Q1 Switch Q2 Piezoigniter Q3 Voltage Selector Thermocouple Electrode Solenoid Valve...
  • Page 14: Parts Lists And Diagrams

    PARTS DIAGRAM - LITTLE DEVIL/SS...
  • Page 15 PARTS LIST - LITTLE DEVIL /SS No. Description Part No. No. Description Part No. Triangular Guard 20620016 Gas Valve 20140001 Cable 20390039 Rivet 20230196 Solenoid Valve 20420003 Casing (painted) 20630075 Cable 20390014 Casing (stainless) 20620444 Cable 20390136 Handle 20010007 Gas Nozzle 20210099 Rivet 20230191...
  • Page 16 PARTS DIAGRAM - DEVIL 650/660...
  • Page 17 PARTS LIST - DEVIL 650/660 No. Description Part No. No. Description Part No. Triangular Guard 20620016 Gas Valve 20140001 Cable 20390039 Rivet 20230196 Solenoid Valve 20420003 Casing (painted) 20630076 Cable 20390014 Casing (stainless) 20620445 Cable 20390136 Handle 20010007 Gas Nozzle 20210047 Rivet 20230191...
  • Page 18 PARTS DIAGRAM - DEVIL 850/860...
  • Page 19 PARTS LIST - DEVIL 850/860 No. Description Part No. No. Description Part No. Front Grille 20240009 26 Cable 320mm 20390000 Casing 20630950 27 Cable 230mm 20390002 28 Nut 20230127 Rivet 20230197 Rivet 20230191 29 Nozzle 20210038 Handle 20010006 30 Burner Support 20650006 Chamber 20620455...
  • Page 20 PARTS DIAGRAM - DEVIL 1250/1260...
  • Page 21 PARTS LIST - DEVIL 1250/1260 No. Description Part No. No. Description Part No. Front Grille 20240009 26 Cable 320mm 20390000 Casing 20630960 27 Cable 230mm 20390002 28 Nut 20230127 Rivet 20230197 Rivet 20230191 29 Nozzle 20210039 Handle 20010006 30 Burner Support 20650006 Chamber 20620459...
  • Page 22 PARTS DIAGRAM - DEVIL 1850...
  • Page 23 PARTS LIST - DEVIL 1850 No. Description Part No. No. Description Part No. Front Grille 20240014 24 Nozzle 20210031 25 Burner Support 20650006 Casing 20630968 Rivet 20230197 26 Fitting 20120053 Rivet 20230191 27 Fixing Plate 20010025 Handle 20010005 28 Lower Support 20630594 29 Gas Valve 20140000...
  • Page 24 PARTS DIAGRAM - DEVIL 3000...
  • Page 25 PARTS LIST - DEVIL 3000 No. Description Part No. No. Description Part No. Front Grille 20240014 24 Nozzle 20210034 Casing 20630976 25 Burner Support 20650006 26 Fitting 20120053 Rivet 20230197 Rivet 20230191 27 Fixing Plate 20010025 Handle 20010005 28 Lower Support 20630594 Combust Chamber 20620465 29 Gas Valve...
  • Page 26 PARTS DIAGRAM - DEVIL 3150...
  • Page 27 PARTS LIST - DEVIL 3150 No. Description Part No. No. Description Part No. Front Grille 20240031 26 Connector Fitting 20120027 Air Outlet - Red 20630014 27 Fixing Clip 20230245 Air Outlet - SS/Inox 20620241 28 Safety Thermostat 10360008 Chamber - Red 20620450 29 Cable 20390007...
