Summary of Contents for Clarke Little Devil

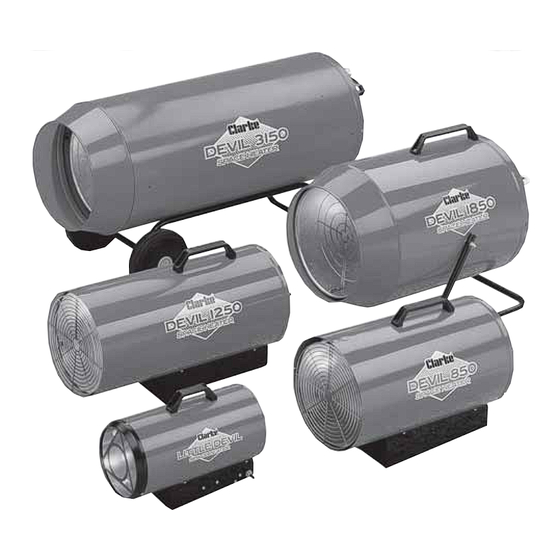

- Page 1 GAS HEATERS GAS HEATERS Model Nos: Little Devil • Devil 850 • Devil 1250 • Devil 1850 • Devil 3150 OPERATING & MAINTENANCE INSTRUCTIONS 0802...
- Page 2 International helpline on: 020 8588 7400 For Spare Parts and Service, please contact your nearest dealer, or CLARKE International, on one of the following numbers. PARTS & SERVICE TEL: 020 8988 7400 PARTS & SERVICE FAX: 020 8558 3622 e-mail as follows:...
-
Page 3: Table Of Contents
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS WARNING! Lack of ventilation can cause Carbon Monoxide poisoning. Carbon Monoxide poisoning can kill. Signs of Carbon Monoxide poisoning are, headaches, dizziness and/or nausea. Should anyone show these signs, they must GET FRESH AIR IMMEDIATELY. Turn off the heater and have it serviced before using again. -
Page 5: Electrical Connections
Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. With the exception of the Little Devil and Devil 650, the appliance may also be connected to a 110 Volt supply, through a suitably approved plug. -
Page 6: Gas Connection
UNPACKING On unpacking, check the heater for possible shipping damage. Should any damage be apparent, please notify your Clarke dealer immediately. Your heater is fully assembled, only the electrical and gas supply’s need connecting. PROPANE GAS SUPPLY These heaters are designed for use with PROPANE gas ONLY. Gas bottles are not... -
Page 7: Operation
OPERATION Understanding the basic operation of the heater, will reinforce the need to maintain the unit in top condition at all times, whilst always observing the safety precautions. The heater comprises four basic systems: The gas system. The air system. The ignition system. -
Page 8: Starting Procedure
Fig.3 NOTES: The Little Devil and Devil 650 heaters have a fixed, regulated gas flow, whereas all other models have a variable gas flow regulator so that you can regulate the heat output by adjusting the regulator pressure. -
Page 9: Stopping Procedure
Allow fan to run for 2 - 3 minutes with burner off, in order to allow casing to cool down. Switch OFF fan, and disconnect electrical supply. Minimum fresh air opening requirements Heater Model Output Minimum Minimum Btu/hr Ventilation ft Ventilation mtrs Little Devil 34,000 0.25 0.023 Devil 650 60,000 0.36 0.035 Devil 850 78,500 0.75 0.07... -
Page 10: Maintenance
All models are similar, in that access to the working parts, is gained by removing the rear panel, which is secured by 4 screws, (3 in the case of the Little Devil), around its’ edge. Once removed, the panel complete with all components may be lifted clear. -
Page 11: Trouble Shooting
3. Detect cause of overheating. 3. Lock out of appliance Wait for 5 mins, and restart. If due to overheating. condition persists, contact your Clarke dealer for advice. Piezo does not spark 1. Electrode in wrong 1. Check position and reset if position necessary. -
Page 12: Wiring Diagrams
WIRING DIAGRAMS IMPORTANT: The wiring to these heaters should not be tampered with under any circumstances. Should any wiring problems occur, contact your nearest CLARKE dealer or qualified electrician. Little Devil, Devil 650 & Devil 850 Safety Thermostat Fan Motor Switch... - Page 13 Devil 1850 Safety Thermostat C1 Capacitor G1 Gas Valve M1 Fan Motor Q1 Switch Q2 Piezoelectric device Starting Electrode Thermocouple Y1 Solenoid Valve X1 Terminal Board Devil 3150 Safety Thermostat Room (External) Thermostat Fuse M1 Fan Motor Q1 Switch Ionisation Probe Starting Electrode Y1 Solenoid Valve X1 Terminal Board...
-
Page 14: Parts Lists And Diagrams
LITTLE DEVIL... - Page 15 LITTLE DEVIL No. Description Part No. No. Description Part No. Chamber 2003104255 28 Terminal Board 1005064500 Rivet 1004043000 29 Switch 1005092855 Handle 1001015755 30 Label 1004010955 Aluminium Rivet 1004014800 31 Grommet 1005091455 Cone + Triangle 2003103655 32 Screw 1004012300 Washer...
- Page 16 DEVIL 850...
- Page 17 DEVIL 850 No. Description Part No. No. Description Part No. Chamber 2003103855 29 Electrode 1005063500 Body 2003099855 30 Wire 2005048355 Handle 1001014700 31 Wire 2005071655 Rivet 1004043000 32 Rivet 1004043100 Washer 1004001100 33 Burner 1008065655 Aluminium Rivet 1004043600 34 Disc 2003104455 Grille 1008078455...
- Page 18 DEVIL1250...
- Page 19 DEVIL1250 No. Description Part No. No. Description Part No. Chamber 2003128455 29 Electrode 1005082836 30 Wire 2005048355 Body 2003128355 31 Wire 2005071655 Handle 1001014700 32 Rivet 1004043100 Rivet 1004043000 Washer 1004001100 33 Burner 1008094655 Rivet 1004043600 34 Disc 2003104455 35 Fitting 1006026455 Grille 1008078455...
- Page 20 DEVIL1850...
- Page 21 DEVIL1850 No. Description Part No. No. Description Part No. Chamber 2003072636 27 Wire 2005048355 Handle 1001018636 28 Nut 1006016000 Body 2003072436 29 Burner 1008071836 Grille 1008071736 30 Fitting 1006026555 31 Fitting 1006026455 Foot 2003072536 1004013600 32 Disc 2003105336 1001010900 33 Electrode 1005082836 Hose 1009010355...
- Page 22 DEVIL3150...
- Page 23 DEVIL3150 No. Description Part No. No. Description Part No. Chamber 2003119036 27 Wire 2005073336 Body 2003118836 28 Wire 2005073436 Grille 1008071736 29 Nut 1006026755 1001018800 30 Nozzle 1008087736 Washer 1004010900 31 Fitting 1006021055 Wheel 1001002000 32 Air Conveyor 2003118936 Foot 2002019036 33 Thermostat 1005087800...
