Miele ESW 4084-14 Dimension Manual

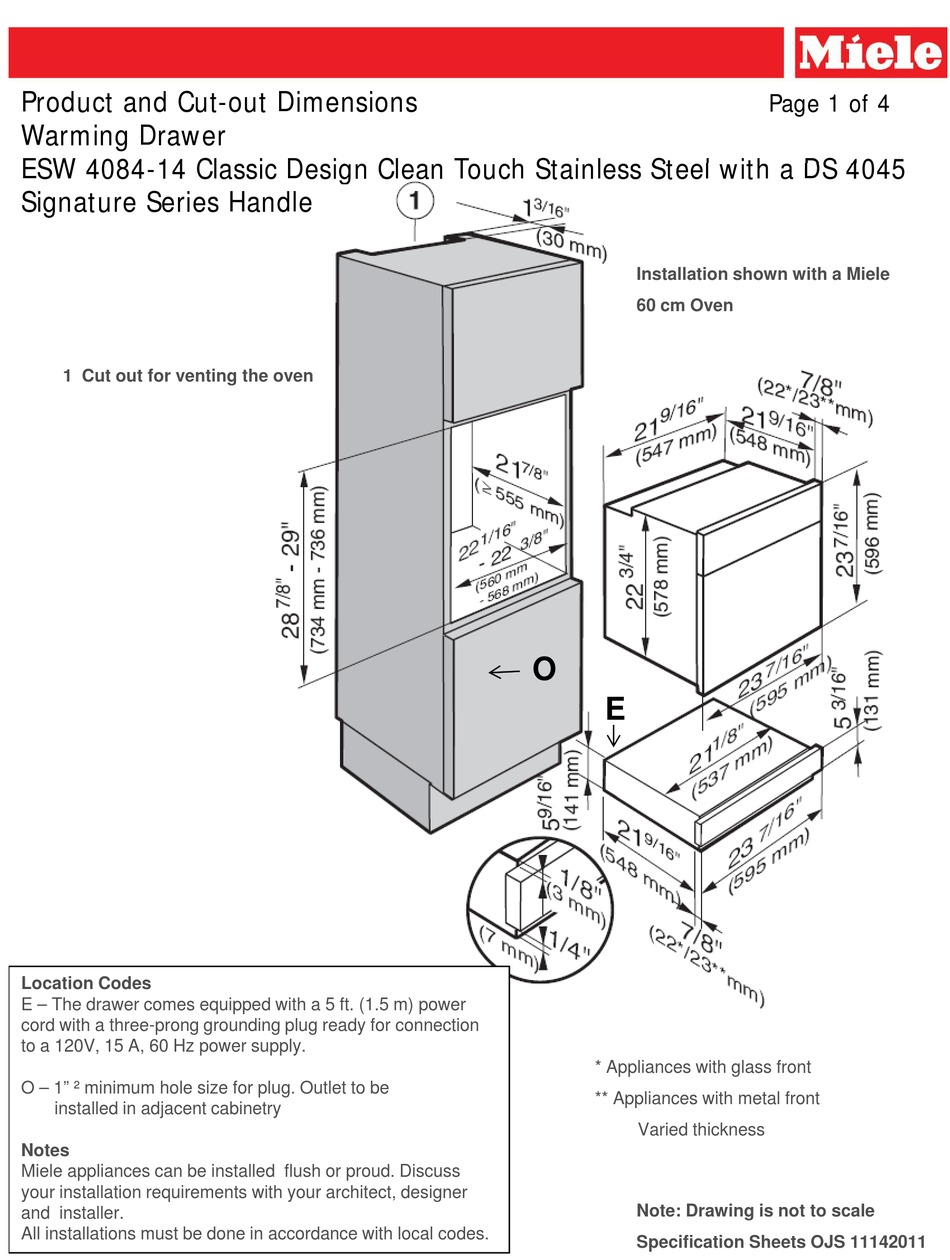

Product and Cut-out Dimensions

Warming Drawer

ESW 4084-14 Classic Design Clean Touch Stainless Steel with a DS 4045 ESW 4084 14 Cl
Signature Series Handle
1 Cut out for venting the oven
Location Codes
E – The drawer comes equipped with a 5 ft. (1.5 m) power
cord with a three-prong grounding plug ready for connection
to a 120V, 15 A, 60 Hz power supply.
O – 1" ² minimum hole size for plug. Outlet to be
installed in adjacent cabinetry
Notes
Miele appliances can be installed flush or proud. Discuss
your installation requirements with your architect, designer
and installer.
All installations must be done in accordance with local codes.
i D i Cl T h St i l
O
E
* Appliances with glass front
** Appliances with metal front Appliances with metal front
Page 1 of 4
St l ith DS 4045
Installation shown with a Miele
60 cm Oven
Varied thickness
Note: Drawing is not to scale
Specification Sheets OJS 11142011
