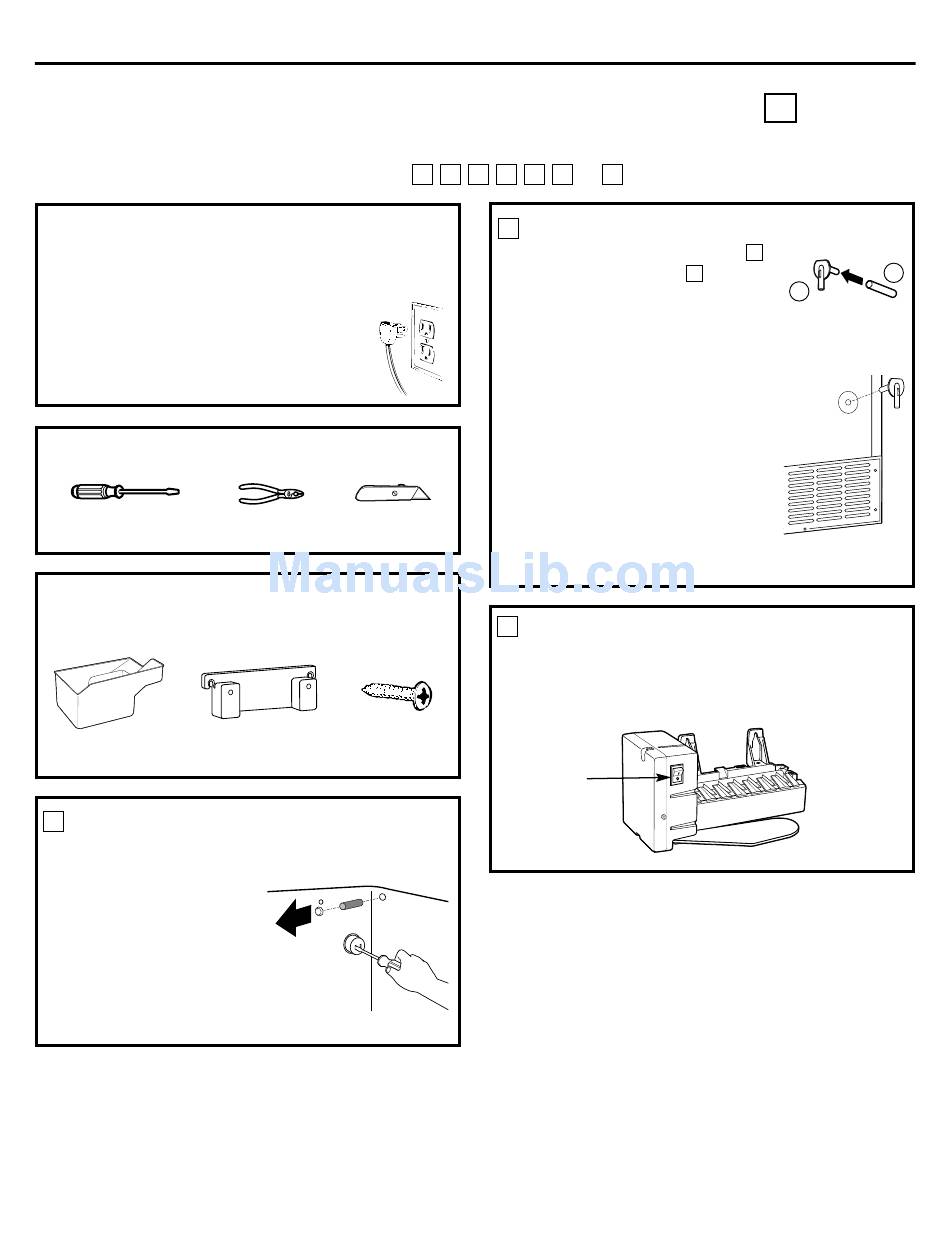

ICEMAKER INSTALLATION INSTRUCTIONS R
Are these the right instructions for your model? Follow the Installation Instructions indicated by
the label on the back of the refrigerator ---
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
CAUTION –
•
Refrigerator. To eliminate the danger
of electric shock during installation,
you must unplug the refrigerator from
its electrical outlet.
TOOLS YOU WILL NEED
Flat blade and Phillips
screwdrivers
PARTS REQUIRED THAT CAME
WITH THE REFRIGERATOR
Icemaker mounting block
Ice bucket
Part No. WR2M3604
Part No. WR30S1
PREPARE FOR INSTALLATION
1
• Remove all freezer baskets for greater accessibility
to the rear of the freezer.
• Remove and discard
the large white plug
from the rear freezer
wall. Pull out the gray
insulation plug and
remove any debris.
• Remove the outlet cover
with a flat-blade screwdriver.
Installation Instructions
L
Unplug the
Sharp knife
Pliers
Phillips head
screws (2)
Part No. WR1M478
or S
M N P Q R
2 INSTALL FILL TUBE
• Cut the fill tube (13) to the
length (refer to the
on page 42) with a sharp knife
or a single-edge razor blade.
• Slide the fill tube (13) onto the
water tube inlet (12).
• Go to the back of the refrigerator.
Remove the label covering the
hole. Pull out the insulation plug
and any debris.
• On the tube side of the water
tube inlet (12), there is an
adhesive backing. Remove the
adhesive backing and slide the
tube into the hole at the back of
the refrigerator. Firmly press on the inlet to secure
it to the refrigerator.
3 SET POWER SWITCH TO O (off)
Set the icemaker power switch to O (off). Leave
the power switch in the O (off) position until the
refrigerator is connected to the water supply to
prevent premature operation.
Power
Switch
30
R
template
R
12
13
