Data Sheet
FUJITSU Server PRIMERGY RX300 S7 Dual socket 2U rack server
Data Sheet
FUJITSU Server PRIMERGY RX300 S7 Dual socket 2U

rack server

The versatile 2U powerhouse
consolidations.
The Fujitsu Server PRIMERGY RX Rack Server
family is the perfect platform to form dynamic
infrastructures for your business processes today
and in the coming decade. You will thus benefit
several times over from our recognized experience
in optimized data center technology and our
innovative strength in developing energy-efficient
and cost/performance-optimized rack systems
for universal use. PRIMERGY rack servers, built
upon industry standards, focus from a functional
viewpoint on core features: energy efficiency,
reliability, optimized for virtualization, ease
of operation and maintenance, flexibility for
your future. And thus they notably meet your
requirements for outstanding cost efficiency.
Optimal operating costs and long-term usability
comply with the IT quality required by your
customers. Our responsibility goes way beyond
the hardware as our tailor-made service packages
mean that you can rely on the best support for
your IT during its whole lifecycle.

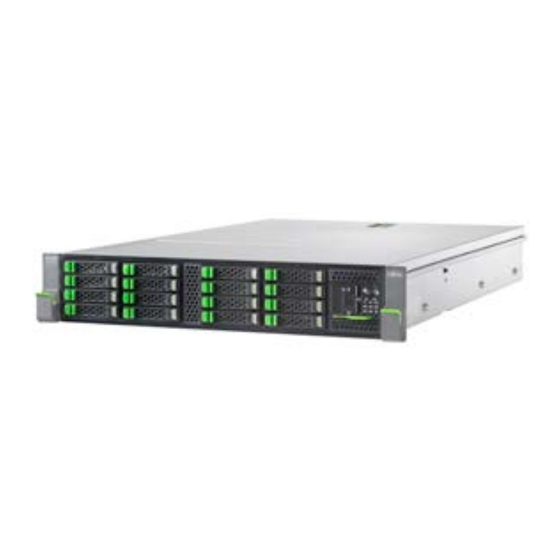

PRIMERGY RX300 S7
The Fujitsu Server PRIMERGY RX300 S7 is a dual
socket rack server, focusing on versatility and
scalability. The new modular concept supports
excellent expandability with up to 16 hard
disk drives, up to 7 PCIe Gen 3 cards and up to
768GB RAM, all in one single 2U rack housing.
Furthermore, the new Intel® Xeon® E5 product
family delivers the top performance to ensure
today's demand while being prepared for future
requirements thanks to the upgrade kits as well
as the cost-saving Modular LAN options. Thanks to
the power supply units with 94% efficiency and the
new power management this will result in lower
operational costs. This 2U power house is the right
choice for all types of business applications and
Page 1 / 11
www.fujitsu.com/fts

Advertisement

loading

Summary of Contents for Fujitsu PRIMERGY RX300 S7

  • Page 1: Rack Server

    Data Sheet FUJITSU Server PRIMERGY RX300 S7 Dual socket 2U rack server Data Sheet FUJITSU Server PRIMERGY RX300 S7 Dual socket 2U rack server The versatile 2U powerhouse consolidations. The Fujitsu Server PRIMERGY RX Rack Server family is the perfect platform to form dynamic infrastructures for your business processes today and in the coming decade.
  • Page 2: Features And Benefits

    Data Sheet FUJITSU Server PRIMERGY RX300 S7 Dual socket 2U rack server Features & Benefits Main Features Benefits Meet today’s demand and be prepared for future requirements Intel Xeon E5-2600 product family with up to 8 core processors and Increased performance of up to 80% compared to the previous „...
  • Page 3: Technical Details

    Data Sheet FUJITSU Server PRIMERGY RX300 S7 Dual socket 2U rack server Technical details PRIMERGY RX300 S7 Housing types Rack Rack Storage drive architecture 6x 3.5-inch SAS/SATA max. 16x 2.5-inch SAS/SATA Power supply Hot-plug Hot-plug Mainboard Mainboard type D2939 Chipset Intel®...
  • Page 4 Data Sheet FUJITSU Server PRIMERGY RX300 S7 Dual socket 2U rack server Memory notes Max. 8 memory modules/CPU with UDIMM (low voltage or standard) OR quad-rank RDIMM; max. 12 memory modules/CPU with single or dual-rank RDIMM or single, dual-rank or quad-rank Load-Reduced (LR) DIMM.
  • Page 5 Data Sheet FUJITSU Server PRIMERGY RX300 S7 Dual socket 2U rack server General system information Number of fans Fan configuration redundant / hot-plug Fan notes 4+1 redundant Operating panel Operating buttons On/off switch Reset button NMI button ID button Status LEDs...
  • Page 6 Data Sheet FUJITSU Server PRIMERGY RX300 S7 Dual socket 2U rack server Operating Systems and Virtualization Software Certified or supported operating Microsoft® Hyper-V Server R2 2012 systems and virtualization software Microsoft® Windows Server® 2012 R2 Datacenter Microsoft® Windows Server® 2012 R2 Standard Microsoft®...
  • Page 7 Data Sheet FUJITSU Server PRIMERGY RX300 S7 Dual socket 2U rack server Server Management Option ServerView Suite - Deploy SV Deployment Manager (full version) ServerView Suite - Maintain iRMC Advanced Pack incl. Advanced Video Redirection (AVR) and Remote Storage ServerView Suite - Dynamize...
  • Page 8 Data Sheet FUJITSU Server PRIMERGY RX300 S7 Dual socket 2U rack server Compliance USA/Canada CSAc/us FCC Class A Global RoHS (Restriction of hazardous substances) WEEE (Waste electrical and electronical equipment) Japan VCCI China CCC (planned) CCC (depending on configuration) Australia/New Zealand...
  • Page 9 Data Sheet FUJITSU Server PRIMERGY RX300 S7 Dual socket 2U rack server Components Storage drives SSD SATA, 6 Gb/s, 400 GB, MLC, hot-plug, 2.5-inch, enterprise SSD SATA, 6 Gb/s, 200 GB, MLC, hot-plug, 2.5-inch, enterprise SSD SATA, 6 Gb/s, 100 GB, MLC, hot-plug, 2.5-inch, enterprise SSD SAS, 6 Gb/s, 400 GB, SLC, hot-plug, 2.5-inch, enterprise...
  • Page 10 RAID level: 0, 1, 10, 5, 50, 6, 60, 1 GB, Optional FBU (based on LSI SAS2208) RAID 5/6 Ctrl., SAS/SATA 6 Gbit/s, Fujitsu RAID Ctrl SAS 6G 5/6 512MB (D2616), 8 ports int. RAID level: 0, 1, 10, 5, 50, 6, 60, 512 MB Cache, Optional BBU (based on LSI SAS2108) RAID 5/6 Ctrl., SAS/SATA 6 Gbit/s, Fujitsu RAID Ctrl SAS 6G 1GB (D3116C), 8 ports int.
  • Page 11: More Information

    Data Sheet FUJITSU Server PRIMERGY RX300 S7 Dual socket 2U rack server More information Fujitsu OPTIMIZATION Services More information Copyrights In addition to Fujitsu PRIMERGY RX300 S7, Learn more about Fujitsu PRIMERGY RX300 All rights reserved, including intellectual Fujitsu provides a range of platform solutions.
