PRECAUTIONS FOR PROPER USE

• Never use this product as a sensing device
for personnel protection.
• In case of using sensing devices for
personnel protection, use products which
meet laws and standards, such as OSHA,
ANSI or IEC etc., for personnel protection
applicable in each region or country.
EX-F71(-PN) EX-F72(-PN)

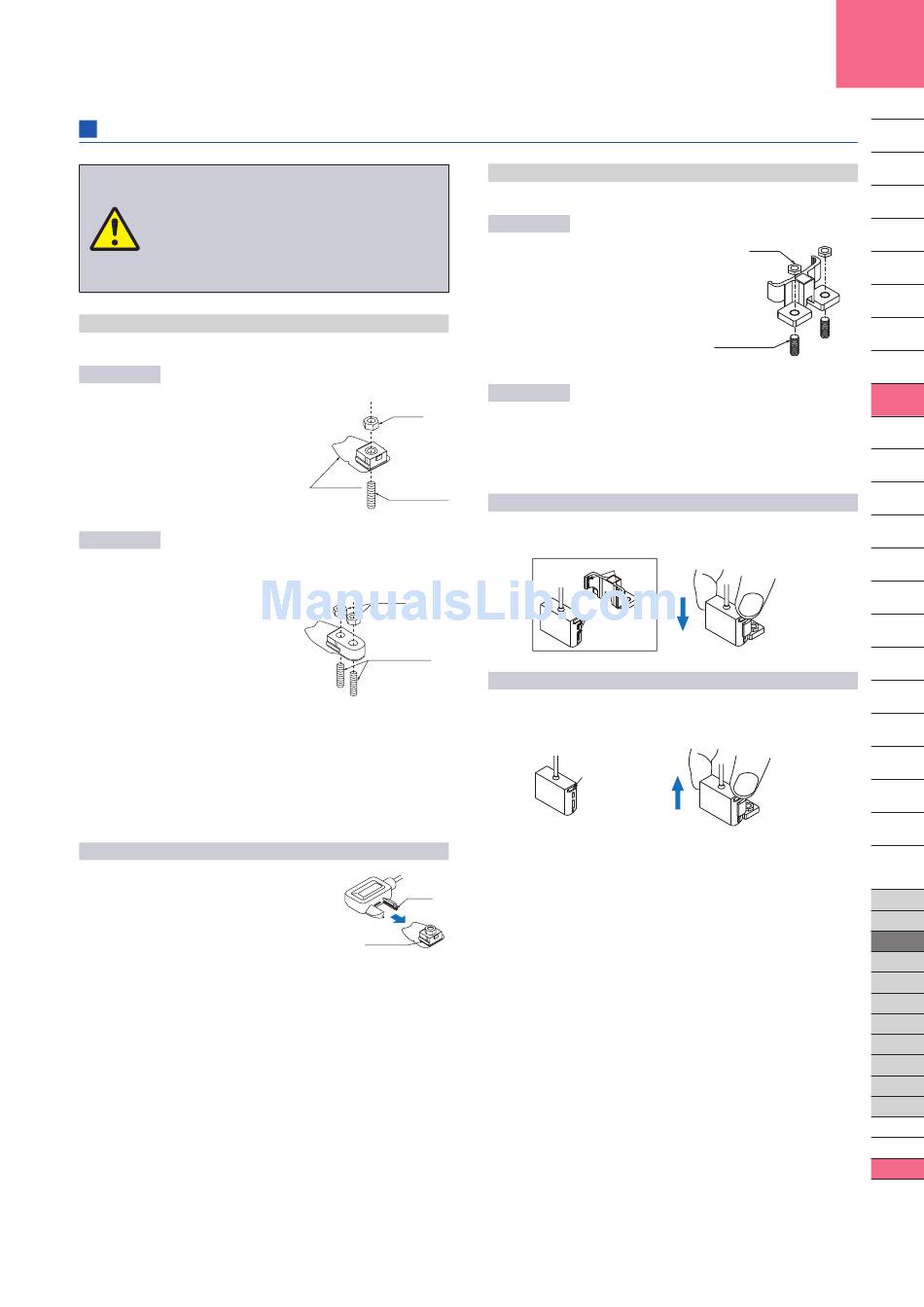

Mounting
EX-F71(-PN)
• Insert the M4 stud-bolt (length
10 mm 0.394 in or more) welded
on the user's facilities into
the mounting hole of the SUS
mounting bracket and screw
with an M4 nut (please arrange
separately). The tightening torque
should be 0.98 N·m or less.
EX-F72(-PN)
<In case of using the two-point-fixing PVC mounting bracket>
• Insert M4 stud-bolts (length
10 mm 0.394 in or more)
welded on the user's facilities
into the mounting holes of
the two-point-fixing mounting
bracket and screw with M4 nuts
(please arrange separately).
The tightening torque should be
0.49 N·m or less.
<In case of using the PVC mounting bracket for adhesive fixing>
• Use adhesive to stick fast the mounting bracket on the
mounting surface. Please note that if the adhesive sticks
out from the bottom surface of the mounting bracket or is
0.5 mm 0.020 in, or more thick, the sensor body cannot
be fitted to the mounting bracket.
How to fit the sensor body to the exclusive mounting bracket
• Match the notch in the sensor body
with the projection of the exclusive
mounting bracket and slide till a click
is felt.
• When mounting, make sure to use
the brackets included with the unit
in order to eliminate human error (such as forgetting
to install). If the included brackets are not used, stable
sensing is rendered impossible.
Also, because sensitivity settings differ between the
EX-F71(-PN) and the EX-F72(-PN), their brackets cannot
be interchanged.
Leak Detection Sensor
EX-F61(-PN) EX-F62(-PN)
Mounting
EX-F61(-PN)
• Insert the M4 stud-bolt (length
EX-F62(-PN)
M4 nut
• Please note that if the excess adhesive from the bottom
SUS plate
M4 stud-bolt
How to fit the sensor body to the exclusive mounting bracket
(Straight type)
• Align the projections in the sensor body with the notches of
M4 nuts
M4 stud-bolts
(Straight type)
How to remove the sensor body from the exclusive mounting bracket
• Pinch the projections of the sensor body and pull the
Notch
Projection
EX-F70
SERIES
10 mm 0.394 in or more) welded
on the user's facilities into
the mounting hole of the PFA
mounting bracket and screw
with an M4 nut (please arrange
separately). The tightening torque
should be 0.98 N·m or less.
surface of the exclusive mounting bracket is remained,
the sensing capability may be affected.
Use adhesive for vinyl chloride (PVC).
the exclusive mounting bracket and slide till a click is felt.
Notches
Projection
body upwards. Never pull the cable, since it may cause a
cable break.
Projection
