Samson CM12C Product Specification Sheet

PRO
PRODUCT
CM12C
SERIES
INSTALLATION MICS
TYPE:
GOOSENECK/
BOUNDARY/CHOIR
GENERAL DESCRIPTION

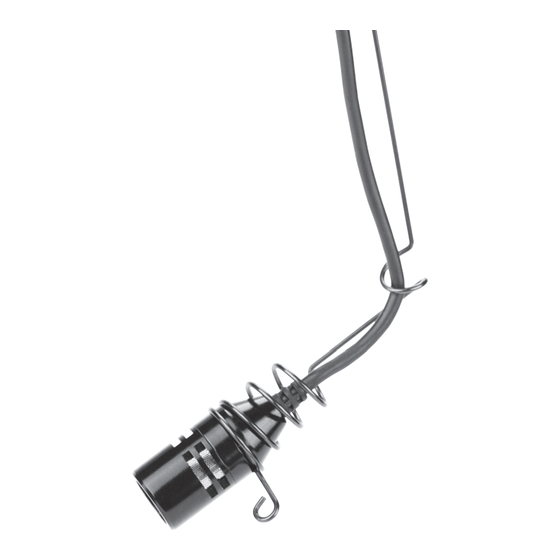

The CM12C is a miniature hanging condenser
microphone which can placed over an orchestra, choir
or sound stage, and with its minimal profile, is mostly
undetectable from even a slight distance. The CM12C
features a permanently charged condenser element
with a cardioid pickup pattern. The microphone
exhibits excellent rear rejection providing maximum
gain before feedback. The CM12C includes a steel
hanger that allows the microphone to be pointed,
and fixed, towards the position of the sound source.
The microphone is supplied with a 30 foot cable
terminating in a mini female XLR which connects to
the included, PM5 power module with standard male
XLR connector. The CM12C operates on standard 9
through 52 Volt phantom power supply. A multi-stage
pop filter is also included. The microphone element
is protected by a rugged metal housing and the entire
microphone has a low reflectance, matte black finish.
FEATURES
Miniature hanging Choir Mic
>
Mini XLR connector
>
Steel Hanging positioning bracket
>
> Includes 30-foot cable with mini XLR connector
> PM5 Mini to standard XLR adapter
Multistage windscreen
>
Standard 9 – 52 Volt Phantom Power Operation
>
DESCRIPTION
HANGING CHOIR MIC
CATEGORY
CONDENSOR MICS
ARCHITECT'S & ENGINEER'S SPECIFICATIONS
The Samson CM12C shall be a hanging choir microphone. It
will be available in black or white. It shall have an included
steel hanging positioning bracket. It shall be a cardiod
pattern condenser microphone element type and require
between 9 and 52 volt phantom powering. The CM12C shall
connect via an included 30-foot microphone cable and a
mini XLR to XLR connector.
CM12C SPECIFICATIONS
Type ............................................... Fixed-charge condenser
Polar Pattern ................................... Cardioid (Uni-directional)
Frequency Response ......................... 50Hz - 18kHz
Sensitivity ....................................... -42 dBV/Pa
Raded Impedance ............................. 200Ω
Max. SPL ......................................... 136 dB
Dynamic Range ................................ 112 dB
S/N ratio ......................................... 70 dB
Power Supply ................................... 9~52V phantom supply
Power consumption .......................... 2.5mA
Dimensions ...................................... 1.06" (L) / 27mm (L)
Weight ............................................ 0.26lbs / 0.12kg
19mm
20mm
30 Feet
©2006 Samson v1.0 5/06
