OPERATION MANUAL
Split System
Ducted Air Conditioner
To suit Daikin FDY "F" Series and FD "F" Series
AIR CONDITIONER
A
C
o
hr
(and other models incorporating BRC1B62/52 Remote Controller)
Dear Owner,
Thank you for installing a DAIKIN Fully Ducted Air Conditioning System. We
believe that you have purchased the best air conditioning system available.
Before operating the air conditioner please read this operating manual carefully. It
will advise you on how to operate the unit correctly, understand the air conditioners'
advanced features and help you in the unlikely event that a problem should occur.
Please keep this manual in a safe place for future reference.
DAIKIN AUSTRALIA PTY LTD
Advertisement
Table of Contents
Related Manuals for Daikin FDY "F" Series
Summary of Contents for Daikin FDY "F" Series
-
Page 1: Operation Manual
(and other models incorporating BRC1B62/52 Remote Controller) Dear Owner, Thank you for installing a DAIKIN Fully Ducted Air Conditioning System. We believe that you have purchased the best air conditioning system available. Before operating the air conditioner please read this operating manual carefully. It will advise you on how to operate the unit correctly, understand the air conditioners’... -
Page 2: Table Of Contents
CONTENTS Important Safety Instructions..............2 Main Switch..................2 Functions of the Remote Controller ...........4 General Operation ................6 Cooling.....................6 Heating.....................6 Auto Heat / Cool................7 Program Dry..................7 Fan Mode..................8 Program Timer .................8 Programming the Stop Time ............8 Programming the Start Time ............8 Programming the Start and Stop Time ..........9 Cancelling the Start and Stop Time ..........9 Advanced Features ................9 Filter Clean Indicator................9... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS • Never remove any fixed covers on the indoor or outdoor unit. Removal of the covers may expose fast moving fan blades or electrical components operating at a hazardous voltage. Contact with the blades or high voltage components may result in injury or electric shock. -
Page 4: Remote Controller
REMOTE CONTROLLER AIR CONDITIONER TEST TEST BRC1B52/62... -
Page 5: Functions Of The Remote Controller
FUNCTIONS OF THE REMOTE CONTROLLER All controls except for the ON / OFF BUTTON are located behind a swing down door on the bottom half of the remote controller. To access these controls simply open the door by gently pulling down on the finger grip located on the top right hand edge of the door. To close the door simply swing it back up until it clicks into the closed position. - Page 6 11. PROGRAM STOP TIME INDICATOR This symbol and number indicates the programmed stop (off) time. 12. PROGRAM START TIME INDICATOR This symbol and number indicates the programmed start (on) time. 13. SELECTED TEMPERATURE DISPLAY This display indicates the desired room temperature. 14.
-
Page 7: General Operation
GENERAL OPERATION COOLING Press the MODE SELECTION BUTTON (24) (if required) until the COOL MODE INDICATOR (6) is displayed. Select the desired room temperature (if required) by momentarily pressing on the top or bottom section of the TEMPERATURE SET BUTTON (21) until the desired temperature is displayed. -
Page 8: Auto Heat / Cool
AUTOMATIC HEATING / COOLING CHANGEOVER (Heat Pump Models Only) When the air conditioner is operated in this mode it will automatically switch between the heating and cooling mode. Press the MODE SELECTION BUTTON (24) (if required) until the AUTO MODE INDICATOR (7) is displayed. -
Page 9: Fan Mode
FAN MODE When the air conditioner is operated in the FAN MODE only the indoor fan is energised. The outdoor unit will not operate and therefore heating or cooling will not be provided. This mode is useful for circulating the air within the building. Press the MODE SELECTION BUTTON (24) (if required) until the FAN MODE INDICATOR (9) is displayed. -
Page 10: Programming The Start And Stop Time
Once the desired START TIME is displayed press the PROGRAM TIMER ON/OFF BUTTON (18). The PROGRAM START TIME INDICATOR (12) will stop flashing and remain displayed. Set the air conditioner in the desired mode as described above but do not press the ON/OFF BUTTON (1). -
Page 11: Hot Start System
HOT START SYSTEM (Heat Pump Models Only) To prevent a cold blast of air when the air conditioner turns on in the heating mode the indoor unit incorporates a computer controller hot start system. The indoor unit microprocessor monitors the temperature of the indoor heat exchanger and operates the indoor fan at a speed lower than the normal low until the heat exchanger temperature reaches a target temperature. -
Page 12: Self Diagnosis
• Regularly check the paint work of the outdoor unit for scratches or signs of corrosion. Apply touch up or anti-corrosion paint as necessary. DAIKIN AUSTRALIA PTY LIMITED A.C.N 000 172 967 (Incorporated in NSW) New South Wales...
Need help?
Do you have a question about the FDY "F" Series and is the answer not in the manual?
Questions and answers

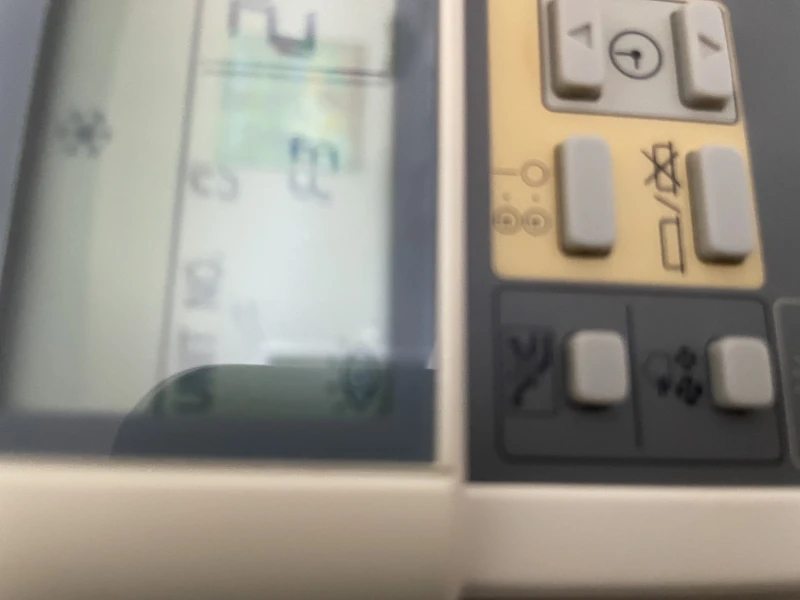

What does error code F3 mean
