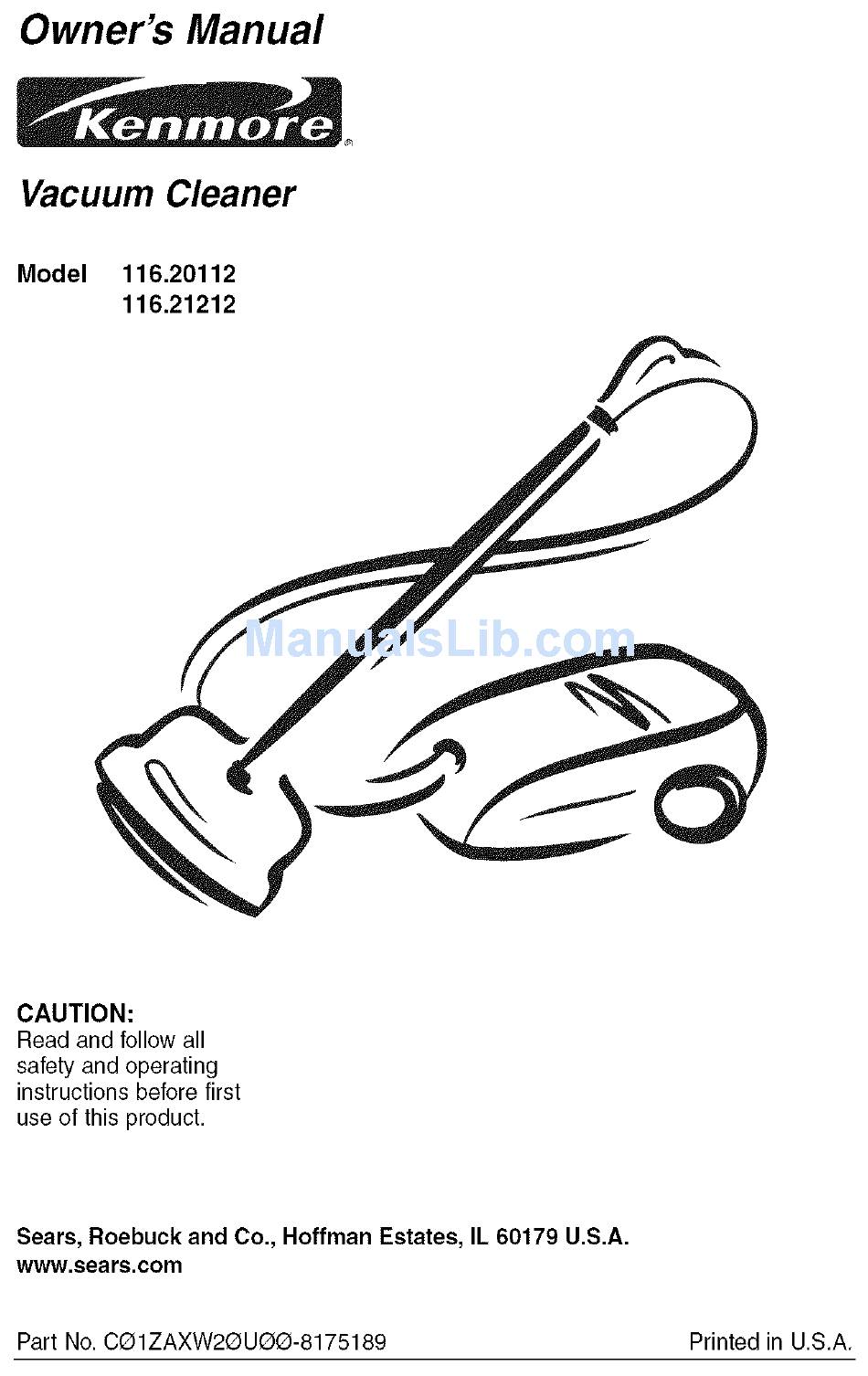

Owner's Manual
Vacuum Cleaner
Model
116.20112
116.21212
CAUTION:
Read and follow all
safety and operating
instructions before first
use of this product.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com
Part No. CO 1ZAXW2QUOa-8175189
Printed in U.S.A.
Advertisement
Related Manuals for Kenmore 116.20112
Summary of Contents for Kenmore 116.20112
- Page 1 Owner's Manual Vacuum Cleaner Model 116.20112 116.21212 CAUTION: Read and follow all safety and operating instructions before first use of this product. Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com Part No. CO 1ZAXW2QUOa-8175189 Printed in U.S.A.
- Page 2 Or Service How Your Vacuum Works .... Please read this guide. It will help you assemble and operate your new Kenmore vacuum in the safest and most effective way. For more information about the care and operation, call your nearest Sears store. You will need the complete model and serial numbers when requesting information.Your vacuum's...
- Page 3 WARNING Your safety is important to us.To reduce the risk of fire, electrical shock, injury to persons or damage when using your vacuum cleaner, follow basic safety precau- tions including the following: Read this manual before assembling or Do not operate the cleaner with a punctured hose.
- Page 4 Itisimportant toknow your v acuum c leaner's parts a nd features toassure i tsproper and safe use. R eview these before u sing y our c leaner. Item Part N o. PartNo. InU.S. InCanada Headlight Bulb 20-5240 596181 Belt 20-5285 40110 Cord and Cord Holder HOSE...
- Page 5 ATTACHMENTS Combination Crevice Tool Brush Fabric Brush Floor Brush Floor Brush (Some Models) (Some Models) (Some Models) (Some Models) (Some Models) POWER-MATE TM Jr. (Some Models) HANDhMATE (Some Models) NOTE: All models have one set of attachments in the canister. Some models have an additional set, which can be kept in the accessory bag for garage use.
- Page 6 Before assembling vacuum, check the PACKING LIST on the cover of the separate Repair Parts List. Use this list to verify that you have received all the components of your new Kenmore vacuum. WARNING Handle_ Electrical Shock Hazard DO NOT plug into electrical supply until assembly is complete.
- Page 7 2. Insert CANISTER handle into wand until 1. Open the canister hood. lock button 2. Check to see that the dust bag is proper- snaps in ly installed. See BAG CHANGING for place. Be instructions. sure hose 3. Check to see that the motor safety filter is is not properly installed.
- Page 8 HOW TO START (Some Models) WARNING Personal Injury and Product Damage Hazard • DO NOT plug in if switch is in ON I Pile Height Indicator position. Personal injury or Pedal damage could result. • The cord moves rapidly when Pile Height Pedal...
- Page 9 Suggested sweeping pattern. Carpeted stairs need to be vacuumed reg- ularly. For best cleaning results, fully close For best cleaning action, the POWER- the suction control. See PERFORMANCE MATE should be pushed straight away FEATURES. from you and pulled straight back. At the end of each pull stroke, the direction of the POWER-MATE should be changed to...
- Page 10 ATTACHMENTS ON WANDS NOTE: If the POWER-MATE is attached, turn cleaner off before removing plug from wands. 1. To remove wands from POWER-MATE lock wands in straight- up position. ATTACHMENTS ON HANDLE NOTE: if the POWER-MATE 2. Remove POWER-MATE attached, turn cleaner plug and cord from holders.
- Page 11 EDGE CLEANER PERFORMANCE INDICATOR SOME MODELS Active brush edge cleaners are on both If the performance indi- sides of the POWER- cator turns entirely red MATE Guide either check for a full dust bag, side of the POWER- or a clog in the vacuum. MATE along base- See HOWYOUR VACUUM WORKS.
- Page 12 The vacuum cleaner creates suction that picks up dirt. Rapidly moving air carries the dirt to the dust bag through the airflow pas- sages. The dust bag lets the air pass through, while it traps the dirt. For best cleaning results, keep the airflow M_tnr passage open.
- Page 13 1. Unplug cord from wall outlet. DO NOT DO NOT USE ATTACHMENTS IF THEY ARE WET. drip water on cleaner. 2. Clean exterior using a clean, soft cloth that has been dipped in a solution of mild liquid detergent and water, then wrung dry. Wipe dry after cleaning.
- Page 14 Exhaust\ 2. When the Filter exhaust filter becomes dirty, remove it by pulling straight up. EXHAUST FILTER Exhaust 3. Place the new ELECTROSTATIC filter into the motor cover with the The electrostatic filter must be replaced white side down. when dirty. Replace the filter when the entire surface area is covered evenly.
- Page 15 Always follow all safety precautions when cleaning and servicing the POWER-MATE • WARNING Electrical Shock Or Personal Injury Hazard Disconnect electrical supply before servicing or cleaning the unit. Failure to do so could result in elec- trical shock or personal injury from cleaner suddenly starting.
- Page 16 3. Turn TO REPLACE BELT: POWER- MATE over. To remove cover, insert screwdriver at cover tabs on both sides and twist to release tabs. 4. Turn POWER- right MATE 1. Slide washers and brush supports onto side up. Press brush assembly. handle release pedal and lower new belt...
- Page 17 TO REPLACE BRUSH DOWEL: WARNING 1. Remove POWER-MATE cover, belt and brush assembly. See "To remove belt" in Electrical Shock Or Personal Injury BELT CHANGING AND BRUSH Hazard CLEANING. Disconnect electrical supply before 2. Remove brush supports, washers, servicing or cleaning the unit. screws, end brush, brush sprocket pieces Failure to do so could result in elec- from ends of brush assembly.
- Page 18 Review this chart to find do-it-yourself solutions for minor performance problems. Any service needed, other than those described in this owner's manual, should be performed by an authorized service representative. WARNING Electrical Shock Hazard Disconnect electrical supply before servicing or cleaning the unit. Failure to do so could result in electrical shock or personal injury.
- Page 19 For repair of major brand appliances in your own home,,, no matter who made it, no matter who sold it! 1=800-4=MY=HOME® Anytime, day or night (1-800-469-4663) (U.S.A. and Canada) WWW, sears.COR'I www, sears,ca Para pedir servicio de reparaci6n a Au Canada pour service en fran_ais: 1-800-.LE=FOYER Mc domicilio, y para ordenar piezas: 1=888..SU-HOGAR sM...
