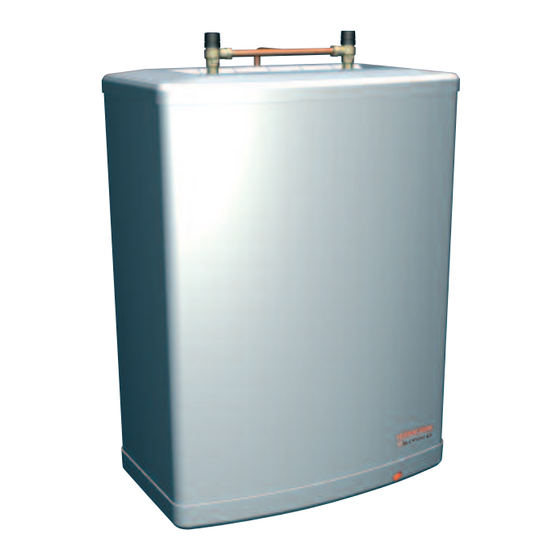

- Page 1 Unvented water heating Multipoint 75 / 100 95 900 871 Issue 1...
- Page 3 Introduction 03 Unvented water heating The demand for unvented systems continues to increase as their benefits are recognised by specifiers, installers and end users. The new Multipoint 75 and 100 litre units offer unvented water heater performance and are quicker and easier to install. Based on the highly successful Multipoint range, the new 75 and 100 litre models are designed to significantly reduce installation time.
- Page 4 Combined pressure-reducing valve with built-in strainer Tundish Mounting brackets * Depending on demand, increased effective capacity and levels of user protection can be achieved by the use of Heatrae Sadia's thermostatic blending valve Pack U3 or U7 (See page 6).
- Page 5 1 Expansion vessel 7 Element 'On' neon 2 Pressure relief valve 8 Inlet 3 Non return valve 9 Discharge 4 Thermostats 10 Outlet 5 Safety cut-outs 11 Cable entry 6 Element plate assemblies 12 Temperature and pressure relief valves...
- Page 6 Requirements call for an expansion space (internal or external), Technical Support Heatrae Sadia offers a dedicated Specifier Advice line to provide information and safety devices to prevent the stored water exceeding 99°C, and advice on specification and installation. This is supported by a fully-trained national pipework to convey discharged hot water safely away from the sales team, all of whom are qualified to provide further guidance and support locally.
-
Page 7: Specification
• Has not been modified in any way, other than by Heatrae Sadia Heating. • Has been regularly maintained in accordance with the instructions contained in the instruction manual. - Page 8 Heatrae Sadia Heating Hurricane Way Norwich Norfolk NR6 6EA Heatrae Sadia Heating may introduce modifications to their products from time to time. Consequently, the details given in this brochure are subject to alteration without notice.
