Integrating Dell PowerConnect W-AirWave 7.4
AMP with Centralized NMS Event Correlation
Overview
This document describes AMP's alert/trap workflow when integrating with a centralized NMS Event Correlation
System, using the following topics:
"Adding NMS Event Correlation Servers to AMP" on page 1
"Configuring Alerts/Traps in AMP" on page 1
"Viewing Alerts in Various Destinations" on page 2
"Acknowledging Alerts" on page 3
"Compiling AMP's MIB on NMS" on page 3
"Matching AMP's Severity in the NMS Event Correlation Servers" on page 3
"Enhanced Integration" on page 4
"Actual MIB" on page 4
Adding NMS Event Correlation Servers to AMP
1. Navigate to AMP Setup > NMS and click Add.
2. Configure server settings, as shown in
Figure 1
AMP Setup > NMS Page Illustration
Configuring Alerts/Traps in AMP
1. Navigate to Systems > Triggers, as shown in
2. Select one of the built-in Alerts/Traps.
0511042-01 | December 2011
Figure
1.
Figure
2.
1
Advertisement
Related Manuals for Dell PowerConnect W-Airwave
Summary of Contents for Dell PowerConnect W-Airwave

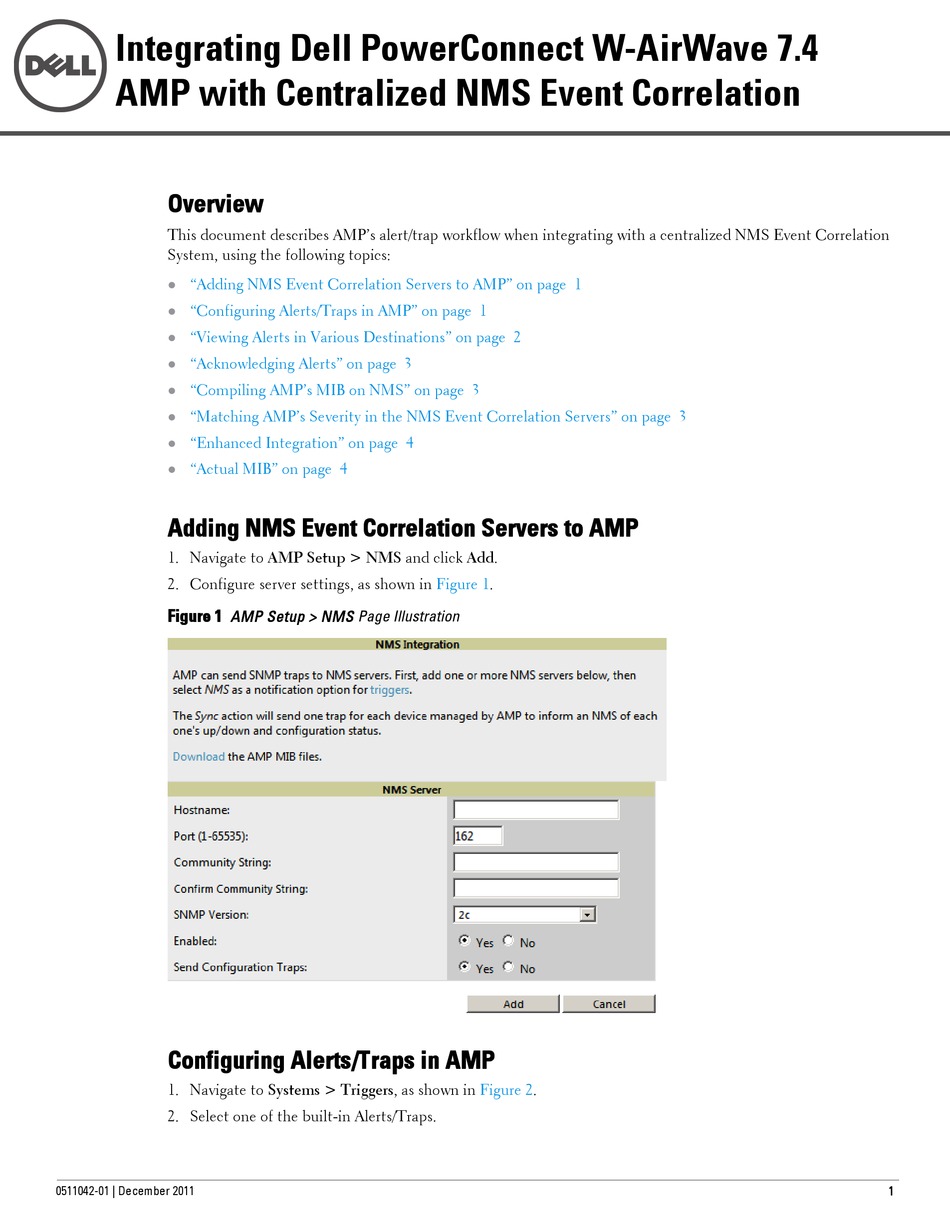

- Page 1 Integrating Dell PowerConnect W-AirWave 7.4 AMP with Centralized NMS Event Correlation Overview This document describes AMP’s alert/trap workflow when integrating with a centralized NMS Event Correlation System, using the following topics: “Adding NMS Event Correlation Servers to AMP” on page 1 ...
