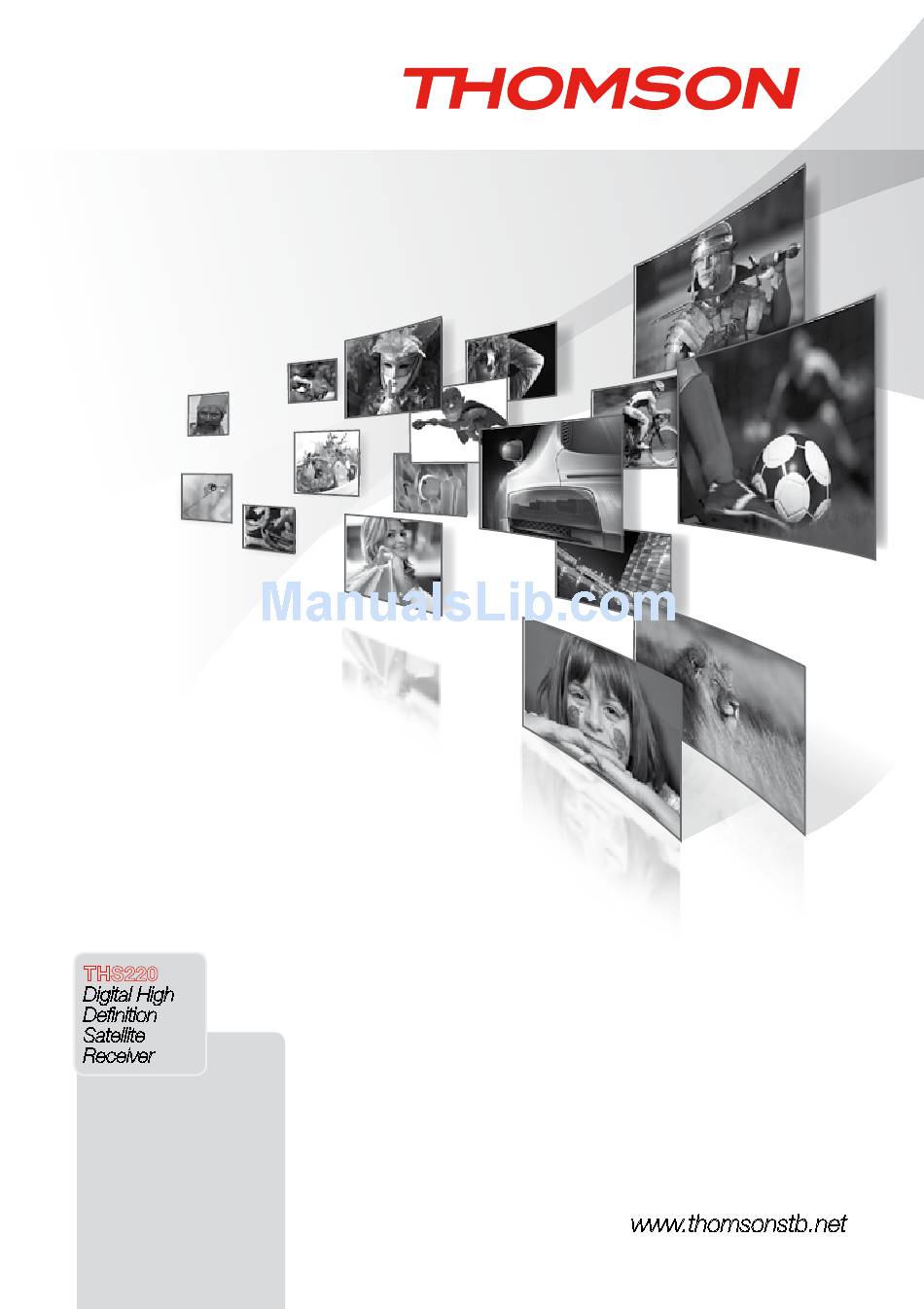

- Page 1 THS220 Digital High Definition Satellite Receiver User manual Bedienungsanleitung Manuel d’utilisation Look, Listen & Live Manuale d’uso Руководство пользователя www.thomsonstb.net...
-
Page 4: Table Of Contents
ThomsondeclaresthatthisitemcomplieswiththebasicrequirementsandotherrelevantregulationsofdirectivesCE2004/108/EC and73/23EEC;rohs2002/95/EC Subject to alterations. In consequence of continuous research and development technical specifications, design and appearance of products may change. All product names are trademarks or registered trademarks of their respective owners. © THOMSON 2012. All rights reserved. ... -
Page 5: Instruction
1.0InsTruCTIon 1.1safetyInstructions donoTInsTallYourrECEIvEr: In a closed or poorly ventilated cabinet; directly on top of or under any other equipment; on a surface which might obstruct the ventilation slots. donoTEXPosEThErECEIvErorITsaCCEssorIEs: To direct sunlight or any other equipment that generates heat; to rain or intense moisture;... -
Page 6: Equipment Set-Up
It is advised not to store important information on USB storage devices used with the receiver. Always make backups of data on your USB storage device before using it with this receiver. THOMSON will not take responsibility for any loss of information or circumstances caused by loss of information. -
Page 7: Yourreceiver
2.0YourrECEIvEr 2.1PIncodedefault:0000 2.2frontpanel Fig. 1 1. standby/onbutton: To turn the unit ON or to standby mode. 2. Channelup/down To change channels without using the remote control 3. volumeup/down To change volume without using the remote control 4. remotecontrolsensor: Receives the signal from the remote control 5. - Page 8 5. YElloW In viewing mode: changes the aspect ratio and aspect conversion of video outputs; several functions in the OSD menu and Teletext 6. bluE In viewing mode: displays the schedule menu for easy setup of timers; several functions in the OSD menu and Teletext.
-
Page 9: Installing The Batteries
28. goTo In playback mode: opens the time banner for selecting the moment where to jump to 29. P+/- Switches to the previous/next programme in TV mode 30. dTv/vCr Switches to VCR input if the receiver is in DTV state. Switches to DTV if it is in VCR state 31. -
Page 10: Connecting Multiple Fixed Lnbs Using A Diseqc 1.0 Switch
a. Connect the LNB of your satellite antenna to the SAT IN connector of your receiver using a good quality coax cable and suitable ‘F-connector’ plugs. b. Connect one end of a good quality HDMI cable to the HDMI output on your receiver and the other end to the HDMI input of your TV. -
Page 11: Quickguideforusingyourreceiver
5.0QuICkguIdEforusIngYourrECEIvEr We at THOMSON understand that you can’t wait to enjoy your new HD receiver. The following quick guide will make you familiar with the basic operation of this device. We do, however, advice you to read the full manual to get the best performance from your THOMSON HD receiver. -
Page 12: Info Banner
6.1.2Channellist Press ok in viewing mode to display the channel list. Use pq to highlight your channel of choice and press ok once to select the highlighted channel. The channel list is equipped with a Find function to make it easier to find a certain channel. -
Page 13: Subtitles
selected pages directly, as indicated on the bottom of the teletext screen. Press TEXT again or EXIT to go back to viewing mode. 6.5subtitles Some programmes support a choice of different DVB subtitle languages. Press the subTITlE button in viewing mode to display a list of available subtitle languages. Use pq to select the subtitle language and confirm with ok. -
Page 14: Mainmenu
Switching between DTV/VCR modes in operation mode is realized by using the dTv/vCr button. “AV IN” will be displayed on the front LED when receiver is in VCR mode. Press the dTv/vCr button again to return to the digital TV content. Please refer to Loop Through point in section 7.2 for more details. - Page 15 skipTvorradioprogramme 1. Select the programme you want to skip and press the grEEn button. 2. The programme will be marked to skip. The receiver will skip this programme while zapping between programmes in normal viewing mode (in the channel list mode the skipped channels remain selectable).
-
Page 16: Picture
By Encrypt: Sort the channels from free to scrambled 7.2Picture Press mEnu, then select Picture. In this menu you can adjust the video settings. Press pq to select an option and tu to adjust the setting. Press EXIT to exit the menu. aspectratio The default and recommended format is Auto. -
Page 17: Channel Search
the TV scart output of your receiver. Use this option to set the preferred loop- through mode. Running mode: The Loop through will be switched off when the receiver is in standby mode. Always: The Loop through is always on – in operation and in standby mode. - Page 18 DiSEqC1.2: Move the motor to the right position for locking the signal like explained below. Move Continue: press tu for moving West/East. It will keep moving as long as the button is hold pressed. Pressing once moves in 1°step. Move Step (1): press tu for moving West/East in 0.3° step. Store Position: to store the current motor position for the selected satellite.
- Page 19 has been completed, all found channels will be stored and the receiver will switch to the first found channel. Multi-Satellites Scan: When using a multi feed antenna with more than 1 LNB, select the satellites your antenna is adjusted to with the ok button.
-
Page 20: Time And Date Settings
7.3.7TransponderEditoptions Transponders can only be edited when the transponder list is on screen. To do this, select the satellite you wish to edit and press goTo to open the TP list. The options below are now available. Add transponder: Press rEd to add a new transponder. In the pop-up banner, enter the transponder´s data with the navigation and numeric buttons. -
Page 21: Option
Time Auto: Select On for automatic time and date updates from live signal or Off for entering them manually. Time Zone: Select the Offset from GMT standard time. Summer Time: Select On or Off depending on the year’s period. Date: Enter the date when Time Auto is set to Off. Time: Enter the time when Time Auto is set to Off. -
Page 22: System Settings
The OTA (Over the Air) function allows you to search for software updates available on satellite. Please ask your local THOMSON dealer or visit our website www. thomsonstb.net for more information. In the OTA menu all necessary THOMSON OTA settings (Satellite, Frequency, Symbol rate and Polarization) are already set per default but could also be changed manually. -
Page 23: Usb
FAT32 format. Make sure your USB device is correctly formatted. noTE: THOMSON cannot guarantee compatibility (operation and/or bus power) with all USB mass storage devices and assumes no responsibility for any loss of data that may occur when connected to this unit. - Page 24 With large amounts of data, it may take longer for the system to read the contents of a USB device. Some USB devices may not be properly recognized. Even when they are in a supported format, some files may not play or display depending on the content. 7.7.1multimedia If there is no USB device plugged in, a warning message "No USB Device is Found"...
- Page 25 Music section above). *THOMSON cannot guarantee the playback of video files although extensions are listed here, as the correct playback depends on codec used, data bit rate and resolution as well. Please consult the THOMSON Hotline in your country to get more details.
-
Page 26: Troubleshooting
There may be various reasons for abnormal operation of the receiver. Please check the receiver according to the procedures shown below. If the receiver does not work properly after checking it, please contact your local Service line or THOMSON dealer. Alternatively you can send a support mail via our website: www.thomsonstb. -
Page 27: Specifications
ProblEm PossIblE CausE WhaT To do No picture The receiver can’t receive Check the antenna cable, signal. replace the cable, or connect the cable to the receiver tightly. Incorrect values of some Set the values of tuner tuner parameters. parameters correctly in the Installation menu Wrong direction of the dish. - Page 28 Audio playback: MP3, WMA formats Picture view: JPG, BMP formats * THOMSON cannot guarantee the playback of video files although extensions are listed here, as it depends on codec used, data bit rate and resolution. Connectors SAT IN SAT OUT HDMI (V/A -Output) Type A -Version: 1.0...
- Page 29 generaldata Input voltage range: 100 – 240 V AC 50/60 Hz Power consumption: max. 18 W, typ. 6 W Power consumption in standby: max. 1.00 W Operating temperature: 0 ~ +40 °C Storage temperature: -10 ~ +50 °C Operating humidity range: 10 ~ 85% RH, Non-condensing Size (W x D x H) in mm: 224 x 164 x 44...
