Summary of Contents for Axminster SIEG

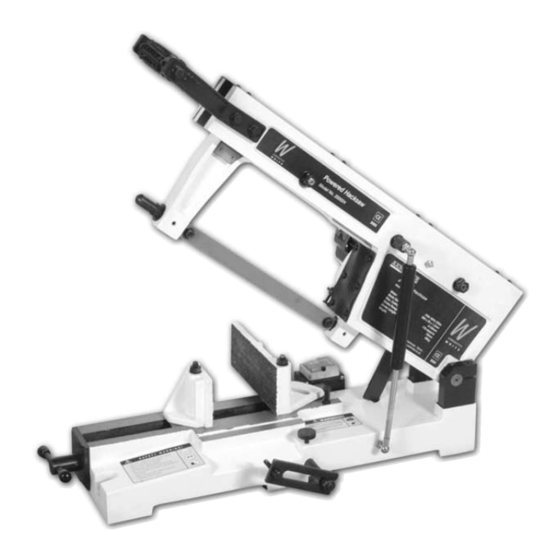

- Page 1 SIEG Powered Hacksaw Axminster Tool Centre, Unit 10 Weycroft Avenue, Axminster, Devon EX13 5PH www.axminster.co.uk...
-
Page 2: Table Of Contents
Index of Contents... Page No. Index of Contents........................02 Declaration of Conformity………….………..……..…………........03 What’s in the Box………….………..……..…………............04 General Instructions for 230v Machines............05-06 Specific Safety for the Powered Hacksaws............06 Initial Assembly Instructions...................07 Specifications….………..……..…………...............08 Illustration and Parts Description................09-10 Operation of the Powered Hacksaw..............11 Routine Maintenance..................... -
Page 3: Declaration Of Conformity
Declaration of Conformity... Copied from CE Certificate The undersigned, Ole Stilling authorised by Shanghai SIEG Machinery Co., Ltd No. 555 Caofeng Rd, South to No.17 Bridge of Caoan Rd, Shanghai, P.R China declares that this product: Bench Cutter manufactured by Shanghai SIEG Machinery Co. -
Page 4: What's In The Box
What’s in the Box... Model Number: 1 No. Powered Hacksaw 1 No. Material Length Stop Kit 1 No. Saw Blade Tool set Comprising of: 1 No. 14-17mm Open Ended Spanner 1 No. 17-19mm Open Ended Spanner 1 No. 6mm Allen Key 1 No. -
Page 5: General Instructions For 230V Machines
General Instructions for 230v Machines... Good Working Practices/Safety The following suggestions will enable you to observe good working practices, keep yourself and fellow workers safe and maintain your tools and equipment in good working order. KEEP TOOLS AND EQUIPMENT OUT WARNING!! OF THE REACH OF YOUNG CHILDREN Mains Powered Tools and Machines... -
Page 6: Specific Safety For The Powered Hacksaws
General Instructions for 230v Machines... Do not work with cutting or boring tools of any description if you are tired, your attention is wandering or you are being subjected to distraction. A deep cut, a lost fingertip or worse, is not worth it! Do not use this machine within the designated safety areas of flammable liquid stores or in areas where there may be volatile gases. -
Page 7: Initial Assembly Instructions
Customer Services personnel straight away using the numbers listed in the Axminster catalogue. Having unpacked the machine and checked it over, please store the packaging for a short period in case the machine needs to be returned to your supplier or ourselves for any reason. -
Page 8: Specifications
Specifications... Axminster No. 200024 Motor power 250W Overall Size Depth 380 x Width 820 x Height 755mm Maximum cutting capacity 130mm diameter Cutting stroke speed 170 strokes/min Blade stroke length 70mm Blade size 300 X 25 X 1.2mm Weight 68 kg... -
Page 9: Illustration And Parts Description
Illustration and Parts Description... Grease nipple Handle Saw blade Saw clamp screw Adjustable vice Gas strut Chassis Screw pin Material length stop assembly Depth stop... -
Page 10: Illustration And Parts Description
Illustration and Parts Description... Grease nipple Stop actuator Motor Latching arm Scale NVR On/Off switch 0-45˚ Vice clamp... -
Page 11: Operation Of The Powered Hacksaw
Operation of the Powered Hacksaw... This is a very simple machine to operate, there are no choices of speeds or down-feed settings to select. The arm has a supporting gas strut to take some of the weight of the arm and allow the arm to descend in a controlled fashion. -
Page 12: Routine Maintenance
Routine Maintenance... DISCONNECT THE MACHINE FROM WARNING!! THE MAINS SUPPLY. Excessive dust in the motor can cause excessive heat to develop. Every effort should be made to prevent foreign material from entering the motor. When operated under conditions likely to permit accumulations of dust, dirt or waste, a visual inspection should be made at frequent intervals. -
Page 13: Parts Breakdown For The Powered Hacksaw
Parts Breakdown for the Powered Hacksaw... -
Page 14: Parts List For The Powered Hacksaw
Parts List for the Powered Hacksaw... - Page 15 Parts List for the Powered Hacksaw Continued...
