Socket CHS 7Ci Quick Start Manual

Bluetooth cordless hand scanner (chs) 1d imager models
Hide thumbs Also See for CHS 7Ci:
Table of Contents

Advertisement

Quick Links

See also: User Manual
This document pertains to the following CHS models:
• 7Ci gray
• 7Ci yellow
• 7Ci red
• 7Ci blue
• 7Di
• 7DiRx
The part number (P/N) is labeled inside the battery compartment.
© 2010-2013 Socket Mobile, Inc. All rights reserved. Socket, the Socket logo, SocketScan, Socket Bluetooth Cordless Hand Scanner, and Business Mobility Now! are registered
trademarks or trademarks of Socket Mobile, Inc. The Bluetooth word mark and logo are registered trademarks of the Bluetooth SIG, Inc. USA, and any use by Socket Mobile, Inc. is
under license. All other trademarks and trade names contained herein may be those of their respective owners.

QUICK START GUIDE

®
Bluetooth
Cordless Hand Scanner (CHS)
1D Imager Models — CHS 7Ci, 7Di, 7DiRx
SKU# CX2870-1409 (P/N 8550-00062)
SKU# CX2883-1480 (P/N 8550-00068)
SKU# CX2885-1484 (P/N 8550-00070)
SKU# CX2887-1486 (P/N 8550-00071)
SKU# CX2877-1472 (P/N 8550-00065)
SKU# CX2879-1474 (P/N 8550-00066)

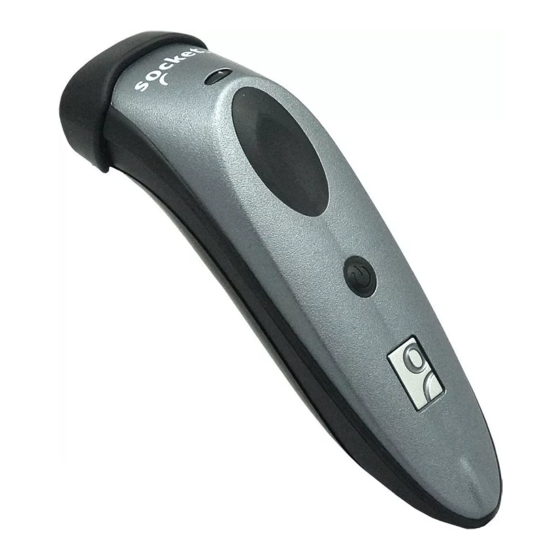

LED
Trigger button
Power button
(also for iOS Keyboard Pop-up)
Model shown: CHS 7Di

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHS 7Ci and is the answer not in the manual?

Questions and answers

Related Manuals for Socket CHS 7Ci

Summary of Contents for Socket CHS 7Ci

  • Page 1: Quick Start Guide

    © 2010-2013 Socket Mobile, Inc. All rights reserved. Socket, the Socket logo, SocketScan, Socket Bluetooth Cordless Hand Scanner, and Business Mobility Now! are registered trademarks or trademarks of Socket Mobile, Inc. The Bluetooth word mark and logo are registered trademarks of the Bluetooth SIG, Inc. USA, and any use by Socket Mobile, Inc. is...

  • Page 2: Package Contents

    EU +49 9401 5299 036 Software Development Kit: SocketScan 10 SDK for Apple iOS, Android, Windows and BlackBerry is available to members of the Socket Mobile Developer Program ($19.95 / year). Learn more at: http://developer.socketmobile.com/ Thank you for choosing Socket Mobile!

  • Page 3: Scanner Setup

    SCANNER SETUP Insert the Batteries: Unlock the battery cover by using a screwdriver or coin to turn the lock under the CHS to a horizontal position. Remove the battery cover. Install the batteries in their correct position as indicated by the +/- symbols. IMPORTANT! Only use NiMH batteries.

  • Page 4: Basic Functionality

    BASIC FUNCTIONALITY Powering ON: Press and hold down the small power button until the LED turns blue and the CHS beeps twice (low-high). Powering OFF / Disconnecting: Press and hold down the small power button until the CHS beeps twice (high-low). Scanning Barcodes: After connecting the CHS to your device, open an application.
  • Page 5 HID vs. SPP vs. iOS MODE The CHS supports three modes, based on different types of Bluetooth connections: • Human Interface Device (HID): Default mode of CHS. No software installation required. • Serial Port Profile (SPP): Highly recommended, allows two-way communications with Android, BlackBerry and Windows.

  • Page 6: Apple Ios

    3. Enable Bluetooth on the Apple device. A Bluetooth device search will begin. 4. In the list of found devices, select Socket CHS [xxxxxx]. If prompted, tap Pair. The characters in brackets are the last 6 characters of the Bluetooth Address, which is labeled in the CHS battery compartment.
  • Page 7 3. Enable Bluetooth on the Apple device. A Bluetooth device search will begin. 4. In the list of found devices, select Socket CHS [xxxxxx]. If prompted, tap Pair. The characters in brackets are the last 6 characters of the CHS Bluetooth Address, which is labeled in the CHS battery compartment.
  • Page 8 To pair and connect the CHS and Android device: (required only the first time you connect) 1. Power on the CHS. 2. In SocketScan 10, touch Menu | Socket EZ Pair. 3. Scan the barcode on the screen. The CHS will beep 3 times.
  • Page 9 Task Tray Icon CHS not connected. CHS connected. 10. Close Socket EZ Pair. The Registration screen will appear. Follow the instructions to register your CHS. Now you are ready to scan barcodes, see instructions on page 4. To connect to a new device, you must first unpair the CHS. See page 4.
  • Page 10 After they pair and connect, the CHS will beep once to confirm the connection, then beep twice to signal a disconnection. Click Menu | Close to close Socket EZ Pair. SocketScan 10 will try to connect to the CHS. If asked to confirm, click Yes. After the CHS connects and is ready to scan barcodes, it will beep once.

  • Page 11: Command Barcodes

    COMMAND BARCODES Scan command barcode(s) to quickly configure the CHS. Make sure the CHS is not connected to a host computer or device before scanning a command barcode! To use the CHS on multiple hosts, perform the unpair sequence. For instructions, see page 4.

  • Page 12: Onscreen Keyboard

    Beep Settings Beep after CHS Decodes Data ON (default) Enables CHS to beep to indicate successful scans. Beep after CHS Decodes Data OFF Disables CHS from beeping to indicate successful scans. Beep after Host Receives Data ON (default) Enables CHS to beep after a host computer or device acknowledges a successful scan.
