Quick Start Guide

®

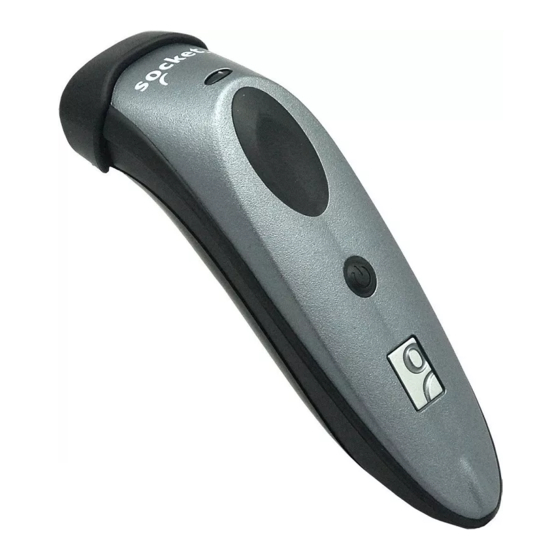

Cordless Hand Scanner
CHS 7Ci, 7Di, 7DiRx
7Ci
SKU# CX2870-1409 (P/N 8550-00062)
7Di
SKU# CX2877-1472 (P/N 8550-00065)
7DiRx SKU# CX2879-1474 (P/N 8550-00066)
LED
Trigger button

Power button

Power connector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHS 7Ci and is the answer not in the manual?

Questions and answers

Related Manuals for Socket CHS 7Ci

Summary of Contents for Socket CHS 7Ci

  • Page 1: Quick Start Guide

    © 2011-2013 Socket Mobile, Inc. All rights reserved. Socket, the Socket logo, SocketScan, Socket Bluetooth Cordless Hand Scanner, and Business Mobility Now! are registered trademarks or trademarks of Socket Mobile, Inc. The Bluetooth word mark and logo are registered trademarks of the Bluetooth SIG, Inc. USA, and any use by Socket Mobile, Inc. is under license.

  • Page 2: Software And Documentation Downloads

    Thank you for choosing Socket! The Socket Bluetooth Cordless Hand Scanner (CHS) 7Ci, 7Di and 7DiRx are portable handheld barcode scanners that are small, light, and comfortable to use, and enable you to scan data from 1D barcodes into a wide variety of computers, smartphones, and PDAs.

  • Page 3: Scanner Setup

    Cradle for 7Di SKU# AC4055-1382 Cradle for 7DiRx SKU# AC4056-1383 Bluetooth Friendly Name (Default): Socket CHS [XXXXXX] The characters in brackets are the last 6 characters of the CHS Bluetooth Device Address (BDA). Bluetooth Device Address (BDA): XX:XX:XX:XX:XX:XX The BDA is labeled in the CHS battery compartment and...

  • Page 4: Basic Functionality

    Basic Functionality Powering ON: Press and hold down the small power button until the LED turns blue and the CHS beeps twice (low-high). Powering OFF / Disconnecting: Press and hold down the small power button until the CHS beeps twice (high-low). Scanning Barcodes: After connecting the CHS to your computer or device, open an application.
  • Page 5 SPP at: http://www.socketmobile.com/pdf/techbrief/socketscan-10-sdk_white-paper.pdf • The SPP instructions in this Quick Start Guide are based on Socket EZ Pair, a feature of SocketScan 10 software. To learn how to connect by scanning a custom barcode, please refer to the User’s Guide.

  • Page 6: Apple Ios

    Enable Bluetooth on the Apple device. A Bluetooth device search will begin. In the list of found devices, select Socket CHS [xxxxxx]. If prompted, tap Pair. After they pair and connect, the CHS will beep once to confirm the connection. Now whenever you power on the CHS, it will automatically try to connect to your device.
  • Page 7 2. Turn on Bluetooth on your Android device. Make sure it is Discoverable and start a device search / scan for devices. 3. In the list of found devices, touch Socket CHS. If a pop-up appears, touch Pair & connect. If prompted for a passkey, enter 0000 (four zeroes).
  • Page 8 Compatible with Windows Mobile 6.x with Microsoft or Broadcom Bluetooth stack. To install the software: If you have the Socket SoMo 650 Service Pack 8 or later or the SoMo 655, SocketScan 10 is pre-loaded. To install, in the Today screen, tap Getting Started. Select the option to install SocketScan 10.
  • Page 9 Socket CHS. If prompted for a passkey, enter 0000 (four zeroes). If prompted, choose the service Socket Serial Port. Select an available COM for the CHS. 3. Make sure SocketScan 10 is running. Click on the SocketScan 10 desktop icon 4.
  • Page 10 Turn on Bluetooth on your PDA or PC and start a device search / add a new device. In the list of found devices, select Socket CHS. If prompted for a passkey, enter 0000 (four zeroes). If prompted to select services, select Input Device.

  • Page 11: Command Barcodes

    Command Barcodes Print out and scan command barcode(s) to quickly configure the CHS. The factory default setting of the CHS is Bluetooth HID mode as a Keyboard device. IMPORTANT! 1. Make sure the CHS is not connected to a host computer or device before scanning a command barcode! 2.

  • Page 12: Beep Settings

    Beep Settings Beep after CHS Decodes Data ON (default) Enables CHS to beep to indicate successful scans. Beep after CHS Decodes Data OFF Disables CHS from beeping to indicate successful scans. Beep after Host Receives Data ON (default) Enables CHS to beep after a host computer or device acknowledges a successful scan.
