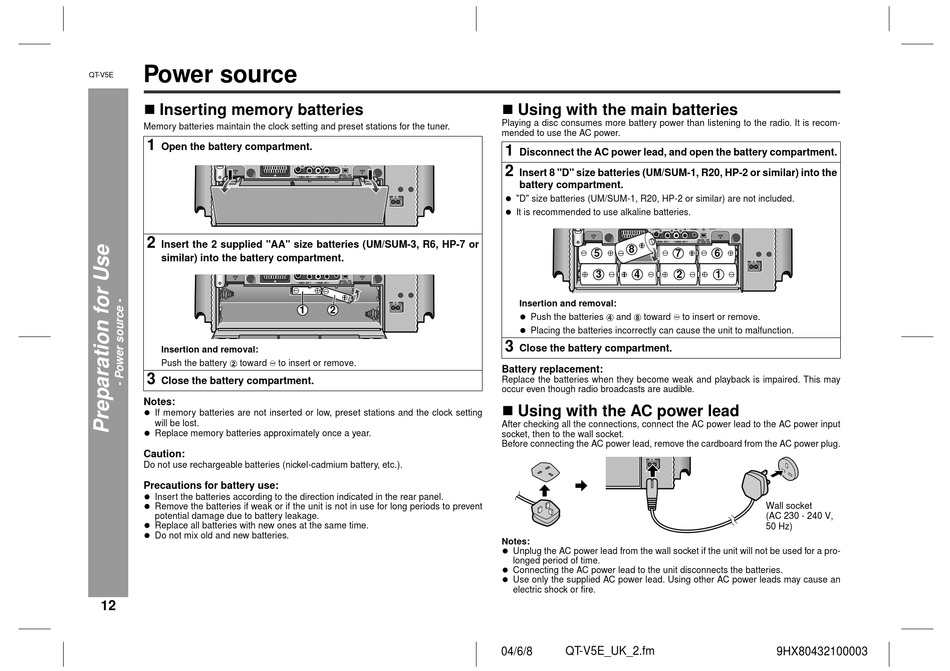

Power source

QT-V5E
" Inserting memory batteries
Memory batteries maintain the clock setting and preset stations for the tuner.
1
Open the battery compartment.
2
Insert the 2 supplied "AA" size batteries (UM/SUM-3, R6, HP-7 or
similar) into the battery compartment.
Insertion and removal:
Push the battery toward
3
Close the battery compartment.
Notes:
! If memory batteries are not inserted or low, preset stations and the clock setting
will be lost.
! Replace memory batteries approximately once a year.
Caution:
Do not use rechargeable batteries (nickel-cadmium battery, etc.).
Precautions for battery use:
! Insert the batteries according to the direction indicated in the rear panel.
! Remove the batteries if weak or if the unit is not in use for long periods to prevent
potential damage due to battery leakage.
! Replace all batteries with new ones at the same time.
! Do not mix old and new batteries.
12
1 2
to insert or remove.
" Using with the main batteries
Playing a disc consumes more battery power than listening to the radio. It is recom-
mended to use the AC power.
1
Disconnect the AC power lead, and open the battery compartment.
2
Insert 8 "D" size batteries (UM/SUM-1, R20, HP-2 or similar) into the
battery compartment.
! "D" size batteries (UM/SUM-1, R20, HP-2 or similar) are not included.
! It is recommended to use alkaline batteries.
8
5 7
3 4 2
Insertion and removal:
! Push the batteries
and toward
! Placing the batteries incorrectly can cause the unit to malfunction.
3
Close the battery compartment.
Battery replacement:
Replace the batteries when they become weak and playback is impaired. This may
occur even though radio broadcasts are audible.
" Using with the AC power lead
After checking all the connections, connect the AC power lead to the AC power input
socket, then to the wall socket.
Before connecting the AC power lead, remove the cardboard from the AC power plug.
Notes:
! Unplug the AC power lead from the wall socket if the unit will not be used for a pro-
longed period of time.
! Connecting the AC power lead to the unit disconnects the batteries.
! Use only the supplied AC power lead. Using other AC power leads may cause an
electric shock or fire.
QT-V5E_UK_2.fm
04/6/8
6
1
to insert or remove.
Wall socket
(AC 230 - 240 V,
50 Hz)
