9110 USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9110 and is the answer not in the manual?

Questions and answers

Related Manuals for Aastra 9110

Summary of Contents for Aastra 9110

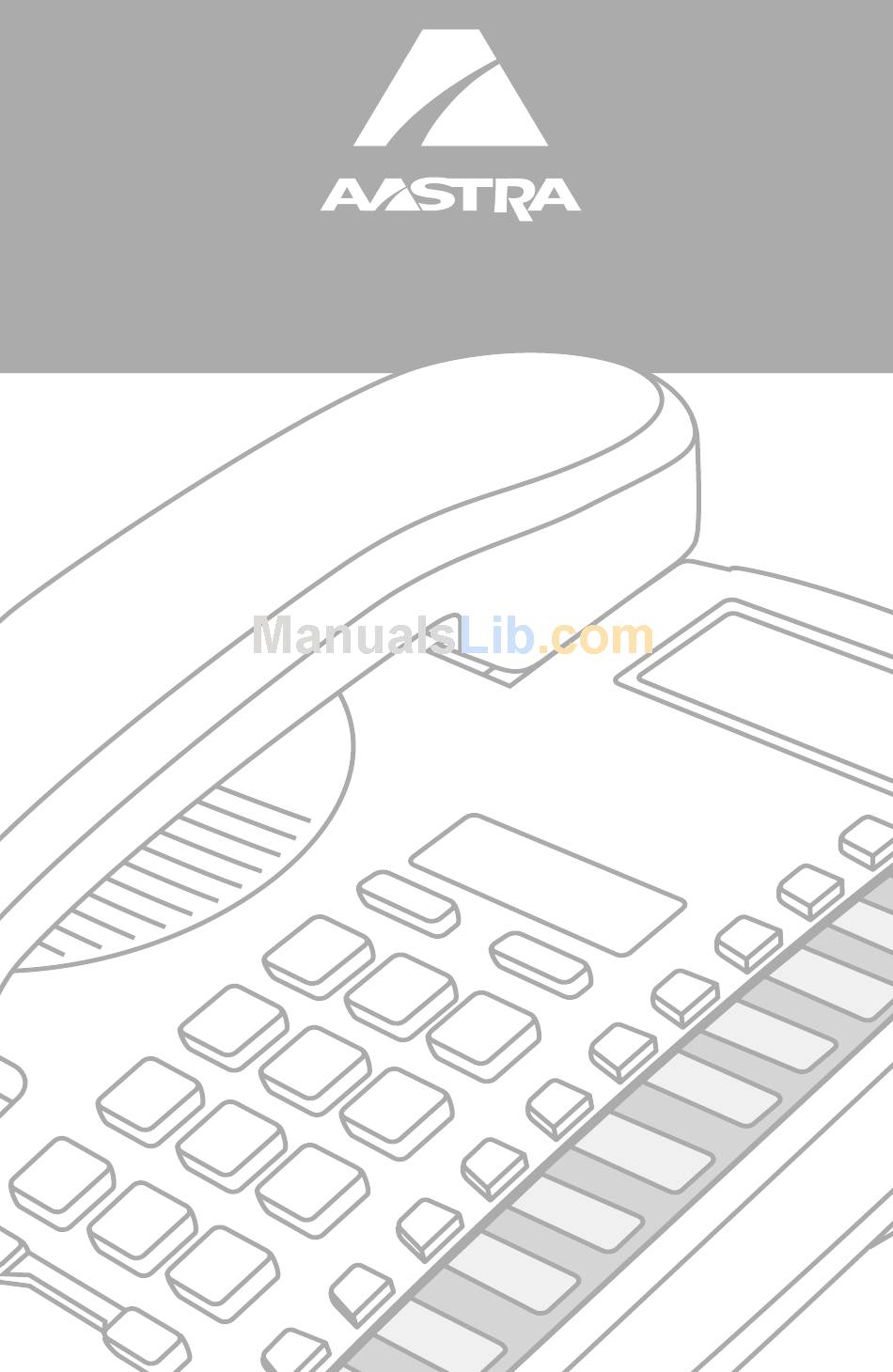

  • Page 1 9110 USER GUIDE...

  • Page 2: Table Of Contents

    Introduction ... 2 Emergency service Feature ... 2 Unpacking your phone ... 2 Key Descriptions ... 3 Basic Installation... 5 Making and Answering Calls ... 8 Making a call ... 8 Answering a Call ... 8 Using the Hold Key... 8 Making a Handsfree call...

  • Page 3: Introduction

    Congratulations..on the purchase of your 9110 telephone. This guide contains operating information for your 9110. The 9110 is an advanced single-line telephone, that offers the following features: • Handsfree (speakerphone) with mute capabilities • 7 speed dial positions for frequently called numbers or feature access codes •...

  • Page 4: Key Descriptions

    Key Descriptions Handset Set Indicator Light Ringer Switch Data Jack Volume Bar Dial Pad Handsfree/Mute 7 Memory Keys...
  • Page 5 Keys Set Indicator Flashes when the telephone rings, or when a call is on hold; lights Light up when a message is waiting. See Set indicator light on page 9 for more information. 7 Programmable Stores a number or feature for easy access. Keys Ends an active call.

  • Page 6: Basic Installation

    Basic Installation 1. Connect the Handset Cord Attach one end of the coiled handset cord to the handset and the other end to the handset port the telephone. Route the handset cord along the groove leading off the side of the telephone as shown in the illustration.
  • Page 7 4. Attach the line cord to the telephone stand 5. Wall mounting installation Route the line cord along the groove on the telephone stand as shown in the illustration. 6. Wall mounting installation with stand The telephone can be wall mounted at an angle (tipped back slightly) by using the stand.
  • Page 8 SpeciÞcally, only use a two conductor modular line cord. Substitution of non-approved parts will void the Aastra Telecom Inc., warranty. If you have a question about your installation or safety concerns, please call 1-800-574-1611 to speak with our representative.

  • Page 9: Making And Answering Calls

    15 minutes, the call is automatically dropped. Note: The 9110 automatically releases a call on hold when a person on an extension telephone on the same line picks up the call. If you don’t hang up the handset after you have put a call on hold and that call is picked up by someone at another extension, the call is taken off hold but remains connected to your telephone.

  • Page 10: Muting A Handsfree Call

    9110. The ringer volume can be set to low, medium, or high. Set Indicator Light The set indicator light, located on the top right hand corner of the Model 9110, flashes and illuminates to provide information as follows: Set indicator light flashes very quickly.

  • Page 11: Memory Keys

    Saving numbers into memory keys You can save up to 7 speed dial numbers of your customers, business associates, or anyone you call frequently in 9110’s seven memory keys. To save a telephone number in a memory key: Lift the handset or press while you save).

  • Page 12: Making Calls From Memory Keys

    Making calls from memory keys To call from a memory key: Lift the handset or press Press the memory key to obtain the number you wish to dial. Deleting memory keys To delete a memory key: Lift the handset or press while you delete).

  • Page 13: Using Features Keys

    Using the Dataport Located on the right hand side of the Model 9110, the dataport can be used to connect another device such as a fax machine or computer modem to the phone. Plug one end of the line cord to the phone and the other end to the device to be connected.
  • Page 14 Calling from a memory key 11 from the Redial List 9 Calls handsfree 8 holding 8 muting 9 Deleting memory keys 11 Directory 10 Handsfree 8 Helpful hints see Troubleshooting 12 Hold 8 Installation 5 Key descriptions 3 Memory keys 10 cannot program 12 deleting 11 editing 11...
  • Page 15 ENERAL INQUIRIES If you have read the guide and you still have questions, call 1-800-574-1611 in Canada and the USA. In other areas, contact your telephone company. © Aastra Telecom Inc., 2004 -0067-00 Rev 02...
