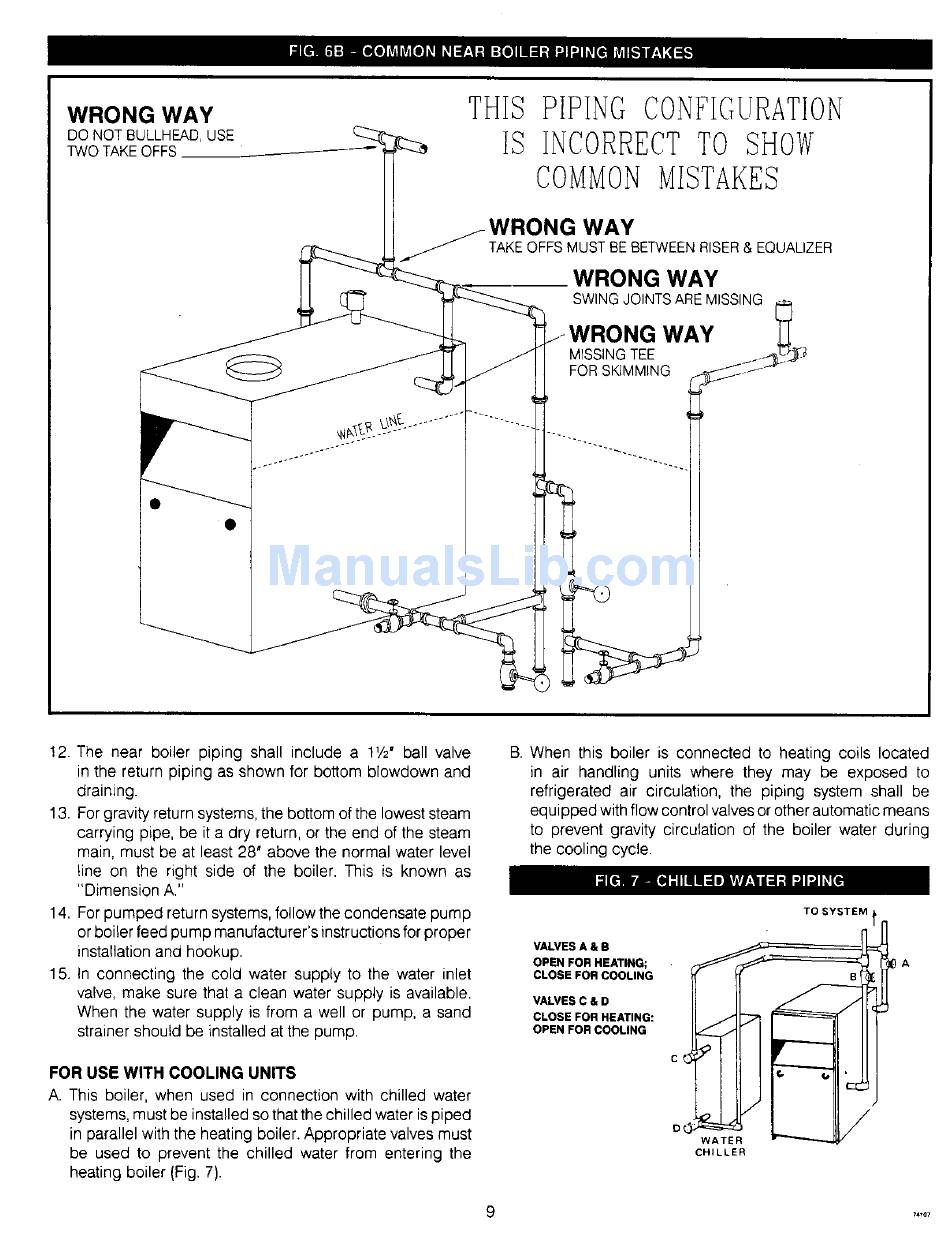

WRONG WAY
DO NOT BULLHEAD,USE
TWO TAKEOFFS
THIS PIPING CONFIGURATION
IS INCORRECT TO SHOW
COMMON MISTANES
WRONG WAY
TAKE OFFS MUST BE BETWEEN RISER & EQUALIZER
WRONG WAY
SWING JOINTS ARE MISSING
)NG WAY
MISSING TEE
FOR SKIMMING
12. The near boiler piping shall include a 1V2" ball valve
in the return piping as shown for bottom blowdown and
draining.
13. For gravity return systems, the bottom of the lowest steam
carrying pipe, be it a dry return, or the end of the steam
main, must be at least 28' above the normal water level
line on the right side of the boiler. This is known as
"Dimension A."
14. For pumped return systems, follow the condensate pump
or boiler feed pump manufacturer's instructions for proper
installation and hookup.
15. In connecting
the cold water supply to the water inlet
valve, make sure that a clean water supply is available.
When the water supply is from a well or pump, a sand
strainer should be installed at the pump.
FOR USE WITH COOLING UNITS
A. This boiler, when used in connection
with chilled water
systems, must be installed so that the chilled water is piped
in parallel with the heating boiler. Appropriate valves must
be used to prevent the chilled water from entering the
heating boiler (Fig. 7).
B. When this boiler is connected
to heating coils located
in air handling units where they may be exposed to
refrigerated
air circulation,
the piping system shall be
equipped with flow control valves or other automatic means
to prevent gravity circulation
of the boiler water during
the cooling cycle.
VALVES A & B
OPEN FOR HEATING;
CLOSE FOR COOLING
VALVES C & D
CLOSE FOR HEATING:
OPEN FOR COOLING
TO SYSTEM
t
C
O
CHILLER
_4_o 7
