Philips Lightolier Solution Series Specifications

Fully Recessed Architectural Emergency Lighting

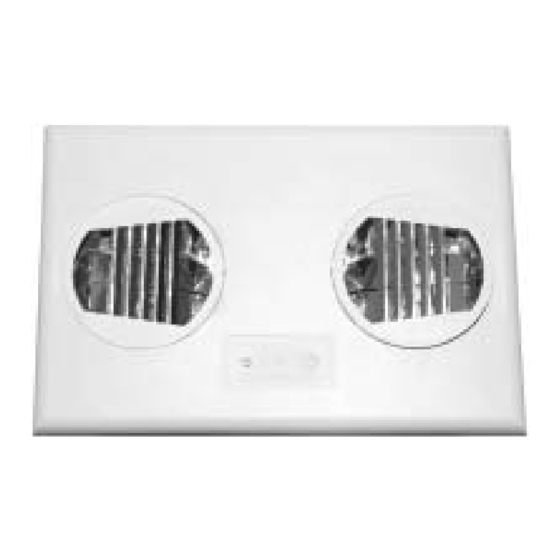

SOLWCLSD2
15.5"
(39.4 cm)
10.5"
(26.7 cm)
3.7"
.5"
(9.4 cm)
(1.3 cm)
9.0"
(22.9 cm)
SOLWWLSD2
15.5"
(39.4 cm)
10.5"
(26.7 cm)
.5"
3.7"
(1.3 cm)
(9.4 cm)
.56"
(1.4 cm)
9.0"
(22.9 cm)
Features
Illumination: Illumination
is provided by two high-
performance 35 W MR16
lamps combined with a
reflector system. Optical
assemblies can be rotated
from 0° to 90° for corner
installations. IES photometric
data files are available upon the
13.6
website.
(34.5 cm)
Installation: Mechanical or
sheetrock ceiling installation
is enabled using optional bar
hangers or structural support
wire (supplied by others).
Housing: Backbox
constructed of 20 gauge
galvanized steel. Flush cover
and diffusers constructed of
impact-resistant polycarbonate.
Optional white or black
housing is available. Suitable for
wall or ceiling mounting. Wall
mounted units can be fastened
to wood or metal studs from
either the left or right side.
Mechanical ceiling mounting
13.6
is accomplished with grid
(34.5 cm)
ceiling bar hangers (ordered
separately).
Operating Temperature
Range:
65°F (19°C) to 85°F (30°C).
Solution Series
Diagnostic Electronics
(standard): 120/277 VAC
dual voltage input with surge
protection is standard on all
models. Charging system is
microprocessor driven with
software embedded diagnostic
routine and precision
temperature compensation.
Surge protection, brownout,
AC lockout, and low voltage
disconnect features are
standard.
Self-Testing Diagnostics
(optional): The diagnostic/
charging platform with optional
self-testing mode automatically
runs a one-minute self-test
every 30 days and a 30-minute
test on the sixth and twelfth
month. A one-minute or
90-minute test may be initiated
via the push to test switch on
the unit or by activating the
appropriate test command on
the optional IR test device.
Job Information Type:
Job Name:
Cat. No.:
Notes:
Page 1 of 2
Electrical Specifications:
0.27 A (120 VAC)
0.13 A (277 VAC)
Battery: Maintenance-free,
sealed lead calcium batteries
supply 90 minutes of
emergency power. Estimated
service life of 5 to 7 years.
Code Compliance
UL 924 listed for insulated
ceiling systems (IC rated).
NFPA 101, NEC, BOCA,
OSHA and IBC illumination
standards. Meets ADA
specifications for wall mounted
lighting fixtures.
Warranty
Three year full electronics
warranty. One year full plus
four year prorated lead calcium
battery warranty.
