- Page 1 COOKTOP PARTS 15" ELECTRIC CERAN 2 BURNER For Models: KECC051HBL05, KECC051HWH05, KECC051HBT05 COOKTOP (Black) (White) (Biscuit) 10−03 Litho in U.S.A. (cre) Part No. 8186139...

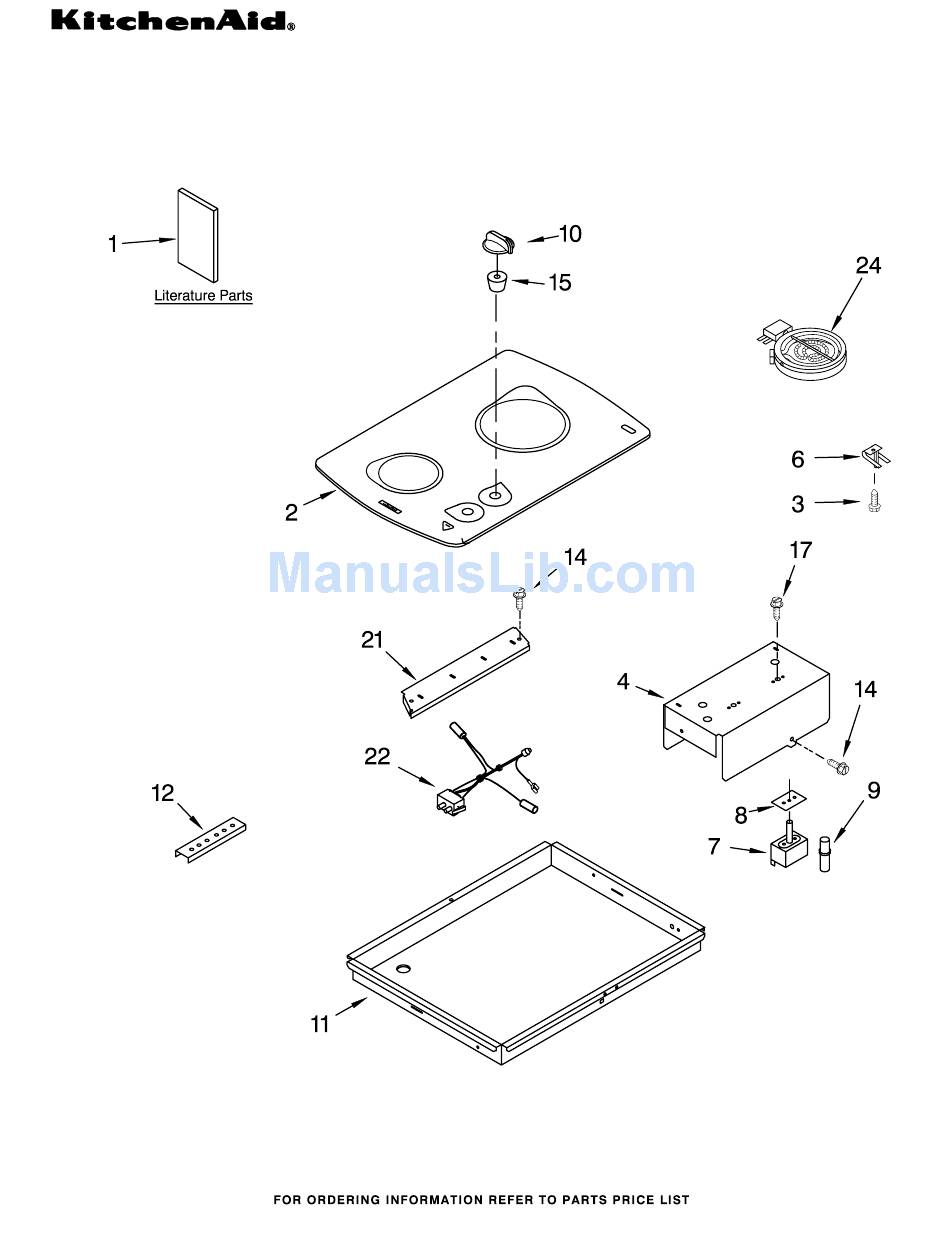

- Page 2 COOKTOP PARTS For Models: KECC051HBL05, KECC051HWH05, KECC051HBT05 (Black) (White) (Biscuit) Illus. Part DESCRIPTION Literature Parts LIT8285316 Installation Instructions LIT3192609 Wiring Diagram LIT4456574 Use & Care Guide LIT3191638 Safer Cooking Tips COOKTOP PARTS Cooktop, Glass 4455581 Black 4455582 White 4455583 Biscuit 246119 Screw 3192702 Bracket, Switch Mounting...
- Page 3 MISCELLANEOUS PARTS For Models: KECC051HBL05, KECC051HWH05, KECC051HBT05 (Black) (White) (Biscuit) Illus. Part DESCRIPTION FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRES−−25FT. LENGTH 242828 Wire, Black 12 Ga. 150 C 242820 Wire, Black 14 Ga. 150 C 242822 Wire, Blue 14 Ga. 150 C 242830 Wire, Brown 14 Ga.
