Owner's
Manual
CRRFTSl4Rli °

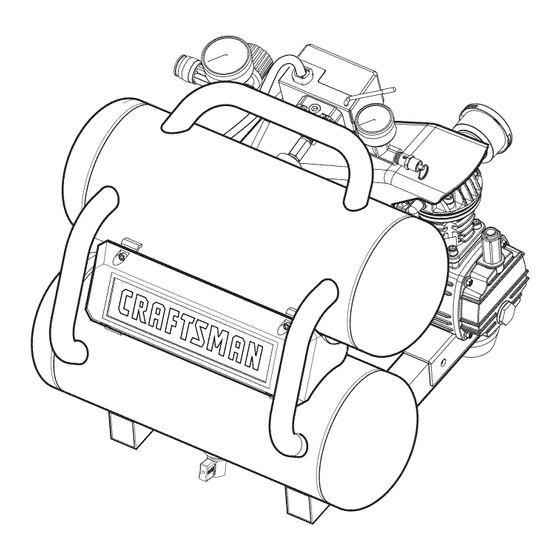

AiR COMPRESSOR
4-gallon
1HP
Direct-Drive,
Oil-Lubricated
Model No. 921.164780
CAUTION"
Before using this product,
read this manual
and follow
all its Safety Rules and
Operating
Instructions.
• Safety Instructions
• Installation
& Operation
• Maintenance
& Storage
• Troubleshooting
Guide
• Parts List
• Espa_ol,
p. 11
Sears
Brands
Management
Corporation,
Hoffman
Estates,
IL 60179
U.S.A.
www.sears.com/craffsman
11/03/2011
Part No. 101-3368
Advertisement
Chapters
Table of Contents
Related Manuals for Craftsman 921.164780
Summary of Contents for Craftsman 921.164780
- Page 1 Owner's Manual CRRFTSl4Rli ° AiR COMPRESSOR 4-gallon Direct-Drive, Oil-Lubricated Model No. 921.164780 CAUTION" • Safety Instructions Before using this product, • Installation & Operation read this manual and follow • Maintenance & Storage all its Safety Rules and • Troubleshooting Guide •...
-
Page 2: Table Of Contents
Exploded View ............Parts List ............... Espadol ..............CRAFTSMAN ONE YEAR FULL WARRANTY FOR ONE YEAR from the date of purchase, this product is warranted against any defects in material or workmanship. defective product will receive free repair or replacement if repair is unavailable. -
Page 3: Safety Symbols
Safety Symbols The information listed below should be read and understood by the operator. This information is given to protect the user while operating and storing the air compressor. We utilize the symbols below to allow the reader to recognize important information about their safety. -
Page 4: Important Safety Instructions & Guidelines
Important Safety Instructions & Guidelines Risk of Breathing Avoid using the air compressor in confined areas. Always have adequate space (12 inches) on all sides of the air compressor. Also keep children, pets, and others out of the area of operation. This air compressor does not provide breathable air for anyone or _:74o,._,hm!_.,2.,. -
Page 5: Parts & Features
Parts & Features See figures below for reference. Quick Connect The air pressure coming from the air tank is controlled by the Offers a quick release feature for regulator. To increase the pressure turn the knob clockwise and to attaching and removing the air hose. -
Page 6: Installation & Assembly
Installation & Assembly The air compressor should be turned off, unplugged from the power source, the air bled from the tank and the unit Grounded allowed time to cool before any maintenance is performed. Outlet Personal injuries could occur from moving parts, electrical sources, compressed air or hot surfaces. -
Page 7: Operating Procedures
Operating Procedures Daily Start-Up Procedures 6. Plug the power cord into the proper receptacle. 1. Set the Auto/Off lever to the Off position. 7. Turn the Auto/Off lever to the Auto position and the 2. inspect the air compressor, air hose, and any compressor will start and build air pressure in the accessories/tools being used for damage or obstruction. -
Page 8: Maintenance
Maintenance NOTE: Any service procedure not covered in the Before each use items to Check/Change maintenance schedule should be performed or daily qualified service personnel. Check Tank Safety Valve Overall Unit Visual Check The air compressor should be turned off, unplugged Check Air Filter from the power source, air bled from the tank and Drain Tank... - Page 9 Troubleshooting Guide The air compressor should be turned off and unplugged from the power source before any maintenance is performed as well as the air bled from the tank and the unit allowed time to cool. Personal injuries could occur from moving parts, electrical sources, compressed air, or hot surfaces. PROBLEM POSSIBLE CORRECTION...
-
Page 10: Parts List
Air Compressor Model 16478 Parts List 20-- / 57_\ 32-- 33 --, 37 -/... - Page 11 Model 16478 Compressor Parts List Part No. Description Quantity Ref. Part No. L Ref. Description Quantity J Screw, M 6X 1.0ram X 30ram Screw,Hex FlangeHead,M8 x 1.25x 50 mm 3 Washer, L ockM6 Washer, FlatM8 E100227 Head,Cylinder E101346 Plate,MotorMounting 1&3 Gasket, H eadtoValvePlate Tank Assembly,4 gallonSS L14SHPS E100228 Plate,Valve...
-
Page 13: Sears Brands Management
Manual de CRRFTSMRll ° COMPRESOR DE AIRE 15.1 LITROS De impulsi6n directa, iubricada con aceite # de Modelo 921.164780 PRECAUCION: • Instrucciones y pautas de Antes de usar seguridad importantes el producto, lea este manual y siga • Instalaci6n y operacion sus reglas e instrucciones •... - Page 14 Diagn6stico y correcci6n de fallas ..........Lista de partes ............GAFIANTiA UN AKIO DE GAFIANTiA DE GANATiA DE CRAFTSMAN DURANTE UN ANO desde la fecha de compra, este producto tiene garantia contra defectos en los materiales o en la fabricaci6n. Los productos defectuosos...
- Page 15 Simboios comunes de seguridad El operador debe leer y entender la informaci6n descrita a continuaci6n. Esta informaci6n se ofrece para proteger al usuario al operar y almacenar el compresor de aire. Los simbolos siguientes son los que se utilizan para indicar al lector informaci6n que es importante para su seguridad.
- Page 16 lnstrucciones y pautas de seguridad importantes Evite utilizar el compresor de aire en _reas encerradas. Siempre tenga un espacio Riesgo para la libre adecuado (30 cm.) en todos los lados del compresor. Tambi6n mantenga fuera respiraci6n del _rea de operaci6n alas mascotas, nifios y otras personas. Este compresor de aire no provee aire que pueda ser respirado ni empleado con un dispositivo respiratorio auxiliar.
- Page 17 Partes y caracteristicas Como referencia, yea las figuras abajo. La presi6n del aire que sale del tanque es controlada por el Permite conectar y desconectar regulador. Para aumentar la presi6n, gire la perilla en direcci6n de | I Conector de acoplamiento r_pido r_pidamente la manguera del aire.
- Page 18 Instalaci6n y ensamblaje con terminal de tierra (ver la figura a continuaci6n). clavija debe enchufarse en un tomacorriente instalado y Antes de darle cualquier tipo de mantenimiento puesto a tierra segQn las normas locales. Hable con un compresor de aire, se debe apagar y desconectar de la electricista o agente de servicio calificado...
- Page 19 Proced imientos de operaci6n Procedimiento diario de arranque Enchufe el cable de corriente en un tomacorriente 1. Ponga el interruptor Auto/Off en la posici6n de apagado (Off). apropiado. 2. Vedfique que el compresor deJ aire, la manguera de Mueva el interruptor Auto/Off a la posici6n de encendido aire y todos los accesorios/herramientas utilizados, no (Auto);...
- Page 20 Mantenimiento NOTA: Cualquier procedimiento de servicio que no est6 Asuntos para verificadcam- Antes de cada uso cubierto en el programa de mantenimiento que sigue deber_ biar o diariarnente set efectuado el personal de servicio calificado. Revisar la v_lvula de seguridad del tanque Antes de dar mantenimiento al equipo, se debe apagar Revisar visualmente el aspecto...
- Page 21 Diagn6stico y correcci6n de fallas Antes de dar mantenimiento al equipo, se debe apagar y desconectar del tomacorriente, como purgar el aire del tanque y permitir que la unidad se enfde. Las partes en movimiento, las fuentes el6ctricas, el aire comprimido y las superficies calientes pueden provocar lesiones. PROBLEMA POSiBLE CORRECCION Fuga de aire en la v_lvula de...
- Page 22 Modeio 16478 Compresor de aire Lista de ias piezas /8-- 2o _I VIEW: A - A 32 --_ 33 _, _'\, 37 _...
- Page 23 16478 Compresor de aire Modeio Lista de ias piezas Cantidad Ref. Juego Pieza Descripci6n Cantidad ] L Ref. Juego Pieza Descripci6n Tornillo,M6 X 1.0 mmX 30 mm Conjuntode tanque,4 galonesSS L14SHPS Arandelade frenoM6 E100227 Culatade cilindro 1 & 3 Juntade culata,placade v_lvula E100228 Placade v_lvula E101208 Wlvula de seguridad,puertosuperior...
- Page 24 Your Home For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter made it, no matter who sold For the replacement parts, accessories owner's manuals that you need to do-it-yourself. For Sears professional installation of home appliances...
- Page 25 Owner's Manual CRRFTSl4Rli ° AiR COMPRESSOR 4-gallon Direct-Drive, Oil-Lubricated Model No. 921.164780 CAUTION" • Safety Instructions Before using this product, • Installation & Operation read this manual and follow • Maintenance & Storage all its Safety Rules and • Troubleshooting Guide •...
-
Page 26: Troubleshooting Guide
Exploded View ............Parts List ............... Espadol ..............CRAFTSMAN ONE YEAR FULL WARRANTY FOR ONE YEAR from the date of purchase, this product is warranted against any defects in material or workmanship. defective product will receive free repair or replacement if repair is unavailable. -
Page 27: Safety Symbols
Safety Symbols The information listed below should be read and understood by the operator. This information is given to protect the user while operating and storing the air compressor. We utilize the symbols below to allow the reader to recognize important information about their safety. -
Page 28: Glossary
Important Safety Instructions & Guidelines Risk of Breathing Avoid using the air compressor in confined areas. Always have adequate space (12 inches) on all sides of the air compressor. Also keep children, pets, and others out of the area of operation. This air compressor does not provide breathable air for anyone or _:74o,._,hm!_.,2.,. -
Page 29: Parts & Features
Parts & Features See figures below for reference. Quick Connect The air pressure coming from the air tank is controlled by the Offers a quick release feature for regulator. To increase the pressure turn the knob clockwise and to attaching and removing the air hose. -
Page 30: Installation & Assembly
Installation & Assembly The air compressor should be turned off, unplugged from the power source, the air bled from the tank and the unit Grounded allowed time to cool before any maintenance is performed. Outlet Personal injuries could occur from moving parts, electrical sources, compressed air or hot surfaces. -
Page 31: Operating Procedures
Operating Procedures Daily Start-Up Procedures 6. Plug the power cord into the proper receptacle. 1. Set the Auto/Off lever to the Off position. 7. Turn the Auto/Off lever to the Auto position and the 2. inspect the air compressor, air hose, and any compressor will start and build air pressure in the accessories/tools being used for damage or obstruction. -
Page 32: Maintenance
Maintenance NOTE: Any service procedure not covered in the Before each use items to Check/Change maintenance schedule should be performed or daily qualified service personnel. Check Tank Safety Valve Overall Unit Visual Check The air compressor should be turned off, unplugged Check Air Filter from the power source, air bled from the tank and Drain Tank... - Page 33 Troubleshooting Guide The air compressor should be turned off and unplugged from the power source before any maintenance is performed as well as the air bled from the tank and the unit allowed time to cool. Personal injuries could occur from moving parts, electrical sources, compressed air, or hot surfaces. PROBLEM POSSIBLE CORRECTION...
-
Page 34: Parts List
Air Compressor Model 16478 Parts List 20-- / 57_\ 32-- 33 --, 37 -/... -
Page 35: Screw, M 6X 1.0Ram X 30Ram
Model 16478 Compressor Parts List Part No. Description Quantity Ref. Part No. L Ref. Description Quantity J Screw, M 6X 1.0ram X 30ram Screw,Hex FlangeHead,M8 x 1.25x 50 mm 3 Washer, L ockM6 Washer, FlatM8 E100227 Head,Cylinder E101346 Plate,MotorMounting 1&3 Gasket, H eadtoValvePlate Tank Assembly,4 gallonSS L14SHPS E100228 Plate,Valve... -
Page 37: Sears Brands Management
Manual de CRRFTSMRll ° COMPRESOR DE AIRE 15.1 LITROS De impulsi6n directa, iubricada con aceite # de Modelo 921.164780 PRECAUCION: • Instrucciones y pautas de Antes de usar seguridad importantes el producto, lea este manual y siga • Instalaci6n y operacion sus reglas e instrucciones •... - Page 38 Diagn6stico y correcci6n de fallas ..........Lista de partes ............GAFIANTiA UN AKIO DE GAFIANTiA DE GANATiA DE CRAFTSMAN DURANTE UN ANO desde la fecha de compra, este producto tiene garantia contra defectos en los materiales o en la fabricaci6n. Los productos defectuosos...
- Page 39 Simboios comunes de seguridad El operador debe leer y entender la informaci6n descrita a continuaci6n. Esta informaci6n se ofrece para proteger al usuario al operar y almacenar el compresor de aire. Los simbolos siguientes son los que se utilizan para indicar al lector informaci6n que es importante para su seguridad.
- Page 40 lnstrucciones y pautas de seguridad importantes Evite utilizar el compresor de aire en _reas encerradas. Siempre tenga un espacio Riesgo para la libre adecuado (30 cm.) en todos los lados del compresor. Tambi6n mantenga fuera respiraci6n del _rea de operaci6n a las mascotas, nifios y otras personas. Este compresor de aire no provee aire que pueda ser respirado ni empleado con un dispositivo respiratorio auxiliar.
- Page 41 Partes y caracteristicas Como referencia, yea las figuras abajo. La presi6n del aire que sale del tanque es controlada por el Permite conectar y desconectar regulador. Para aumentar la presi6n, gire la perilla en direcci6n de | I Conector de acoplamiento r_pido r_pidamente la manguera del aire.
- Page 42 Instalaci6n y ensamblaje con terminal de tierra (ver la figura a continuaci6n). clavija debe enchufarse en un tomacorriente instalado y Antes de darle cualquier tipo de mantenimiento puesto a tierra segQn las normas locales. Hable con un compresor de aire, se debe apagar y desconectar de la electricista o agente de servicio calificado...
- Page 43 Proced imientos de operaci6n Procedimiento diario de arranque Enchufe el cable de corriente en un tomacorriente 1. Ponga el interruptor Auto/Off en la posici6n de apagado (Off). apropiado. 2. Vedfique que el compresor deJ aire, la manguera de Mueva el interruptor Auto/Off a la posici6n de encendido aire y todos los accesorios/herramientas utilizados, no (Auto);...
- Page 44 Mantenimiento NOTA: Cualquier procedimiento de servicio que no est6 Asuntos para verificadcam- Antes de cada uso cubierto en el programa de mantenimiento que sigue deber_ biar o diariarnente set efectuado el personal de servicio calificado. Revisar la v_lvula de seguridad del tanque Antes de dar mantenimiento al equipo, se debe apagar Revisar visualmente el aspecto...
- Page 45 Diagn6stico y correcci6n de fallas Antes de dar mantenimiento al equipo, se debe apagar y desconectar del tomacorriente, como purgar el aire del tanque y permitir que la unidad se enfde. Las partes en movimiento, las fuentes el6ctricas, el aire comprimido y las superficies calientes pueden provocar lesiones. PROBLEMA POSiBLE CORRECCION Fuga de aire en la v_lvula de...
- Page 46 Modeio 16478 Compresor de aire Lista de ias piezas /8-- 2o _I VIEW: A - A 32 --_ 33 _, _'\, 37 _...
- Page 47 16478 Compresor de aire Modeio Lista de ias piezas Cantidad Ref. Juego Pieza Descripci6n Cantidad ] L Ref. Juego Pieza Descripci6n Tornillo,M6 X 1.0 mmX 30 mm Conjuntode tanque,4 galonesSS L14SHPS Arandelade frenoM6 E100227 Culatade cilindro 1 & 3 Juntade culata,placade v_lvula E100228 Placade v_lvula E101208 Wlvula de seguridad,puertosuperior...
- Page 48 Your Home For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter made it, no matter who sold For the replacement parts, accessories owner's manuals that you need to do-it-yourself. For Sears professional installation of home appliances...
