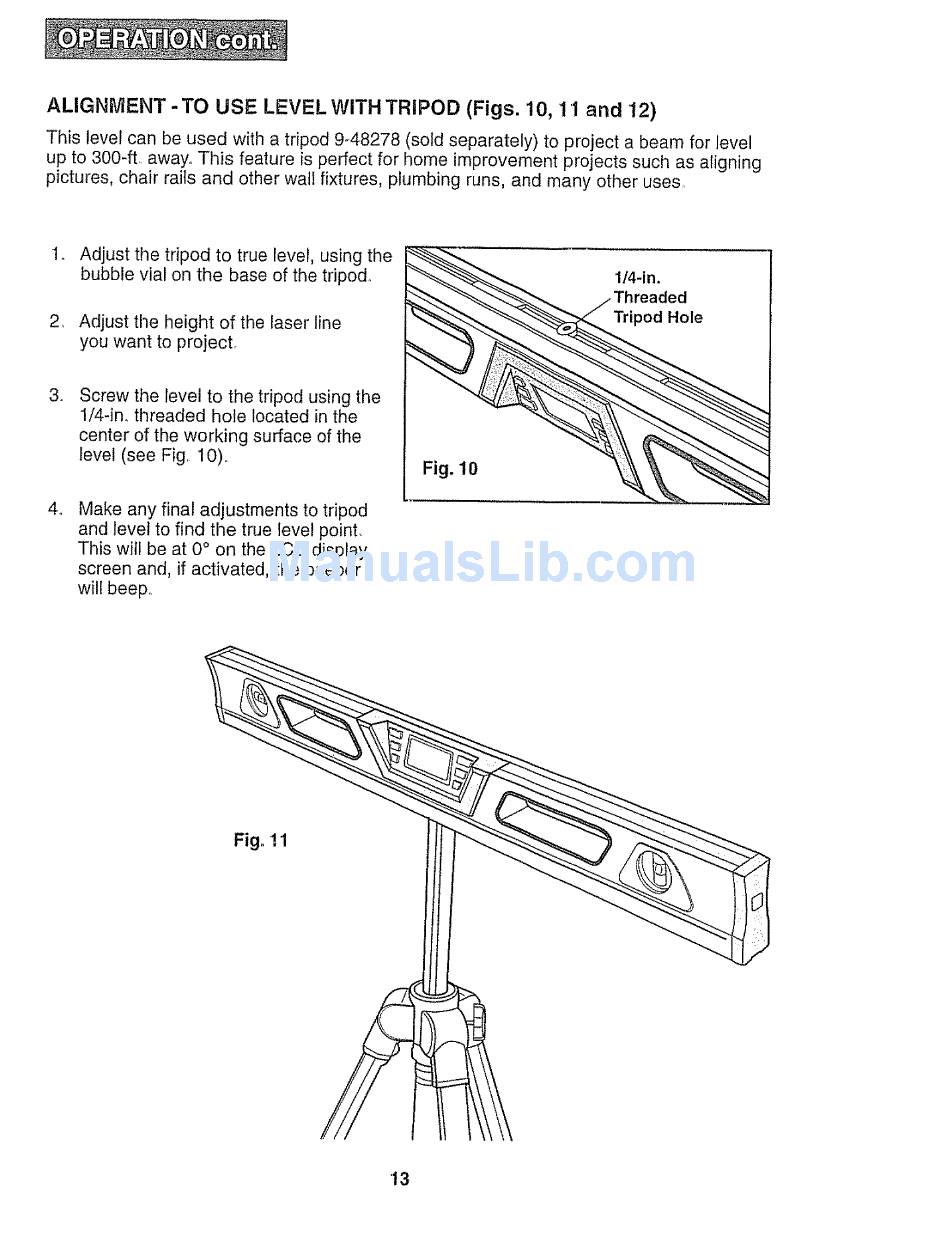

ALIGNMENT- TO USE LEVEL WITH TRIPOD (Figs. 10, 1 1 and 12)
This level can be used with a tripod 9-48278 (sold separately) to project a beam for level
up to 300-fL away This feature is perfect for home improvement projects such as aligning
pictures, chair rails and other wai! fixtures, plumbing runs, and many other uses
2_
3_
4_
Adjust the tripod to true level, using the
bubble vial on the base of the tripod.
Adjust the height of the laser line
you want to project_
Screw the level to the tripod using the
1/4-in. threaded hole located in the
center of the working surface of the
level (see Fig, 10)._
Make any final adjustments to tripod
and level to find the true level point.
This will be at 0 ° on the LCD display
screen and, if activated, the beeper
will beep,.
Fig. 10
1/4-in,
Tripod Hole
Fig. ! 1
