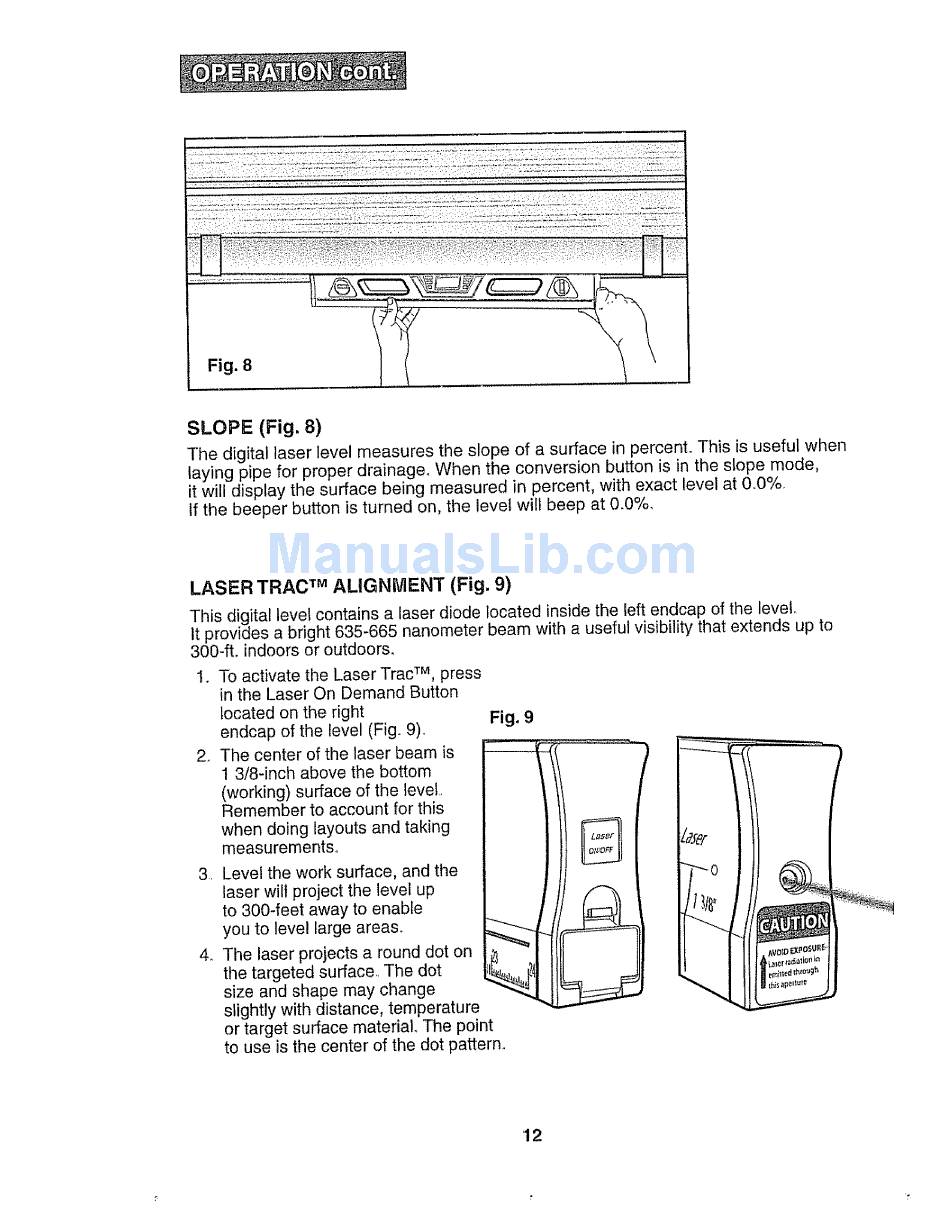

SLOPE
(Fig. 8)
The digital laser level measures the slope of a surface in percenL This is useful when
laying pipe for proper drainage. When the conversion button is in the slope mode,
it will display the surface being measured in percent, with exact level at 0°0%
tf the beeper button is turned on, the level wilt beep at 0.0%_
LASER TRAC "rMALIGNMENT (Fig. 9)
This digital level contains a laser diode located inside the left endcap of the level.
It provides a bright 635_665 nanometer beam with a useful visibility that extends up to
3004t. indoors or outdoors.
Iv
Am
.
4_
To activate the Laser Trac TM, press
in the Laser On Demand Button
located on the right
endcap of the level (Fig. 9).
The center of the laser beam is
1 3/8-inch above the bottom
(working) surface of the level.,
Remember to account for this
when doing layouts and taking
measurements_
Level the work surface, and the
laser will project the level up
to 300-feet away to enable
you to level large areas.
The laser projects a round dot on
the targeted surface.. The dot
size and shape may change
slightly with distance, temperature
or target surface material. The point
to use is the center of the dot pattern_
Fig, 9
