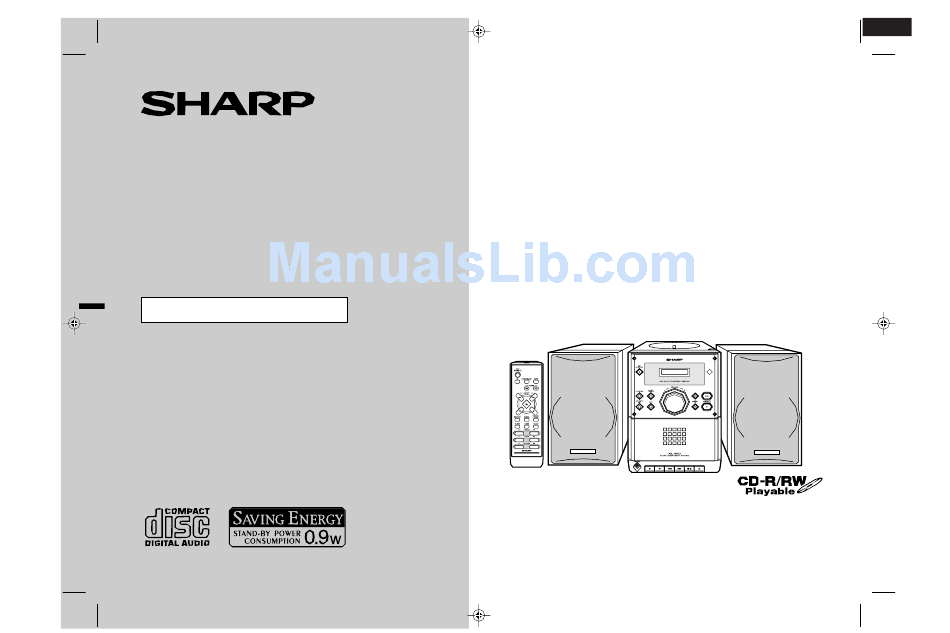

MICRO COMPONENT SYSTEM
MODEL
XL-S10H

OPERATION MANUAL

Thank you for purchasing this SHARP product.
To obtain the best performance from this product,
please read this manual carefully. It will guide you in
operating your SHARP product.
XL-S10H Micro Component System consisting of XL-
S10H (main unit) and CP-S10H (speaker system).
1
XL-S10H(A) TINSZA005SJZZ

Advertisement

Table of Contents
loading

Related Manuals for Sharp XL-S10H

Summary of Contents for Sharp XL-S10H

  • Page 1: Operation Manual

    XL-S10H(A) TINSZA005SJZZ Thank you for purchasing this SHARP product. To obtain the best performance from this product, MICRO COMPONENT SYSTEM please read this manual carefully. It will guide you in operating your SHARP product. XL-S10H Micro Component System consisting of XL- MODEL S10H (main unit) and CP-S10H (speaker system).
  • Page 2 Copyright may exist in material you wish to record. Copying or broadcasting such material without permission of the relevant lic- ensees or owners of the copyright is prohibited by law. SHARP is not in a position to authorise the copying or broadcasting of copy- right materials and nothing in this OPERATION MANUAL should be implied as giving that authority.
  • Page 3 Accessories XL-S10H Please confirm that the following accessories are included. Remote control 1 "AAA" size battery (UM-4, FM/AM loop aerial 1 R03, HP-16 or similar) 2 Note: Only the above accessories are included. 03/11/12 XL-S10H_A_1.fm TINSZA005SJZZ...

  • Page 4: Table Of Contents

    Contents XL-S10H Page Page " General Information " Tape Playback Precautions ......... . 5 Listening to a cassette tape .

  • Page 5: Precautions

    (home computers, facsimiles, etc.) which accident causing damage. SHARP will not be held responsible generate electrical noise. for any damage resulting from use of this unit with a voltage other than that which is specified.

  • Page 6: Controls And Indicators

    Controls and indicators XL-S10H Reference page 1. CD Compartment ....... . . 12 2.
  • Page 7 XL-S10H(A) TINSZA005SJZZ XL-S10H 1. Full-Range Speaker 2. Speaker Wire Note: The speaker grilles are not removable. Reference page 3. Remote Control Transmitter ......9 4.

  • Page 8: System Connections

    System connections XL-S10H Make sure to unplug the AC power lead before any connections. FM aerial AM loop aerial " Aerial connection Connect the FM/AM loop aerial to the ANTENNA socket. Position the FM aerial wire and rotate the AM loop aerial for opti- mum reception.

  • Page 9: Remote Control

    XL-S10H " Connecting the AC power lead " To turn the power on After checking all the connections have been made correctly, plug Press the ON/STAND-BY button to turn the power on. the AC power lead of this unit into the wall socket. To set the unit to the stand-by mode: Note: Press the ON/STAND-BY button again.

  • Page 10: Sound Control

    Sound control XL-S10H " Adjusting the volume Main unit operation: When the VOLUME control is turned clockwise, the volume will increase. When it is turned anti-clockwise, the volume will decrease. Remote control operation: Press the VOLUME + button to increase the volume and the VOL- UME - button to decrease the volume.

  • Page 11: Setting The Clock

    Setting the clock XL-S10H Within 1 minute, press the PRESET ( ) button to ad- just the hour and then press the MEMORY button. When the 12-hour display is selected, "AM" will change auto- matically to "PM". Within 1 minute, press the PRESET ( ) button to ad- This may be operated only with the remote control.

  • Page 12: Listening To A Cd

    Listening to a CD XL-S10H This system can play audio CD-R and CD-RW discs just like CD Press the ON/STAND-BY button to turn the power on. discs, but cannot perform recording. Playback of audio CD-R or CD-RW may not be performed depend- Press the FUNCTION button until "Cd dISC"...
  • Page 13 XL-S10H " To locate the beginning of a track To interrupt playback: Main unit operation: To move to the beginning of the next track: Press the button. To resume playback from the same point, press Press the button for less than 0.5 seconds during playback. button again.
  • Page 14 XL-S10H Listening to a CD (continued) " Repeat or Random play Notes: ! The random play will stop automatically when all tracks are You can select one of the CD playback mode; "Repeat play", "Ran- played once. (The same track will not be played back twice.) dom play"...

  • Page 15: Programmed Play

    Programmed play XL-S10H You can choose up to 32 selections for playback in the order you Whilst in the stop mode, press the button to se- like. lect the desired track. Selected track number Press the MEMORY (MEMORY/SET) button to save the track number.

  • Page 16: Listening To The Radio

    Listening to the radio XL-S10H Press the ON/STAND-BY button to turn the power on. Press the FUNCTION button until "FM" or "AM" appears on the display. When operating with the remote control, press the TUNER (BAND) button to select "FM" or "AM". Press the TUNING ( ) button to tune in to the desired station.

  • Page 17: Listening To The Memorised Station

    Listening to the memorised station XL-S10H " Memorising a station " To recall a memorised station You can store 40 AM and FM stations in memory and recall them at Press the PRESET ( ) button for less than 0.5 seconds to the push of a button.

  • Page 18: Listening To A Cassette Tape

    Listening to a cassette tape XL-S10H Before playback: Press the ON/STAND-BY button to turn the power on. ! For playback, use normal or low-noise tapes for the best sound. (Metal or CrO tapes are not rec- Press the FUNCTION button until "TAPE" appears on the ommended.) display.

  • Page 19: Recording To A Cassette Tape

    Press the ON/STAND-BY button to turn the power on. ! SHARP is not liable for damage or loss of your recording arising from malfunction of this unit. Press the FUNCTION button until "Cd dISC" appears on the ! The volume and sound controls can be adjusted with no effect on display.
  • Page 20 XL-S10H Recording to a cassette tape (continued) " Recording from the radio " Erasing a recorded tape 1. Load the tape to be erased into the cassette compartment with Tune in to the desired station (see page 16). the side to be erased facing toward you. 2.

  • Page 21: Timer And Sleep Operation

    Timer and sleep operation XL-S10H " Timer playback This may be operated only with the remote control. Timer playback: Press the ON/STAND-BY button to turn the power on. The unit turns on and plays the desired source (CD, tuner) at the Press the CD or TUNER (BAND) button to select the de- preset time.

  • Page 22: Timer And Sleep Operation

    XL-S10H Timer and sleep operation (continued) To cancel the sleep operation: When the preset time is reached, playback will start. Press the ON/STAND-BY button whilst "SLEEP" is indicated. To cancel the sleep operation without setting the system to the The volume will increase gradually until it reaches the volume stand-by mode, press the SLEEP button until "OFF"...

  • Page 23: Troubleshooting Chart

    ! Is the unit placed near the TV or comput- The radio makes un- If something is wrong with this product, check the following before usual noises contin- calling your authorised SHARP dealer or service centre. uously. ! Is the FM or AM aerial placed properly? " General Move the aerial away from the AC power lead if located near.
  • Page 24 XL-S10H Troubleshooting chart (continued) " If trouble occurs " Condensation When this product is subjected to strong external interference Sudden temperature changes, storage or operation in an extremely (mechanical shock, excessive static electricity, abnormal supply humid environment may cause condensation inside the cabinet (CD voltage due to lightning, etc.) or if it is operated incorrectly, it may pickup, tape heads, etc.) or on the transmitter on the remote control.

  • Page 25: Maintenance

    Maintenance XL-S10H " Cleaning the CD pickup lens " Care of compact discs Compact discs are fairly resistant to damage, however mistracking Do not touch the laser pickup lens. If fin- can occur due to an accumulation of dirt on the disc surface. Follow gerprints or dust accumulate on the the guidelines below for maximum enjoyment from your CD collec- pickup, clean it gently with a dry cotton...

  • Page 26: Specifications

    Specifications XL-S10H " CD player As part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product Type Compact disc player improvement without prior notice. The performance specification fig- ures indicated are nominal values of production units. There may be...

  • Page 27: Warranty

    Consumer Electronic Products Congratulations on Your Purchase! This Sharp product is warranted against faults in materials and manufacture for a period of twelve (12) months from the date of original purchase. If service is required during the warranty period, please contact your nearest Sharp Approved Service Centre.
  • Page 28 IMPORTANT DO NOT RETURN THIS PAGE TO SHARP For your reference, please enter the particulars of your purchase below and retain, with your purchase documentation. Model No. Serial No. Date of Purchase Retailer FOR LOCATION ENQUIRIES WITHIN FOR PRODUCTS PURCHASED IN...
